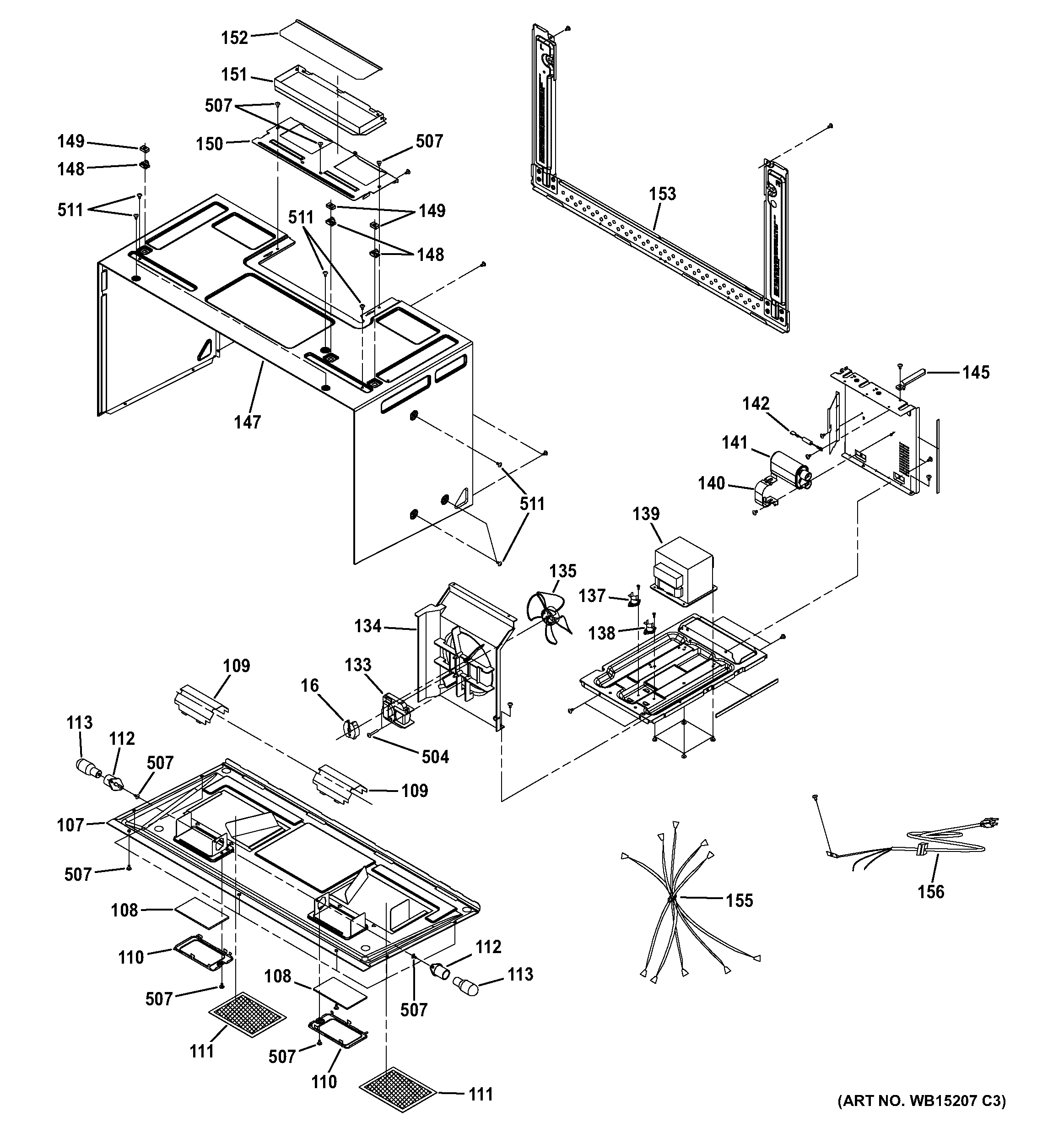

RVM5160DH2BB INTERIOR PARTS

RVM5160DH2BB INTERIOR PARTS

Written by

in

RVM5160DH2BB INTERIOR PARTS

Products

PositionProduct
16CAP
107WB56X11006 GE Oven Base Plate
108LAMP GLASS
109LAMP COVER
110WB06X10928 GE Oven Glass Bracket
111WB06X10608 GE Replacement Grease Filter
112WB06X10929 GE Oven Lamp Socket
113WB25X10030 GE Oven 40W Incandescent Lamp
133WB26X28944 GE Range Vent Motor
134WB39X10042 GE Fan Guide
135WB06X10860 GE Oven Fan
137WB27X11212 GE Oven Thermostat 120/240
138WB27X11213 GE Oven Thermostat
139WB20X10067 GE Oven High Voltage Transformer
140WB06X10933 GE Bracket
141WB27X11214 GE Oven High Voltage Capacitor
142WB26X28935 GE Microwave Diode
145WB06X10936 GE Oven Spacer
147WB56X11008 GE Oven Outer Case
148WB01X22640 GE Oven Nut Assembly
150VENT MOTOR COVER
151WB06X10938 GE Oven Damper Bracket
153WB56X11009 GE Oven Mounting Plate
155WB18X10523 GE Microwave Main Harness
156WB18X27449 GE Oven Power Cord Assembly
504WB01X10434 GE Screw ST4 20TBHC
507SCREW ST48TB
511WB01X10430 GE Oven ST4 12 Screw
