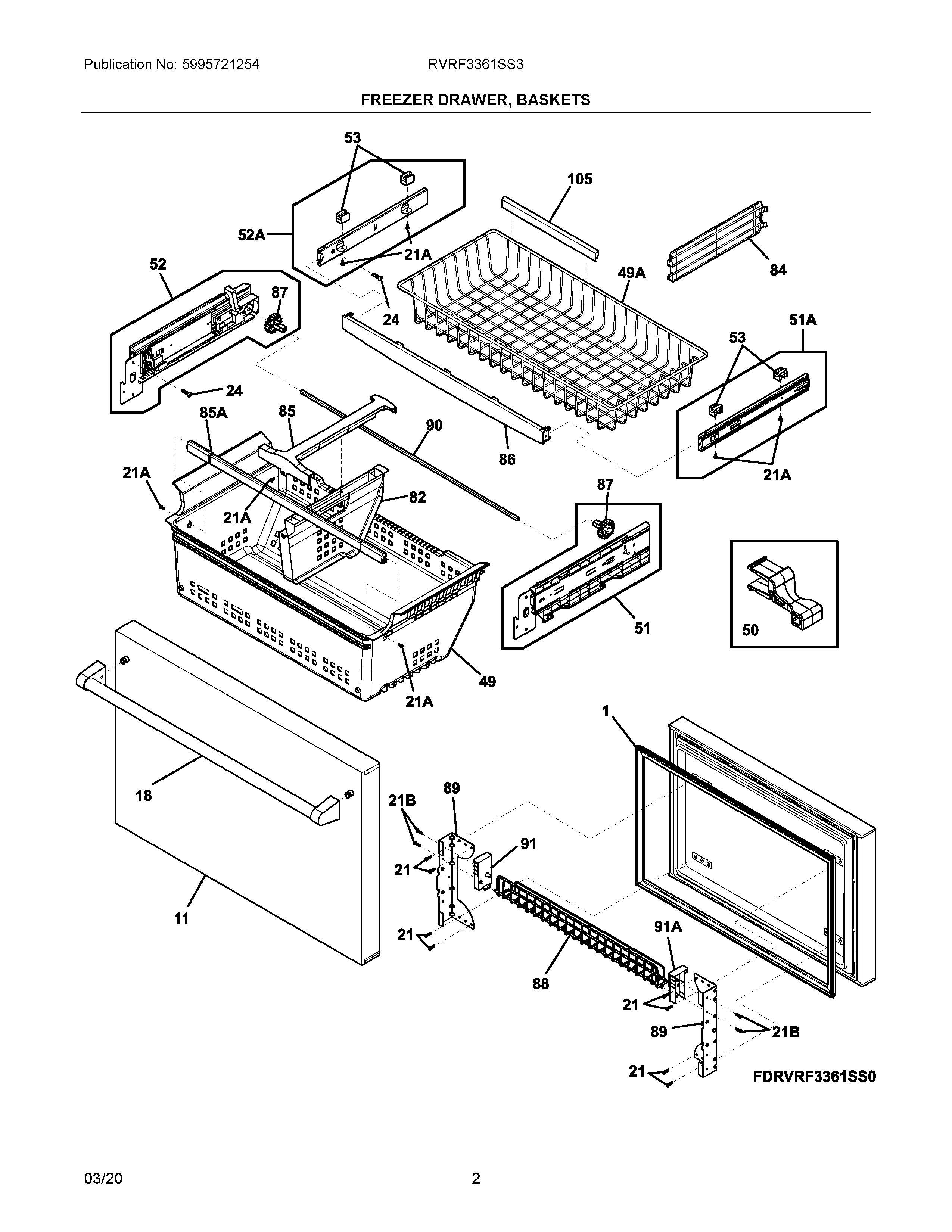

RVRF3361SS3 02 – FREEZER DRAWER, BASKETS

RVRF3361SS3 02 – FREEZER DRAWER, BASKETS

Written by

in

RVRF3361SS3 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIASTANDOFF-STUD, HANDLE MTG., ON DOOR
NIA241979601 Frigidaire Refrigerator Bumper
NIAA242039701 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11241987975 Frigidaire Refrigerator Door
18HANDLE ASSEMBLY, FRZ DRAWER, STAINLESS, W/ENDCAPS
21241690602 Frigidaire Refrigerator Screw
21B242015001 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
49ABASKET-FRZR, UPPER
495304526200 Frigidaire Refrigerator Basket
505304501271 Frigidaire Shelf Clip
515304507977 Frigidaire Refrigerator Slide Assembly
51A5304508094 Frigidaire Refrigerator Assembly Slide
52A5304508095 Frigidaire Refrigerator Slide Assembly
525304507976 Frigidaire Refrigerator Assembly-Slide
535303918801 Frigidaire Refrigerator Retainer Set of 4
825304507996 Frigidaire Refrigerator Divider
84241780907 Frigidaire Refrigerator Divider
85242139401 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
875304507999 Frigidaire Refrigerator Pinion
88241824009 Frigidaire Refrigerator Tilt Out Rack
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
91241824102 Frigidaire Refrigerator Door Rack Cap
91A241824101 Frigidaire Refrigerator Cap
105242116801 Frigidaire Refrigerator Trim-Basket
