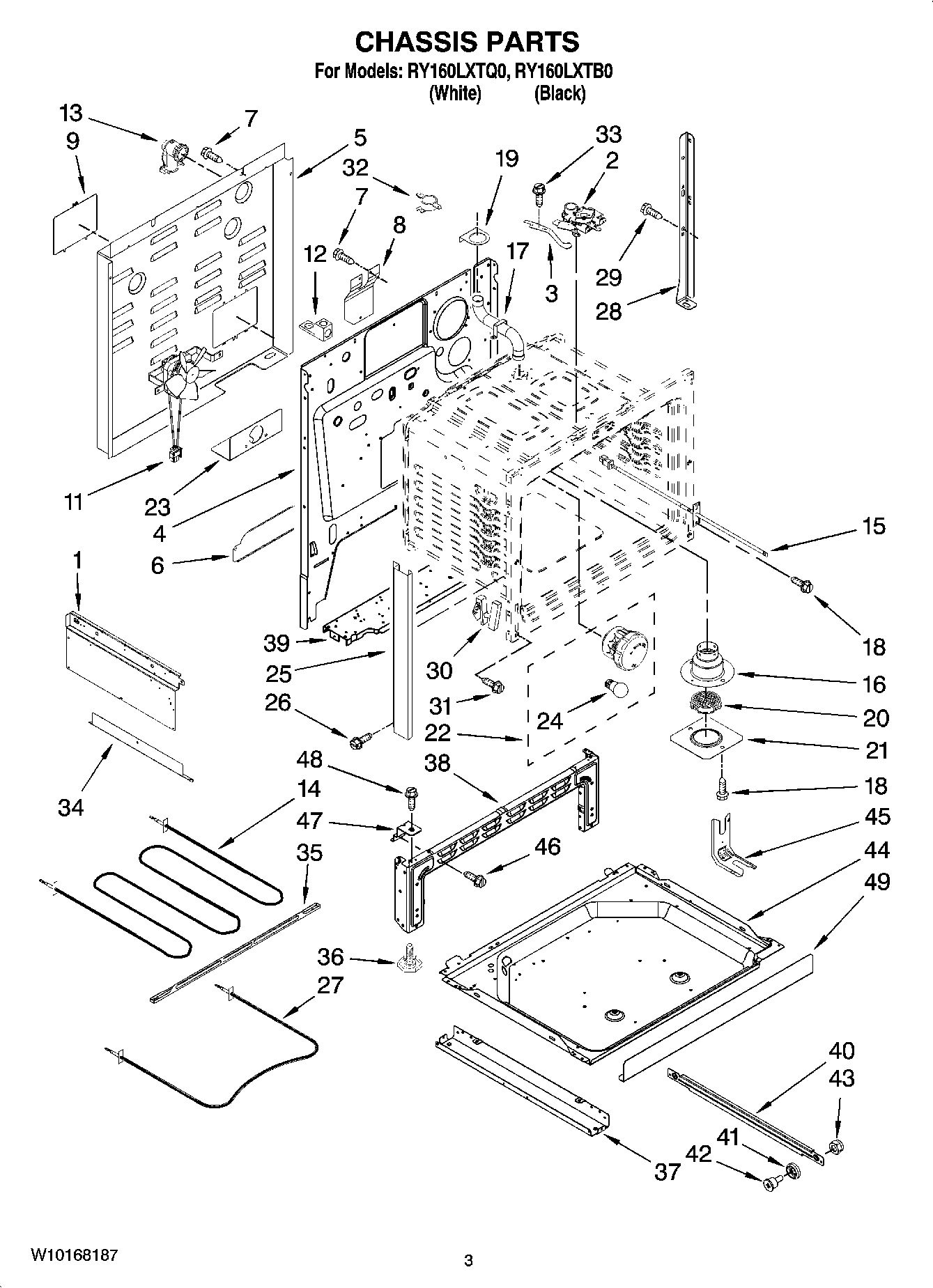

RY160LXTB0 03 – CHASSIS PARTS

Products

Position	Product
1	Panel, Shield (Left)
1	2618F206-51 Whirlpool Panel
2	Latch Assembly
3	Lever, Latch (Gray)
3	Lever, Latch
4	Main Back
5	4005F810-51 Whirlpool Access Cover
6	Extension, Back
7	WP90767 Whirlpool Screw
8	Insulator, Cord
9	Panel, Access
11	WPW10586440 Whirlpool Blower Fan
12	WPW10281322 Whirlpool Connector
13	Connector, Cable
14	WP7406P218-60 Whirlpool Broil Element
15	12001656 Whirlpool Range Oven Temperature Sensor
16	Tube, Vent Lower
17	Tube, Vent Upper
19	Holder, Vent Tube
20	Smoke Eliminator
21	Plate, Smoke Elm.
22	WP7407P182-60 Whirlpool Lamp
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	WP3608F138-71 Whirlpool Side Trim Assembly
25	WP3608F138-70 Whirlpool Side Trim
27	WPW10310274 Whirlpool Bake Element
28	Support, Oven Rear
29	WP7101P434-60 Whirlpool Screw
30	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
31	Screw, Hinge (4)
32	WP7450P034-60 Whirlpool Limit Switch
33	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
34	Extention, Shield
35	Support, Element
36	WP74010805 Whirlpool Screw
37	4020W035-80 Whirlpool Bottom PE
38	Pedestal, Front
39	Support
40	Runner, Drawer (2)
41	WP74004078 Whirlpool Door Roller
42	Shaft, Roller (2)
43	74005230 Whirlpool Oven Lock Nut (8-32)
44	3804F231-51 Whirlpool Retainer
45	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
46	Screw
47	Support, Oven Bottom
48	WP74003976 Whirlpool Screw
49	Insulation, Wrap
49	Insulation, Oven Bottom
49	Insulation, Back
49	Cover, Front
49	Insulation
