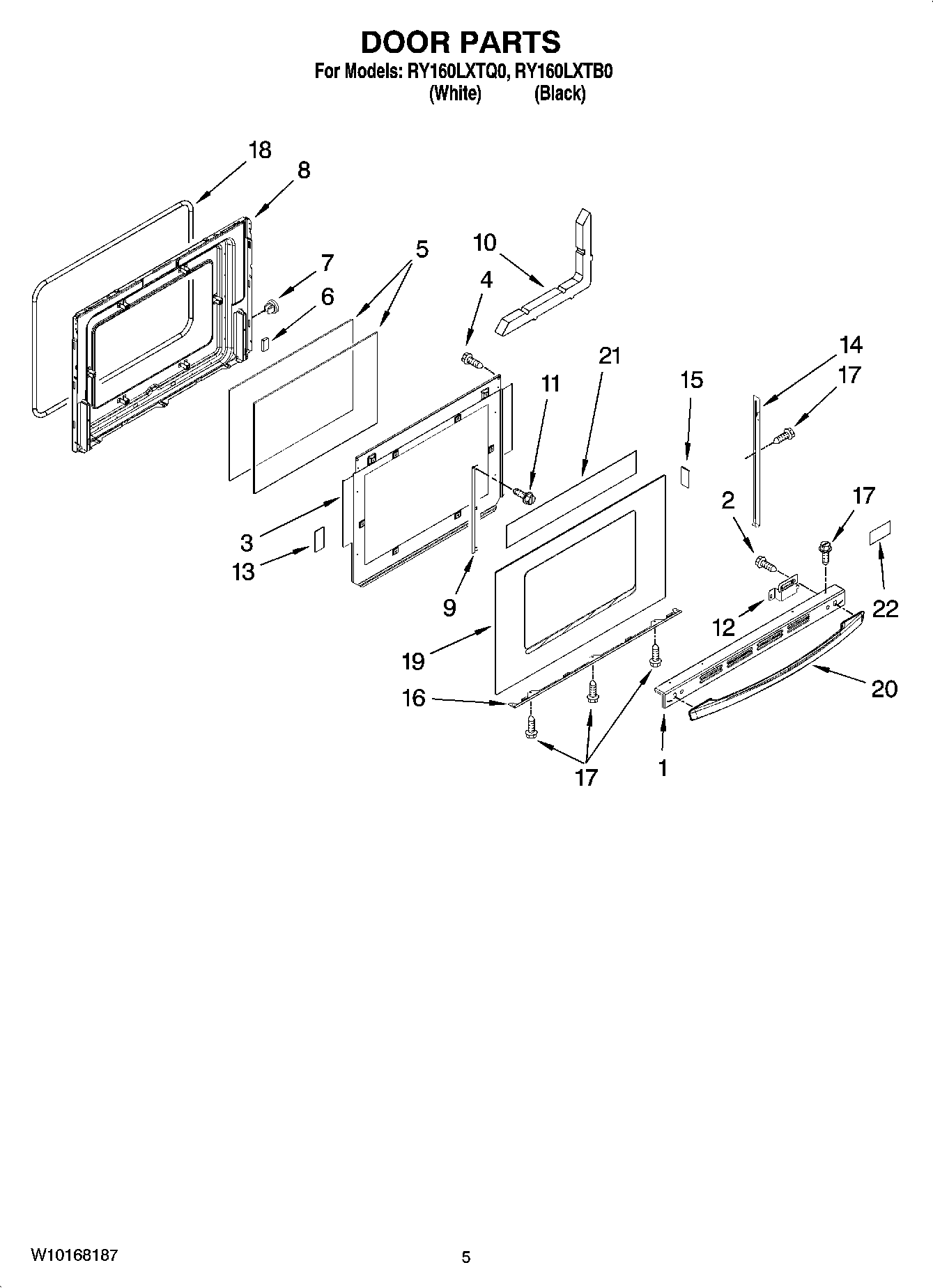

RY160LXTB0 04 – DOOR PARTS

Products

Position	Product
1	WP3608F141-71 Whirlpool Door Trim
1	Trim, Door Top (Black)
2	WP74006515 Whirlpool Washer Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Liner, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F831-45 Whirlpool Bracket Assembly
12	3801F832-45 Whirlpool Bracket
13	Tape, White
14	WP3608F117-71 Whirlpool Door Trim
14	WP3608F116-71 Whirlpool Door Trim
14	WP3608F117-70 Whirlpool Door Trim
14	WP3608F116-70 Whirlpool Door Trim
15	Tape, Double Sided (White)
15	WP74009025 Whirlpool Double Sided Tape
16	WP3807F708-71 Whirlpool Support
16	Trim, Door Bottom (Black)
17	W10828565 Whirlpool Screw
17	WP98008544 Whirlpool Screw Assembly
18	Seal, Door
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
20	Handle, Door (Black)
20	Handle, Door (White)
21	WPL 74003664
22	BADGE
