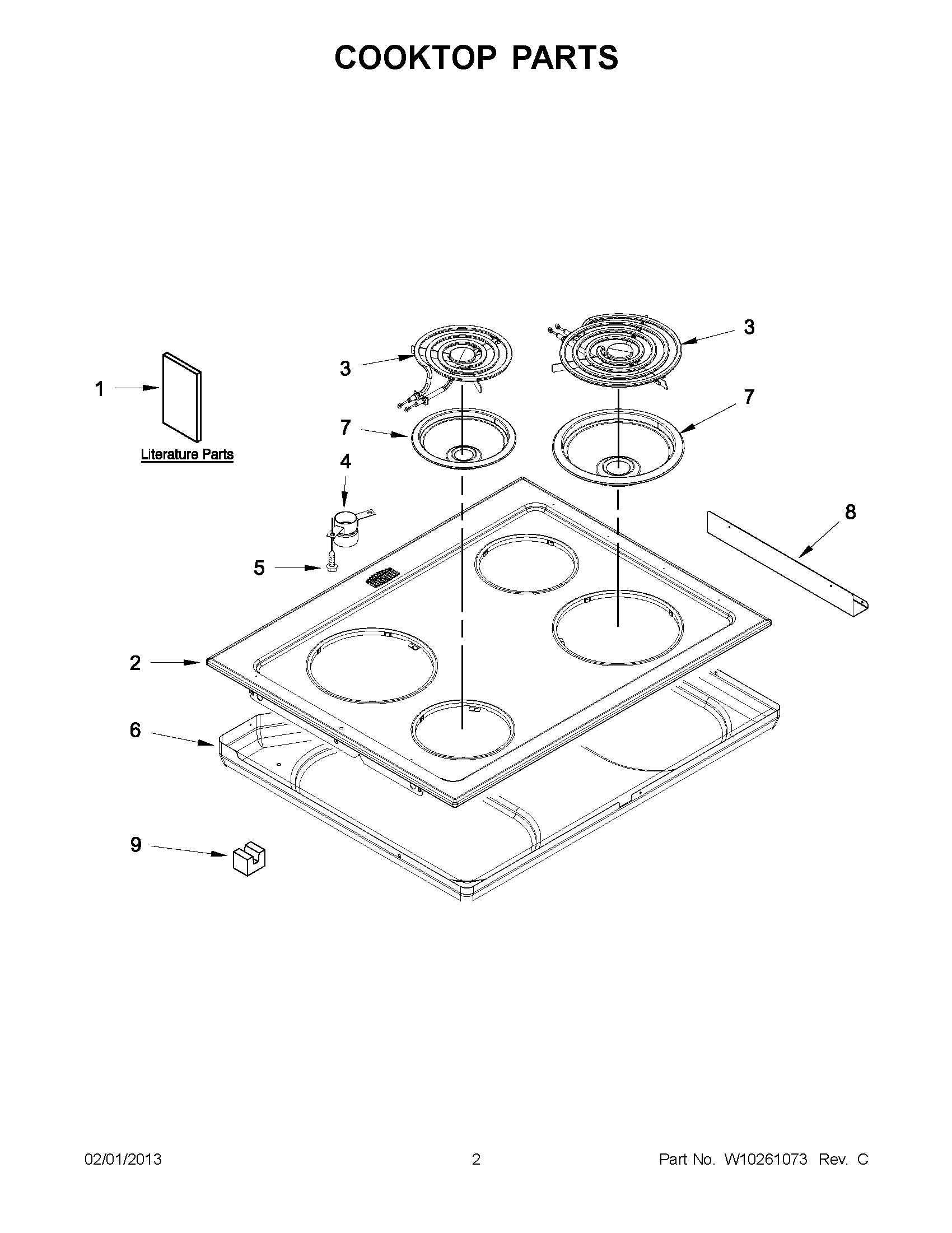

RY160LXTB02 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	OWNERS MANUAL
1	INSTALL, INSTRUCT
1	Wiring Diagram
2	Cooktop (Black)
2	Cooktop (White)
3	WPW10345407 Whirlpool Surface Element
3	W10345409 Whirlpool Surface Element
4	Tube, Vent Upper
5	SCREW
6	Bottom, Burner Box
7	Bowl, Drip (Chr 6“)
7	Bowl, Drip (Chr 8“)
8	Bracket, Burner Box
9	KIT, HARDWARE
