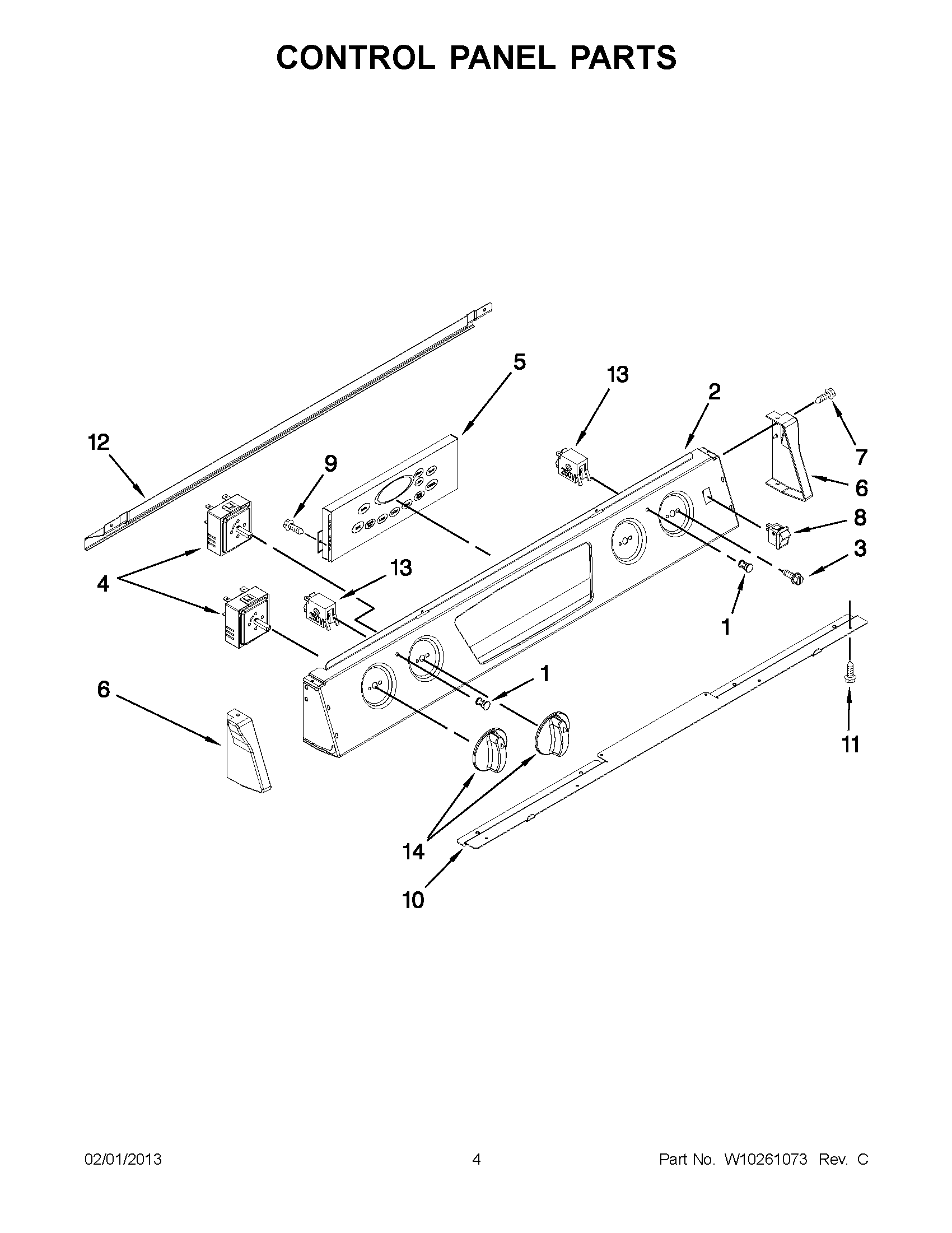

RY160LXTB02 02 – CONTROL PANEL PARTSadmin2025-04-26T11:19:57+00:00RY160LXTB02 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Lens |
| 2 | Panel, Control (Black) |
| 2 | Panel, Control (White) |
| 3 | WPL 7101P30960 |
| 4 | SWITCH, INFINITE (RIGHT FRONT) |
| 4 | SWITCH, INFINITE (RIGHT REAR) |
| 5 | W10769823 Whirlpool Oven Electronic Control Board + Core |
| 6 | END CAP (WHITE (RIGHT HAND)) |
| 6 | END CAP (WHITE (LEFT HAND)) |
| 6 | END CAP (LEFT) |
| 6 | END CAP (RIGHT) |
| 7 | SCREW (BLACK) |
| 7 | SCREW (WHITE) |
| 8 | Switch, Rocker |
| 8 | Switch, Rocker (White) |
| 9 | Screw |
| 10 | Support, Control Panel |
| 11 | SCREW |
| 12 | Shield, Vent (Black) |
| 12 | SHIELD, VENT WHITE |
| 13 | Light, Indicator |
| 14 | Knob (4) |
| 14 | KNOB (WHITE) |
