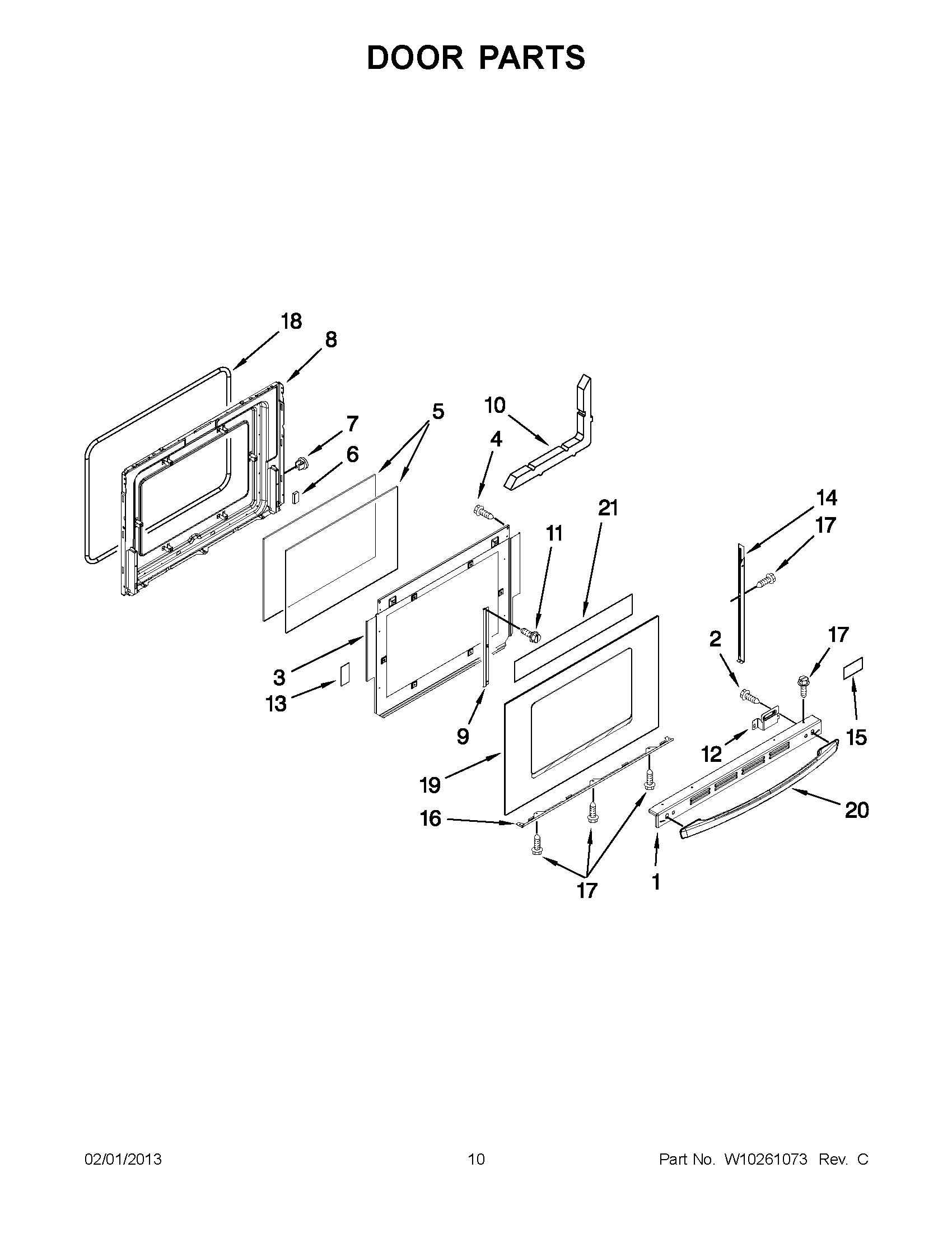

RY160LXTB02 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
1	Trim, Door Top
2	SCREW
3	Baffel, Retainer
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Tape, White
14	Trim, Door Side (Right)
14	Trim, Door Side (Left)
14	TRIM, DOOR SIDE (BLACK, LEFT)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
15	W11178521 Whirlpool Dishwasher Nameplate
16	Trim, Door Bottom
16	Trim, Door Bottom
17	SCREW (BLACK)
17	SCREW (WHITE)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
19	PANEL, OUTER DOOR (BLACK)
20	Handle, Door
20	Handle, Door (White)
21	Tape, Foil
