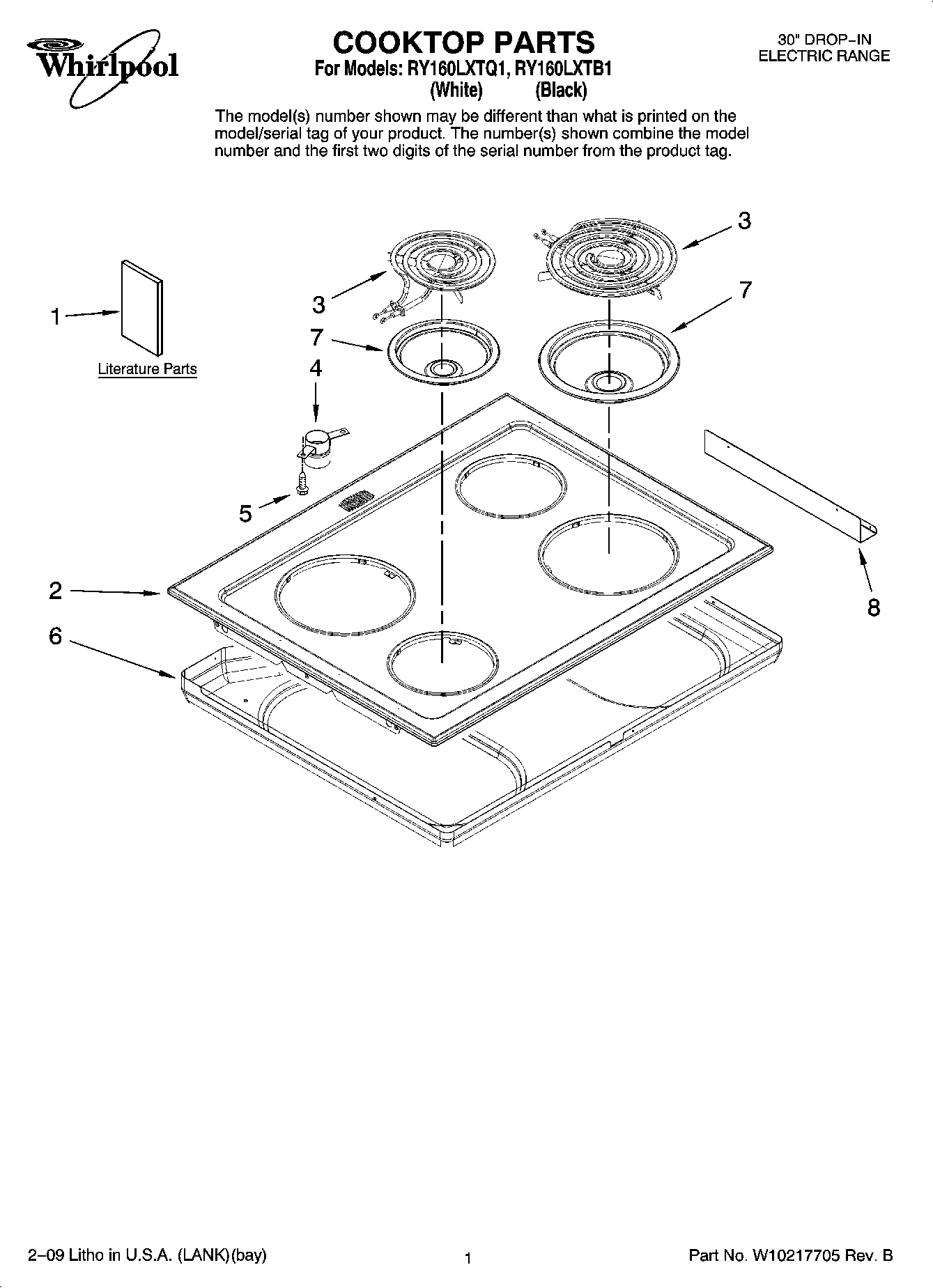

RY160LXTB1 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
1	Use & Care Guide
2	Cooktop (White)
2	Cooktop (Black)
3	WPW10345407 Whirlpool Surface Element
3	WP9761346 Whirlpool Stove Surface Burner Element
4	Tube, Vent Upper
5	WP7101P498-60 Whirlpool Screw
6	Bottom, Burner Box
7	DRIP BOWL 8" W/HOLE CHROME
7	WPW10196406 Whirlpool 6" Chrome Drip Bowl
8	3801F881-51 Whirlpool Bracket
