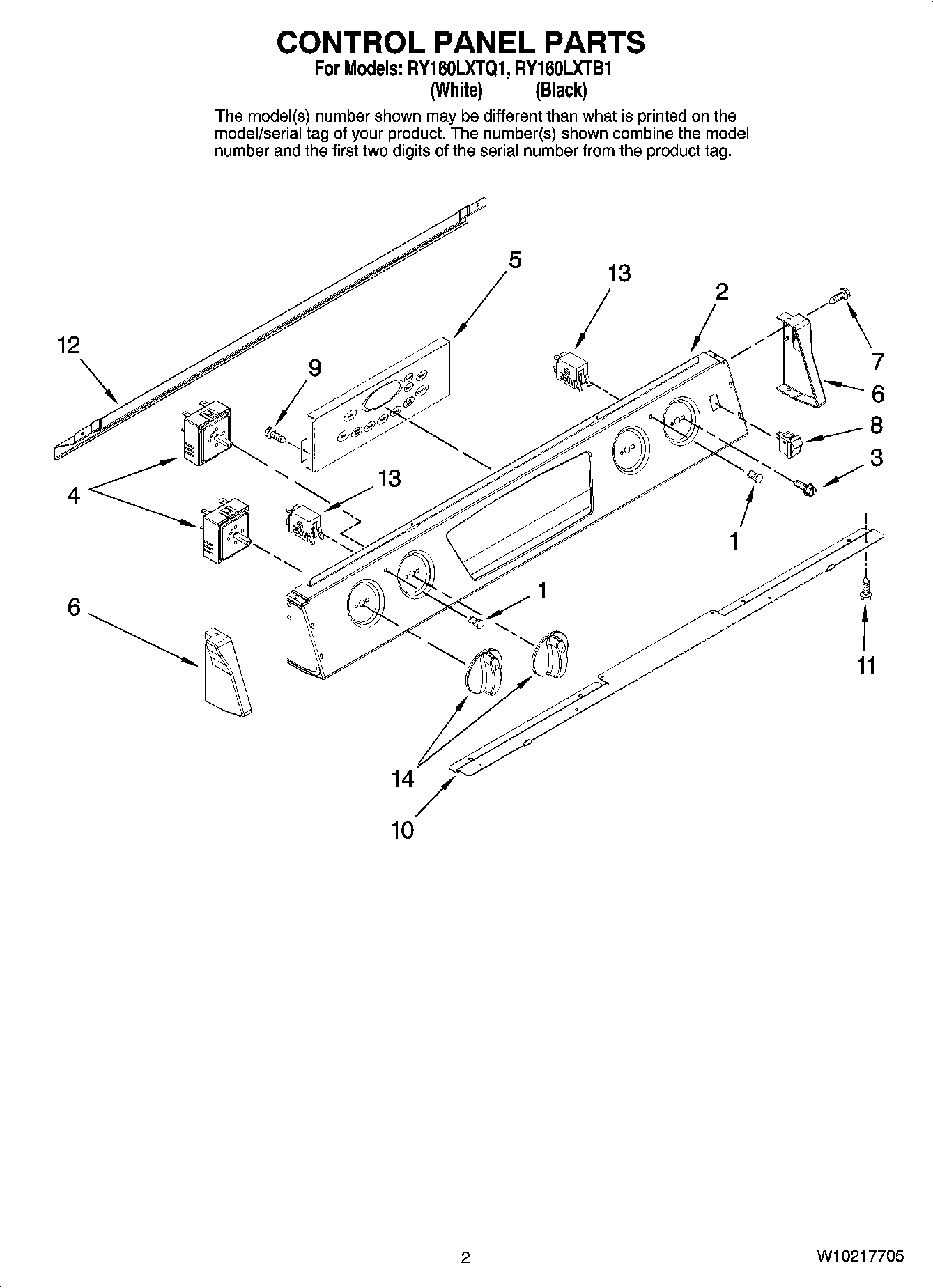

RY160LXTB1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lens
2	Panel, Control (White)
2	Panel, Control (Black)
3	WPL 7101P30960
4	Switch, Infinite 6“ (LF, RR)
4	Switch, Infinite 8“ (RF/LR)(2)
5	W10769823 Whirlpool Oven Electronic Control Board + Core
6	End Cap (Left White)
6	End Cap (Left)
6	End Cap (Right White)
6	End Cap (Right)
7	WP98008544 Whirlpool Screw Assembly
7	WP98008545 Whirlpool Screw
8	Switch, Rocker
8	74008717 Whirlpool White Rocker Switch
9	WP59002061 Whirlpool Microwave Screw
10	Support, Control Panel
11	SCREW
12	Shield, Heat (White)
12	Shield, Heat (Black)
13	WP74004153 Whirlpool Indicator Light
14	Knob (4) (Black)
14	WP74003611 Whirlpool Oven White Knob
