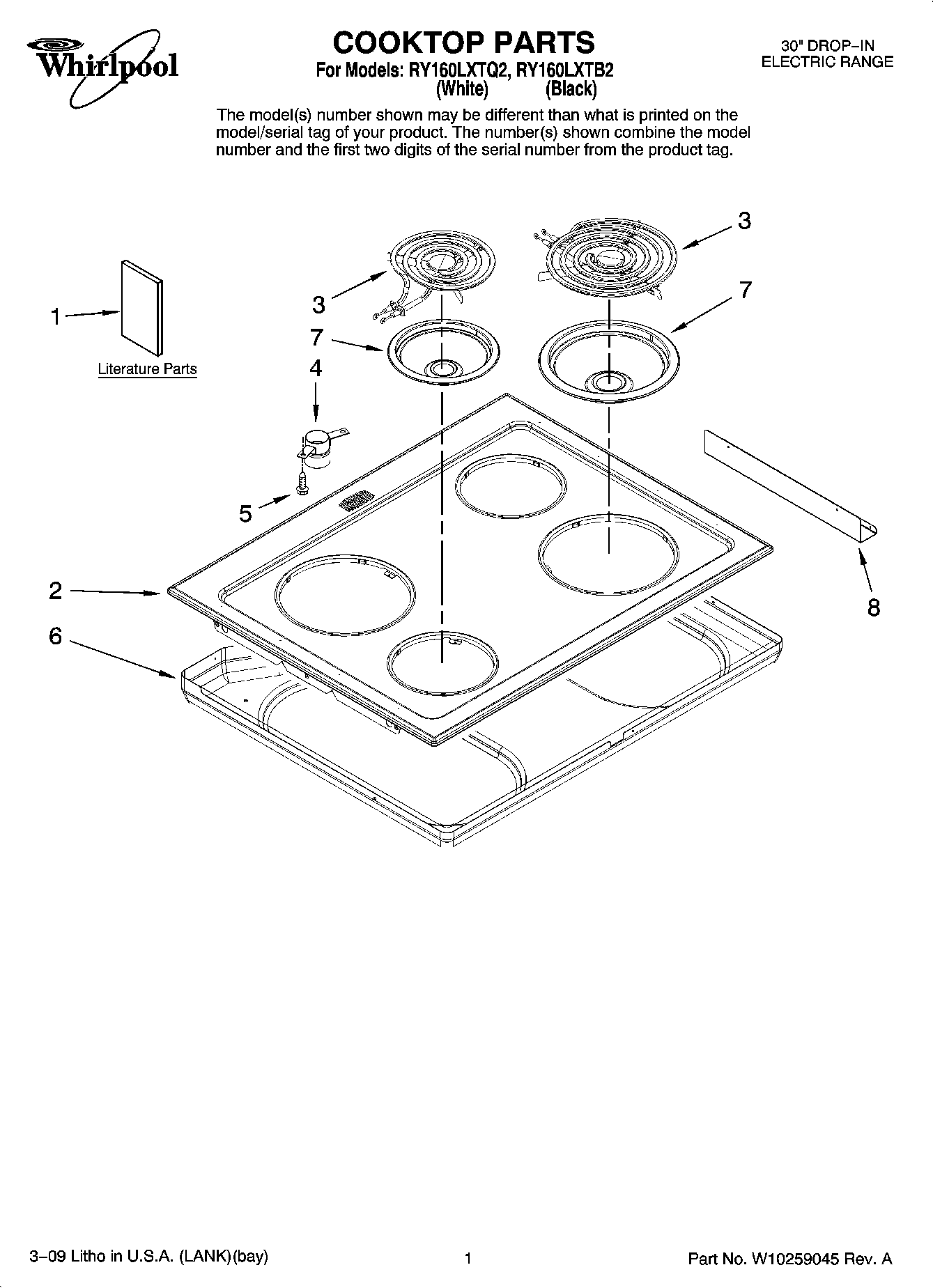

RY160LXTB2 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions
1	Use & Care Guide
1	Wiring Diagram
2	Cooktop (Black)
2	Cooktop (White)
3	Element (LF/RR, 1250W) (2)
3	Element (RF/LR, 2100W) (2)
4	Tube, Vent Upper
5	SCREW
6	Bottom, Burner Box
7	Bowl, Drip (Chr 6``)
7	Bowl, Drip (Chr 8``)
8	Bracket, Burner Box
