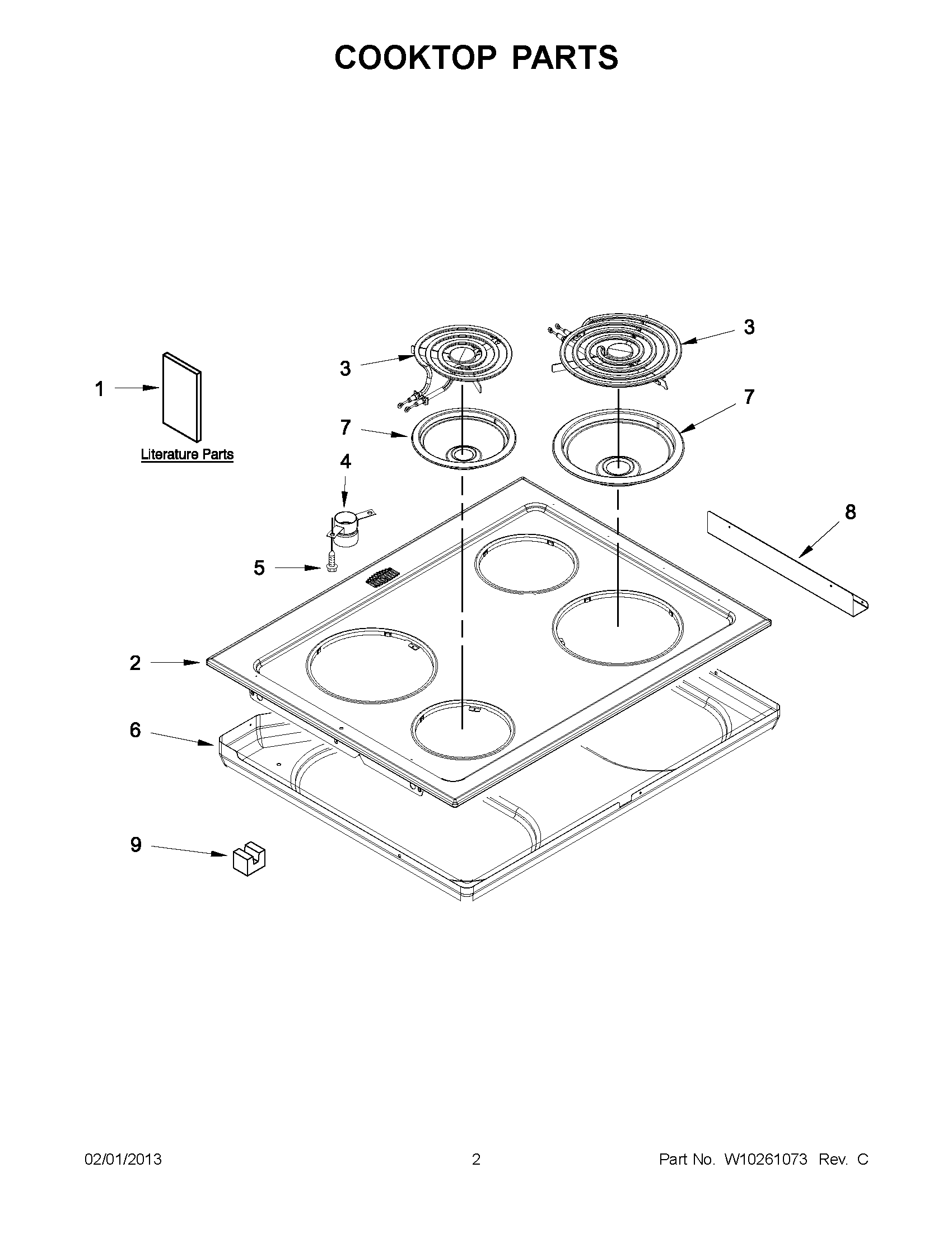

RY160LXTQ02 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1OWNERS MANUAL
1INSTALL, INSTRUCT
1Wiring Diagram
2Cooktop (Black)
2Cooktop (White)
3WPW10345407 Whirlpool Surface Element
3W10345409 Whirlpool Surface Element
4Tube, Vent Upper
5SCREW
6Bottom, Burner Box
7Bowl, Drip (Chr 6“)
7Bowl, Drip (Chr 8“)
8Bracket, Burner Box
9KIT, HARDWARE
