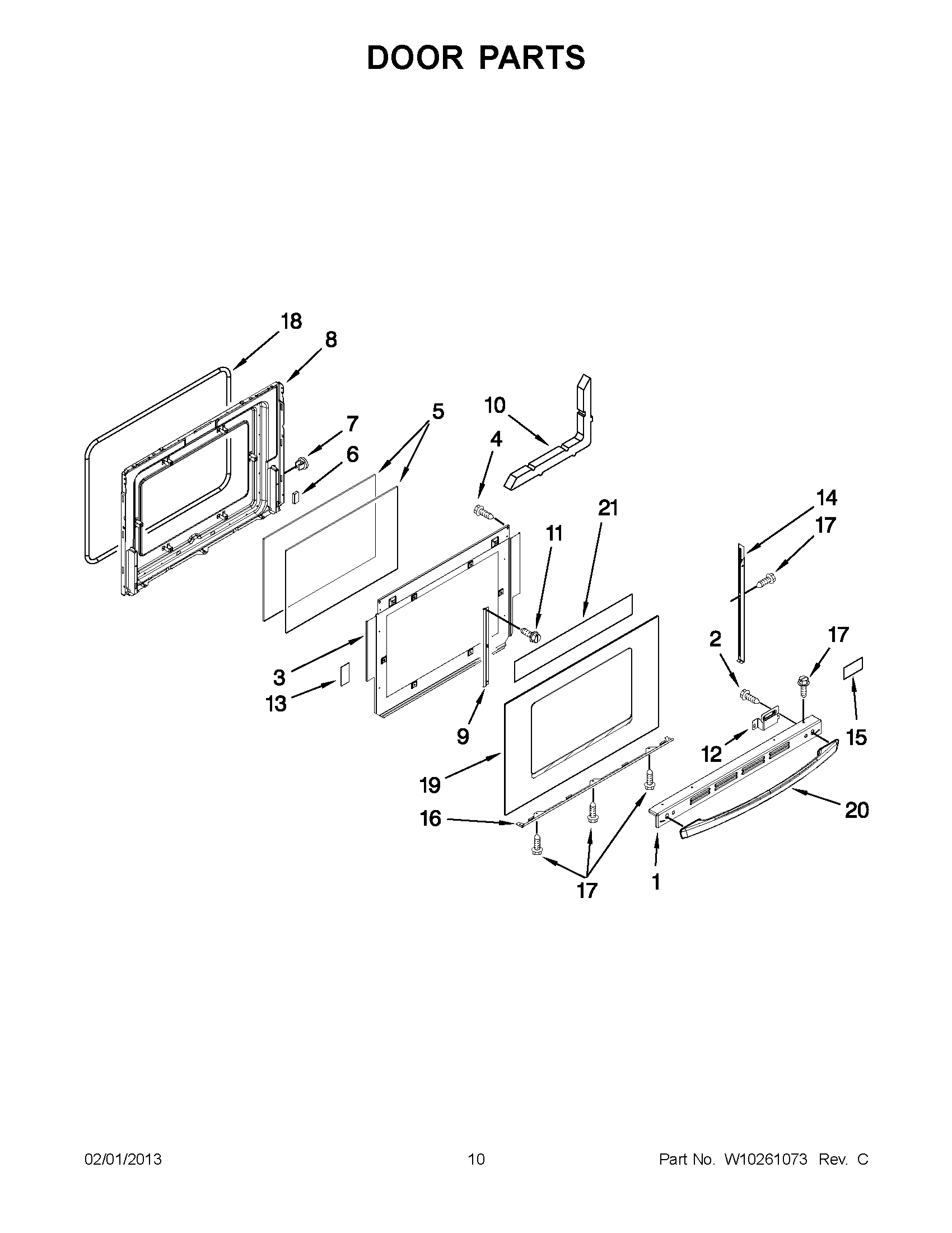

RY160LXTQ02 05 – DOOR PARTSadmin2025-04-26T11:20:24+00:00RY160LXTQ02 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Trim, Door Top |
| 1 | Trim, Door Top |
| 2 | SCREW |
| 3 | Baffel, Retainer |
| 5 | GLASS, INNER |
| 6 | Spacer, Rubber |
| 7 | NUT, SNAP |
| 8 | Lining, Door |
| 9 | Bracket, Glass |
| 10 | Insulation, Door |
| 11 | SCREW |
| 12 | Bracket, Handle (Right) |
| 12 | Bracket, Handle (Left) |
| 13 | Tape, White |
| 14 | Trim, Door Side (Right) |
| 14 | Trim, Door Side (Left) |
| 14 | TRIM, DOOR SIDE (BLACK, LEFT) |
| 14 | TRIM, DOOR SIDE (BLACK, RIGHT) |
| 15 | W11178521 Whirlpool Dishwasher Nameplate |
| 16 | Trim, Door Bottom |
| 16 | Trim, Door Bottom |
| 17 | SCREW (BLACK) |
| 17 | SCREW (WHITE) |
| 18 | GASKT-DOOR OVEN |
| 19 | PANEL, OUTER DOOR |
| 19 | PANEL, OUTER DOOR (BLACK) |
| 20 | Handle, Door |
| 20 | Handle, Door (White) |
| 21 | Tape, Foil |
