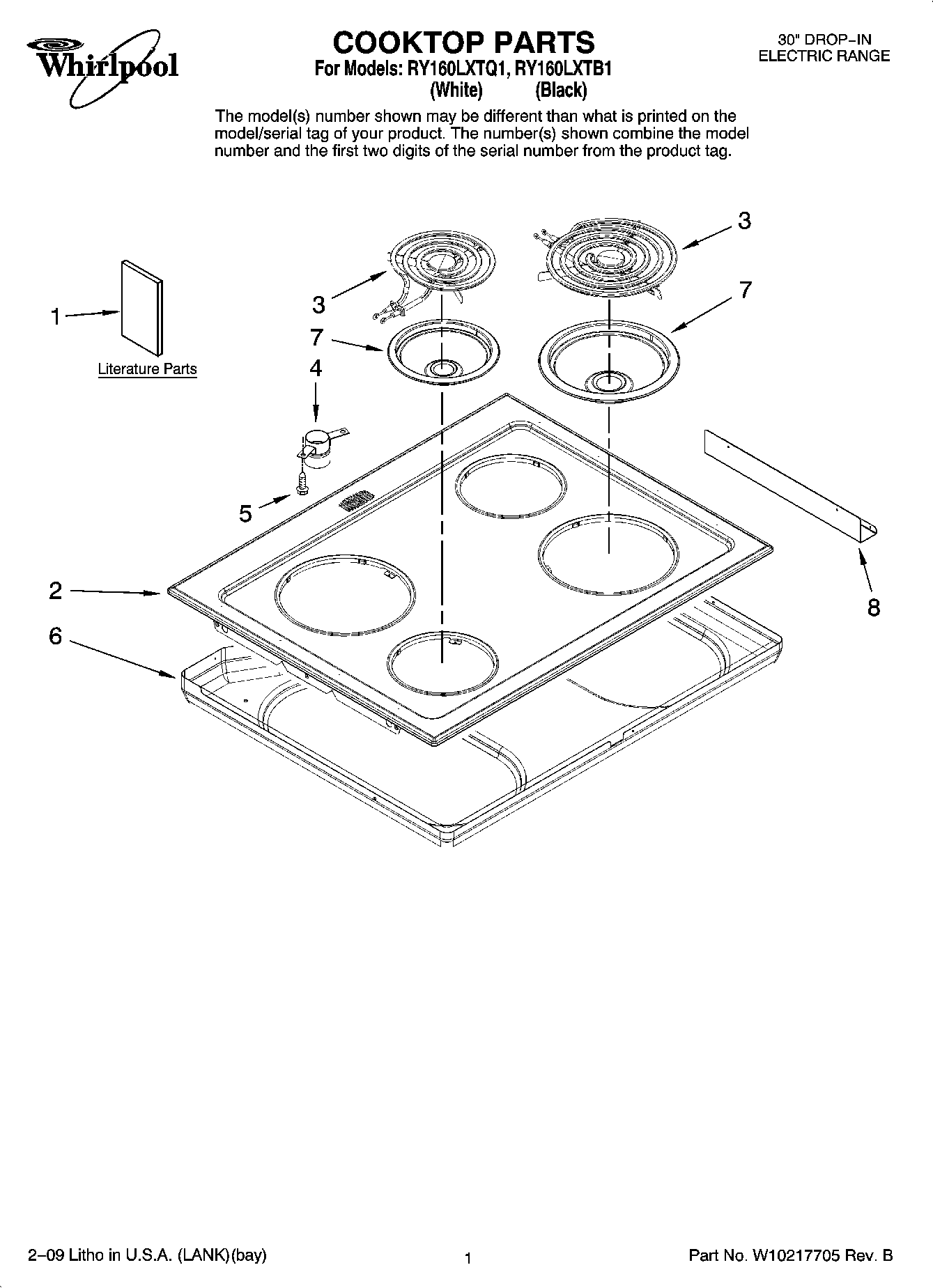

RY160LXTQ1 01 – COOKTOP PARTS

RY160LXTQ1 01 – COOKTOP PARTS

Written by

in

RY160LXTQ1 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Wiring Diagram
1SAFER COOKING TIPS (ENGLISH
1Use & Care Guide
2Cooktop (White)
2Cooktop (Black)
3WPW10345407 Whirlpool Surface Element
3WP9761346 Whirlpool Stove Surface Burner Element
4Tube, Vent Upper
5WP7101P498-60 Whirlpool Screw
6Bottom, Burner Box
7DRIP BOWL 8" W/HOLE CHROME
7WPW10196406 Whirlpool 6" Chrome Drip Bowl
83801F881-51 Whirlpool Bracket
