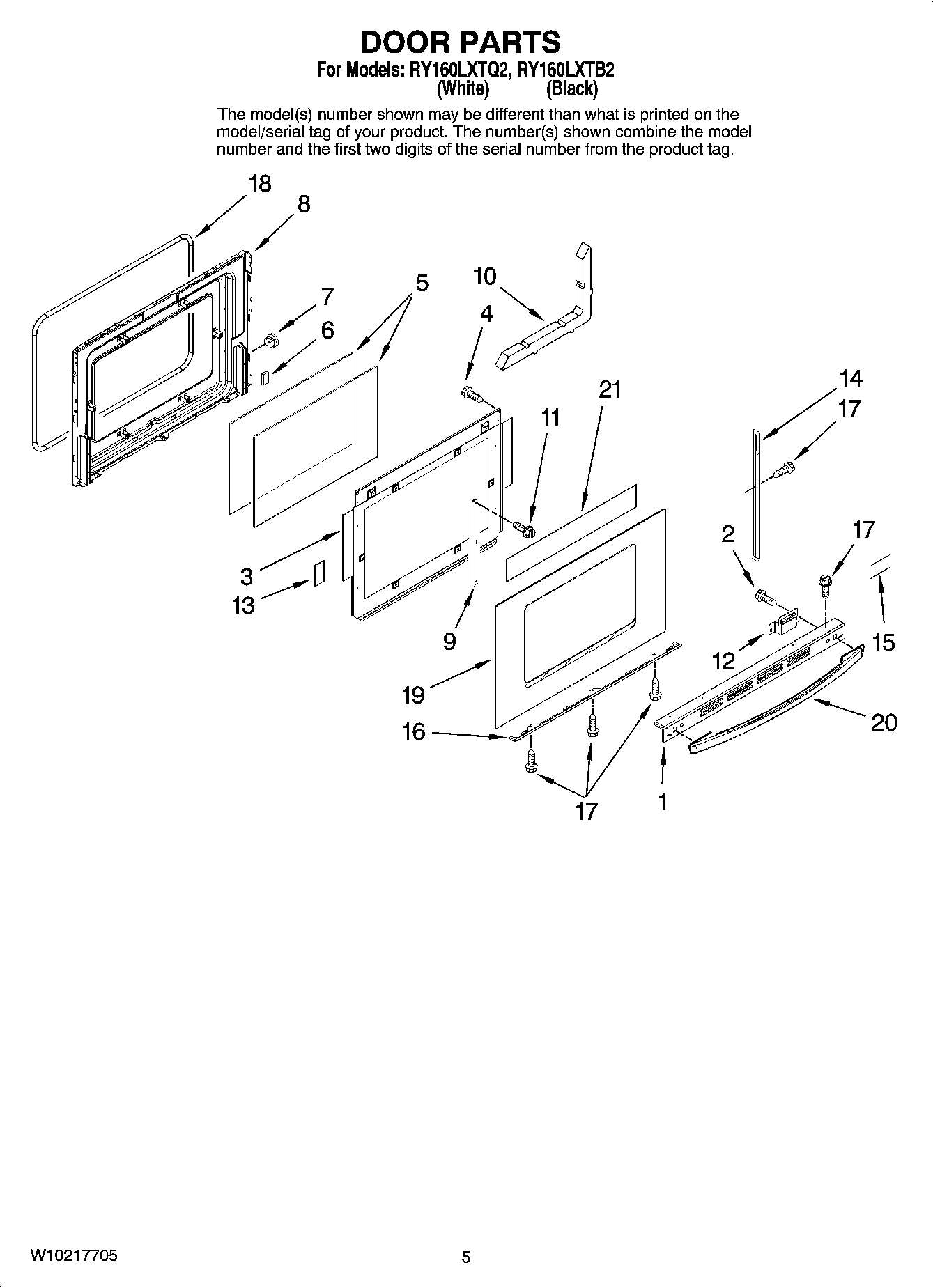

RY160LXTQ2 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top (Black)
1WP3608F141-71 Whirlpool Door Trim
2Screw, Handle (2)
3Baffle, Retainer
4Screw
5GLASS, INNER
6Spacer, Rubber
7NUT, SNAP
8Lining, Door
9Bracket, Glass
10Insulation, Door
11WP90767 Whirlpool Screw
12Bracket, Handle (Right)
12Bracket, Handle (Left)
13Tape, White
14Trim, Door Side (Left)
14TRIM, DOOR SIDE (BLACK, RIGHT)
14TRIM, DOOR SIDE (BLACK, LEFT)
14Trim, Door Side (Right)
15BADGE
16WP3807F708-71 Whirlpool Support
16Trim, Door Bottom (Black)
17SCREW (BLACK)
17SCREW (WHITE)
18Seal, Door
19PANEL, OUTER DOOR
19PANEL, OUTER DOOR (BLACK)
20Handle, Door
20Handle, Door (White)
21Tape, Foil
