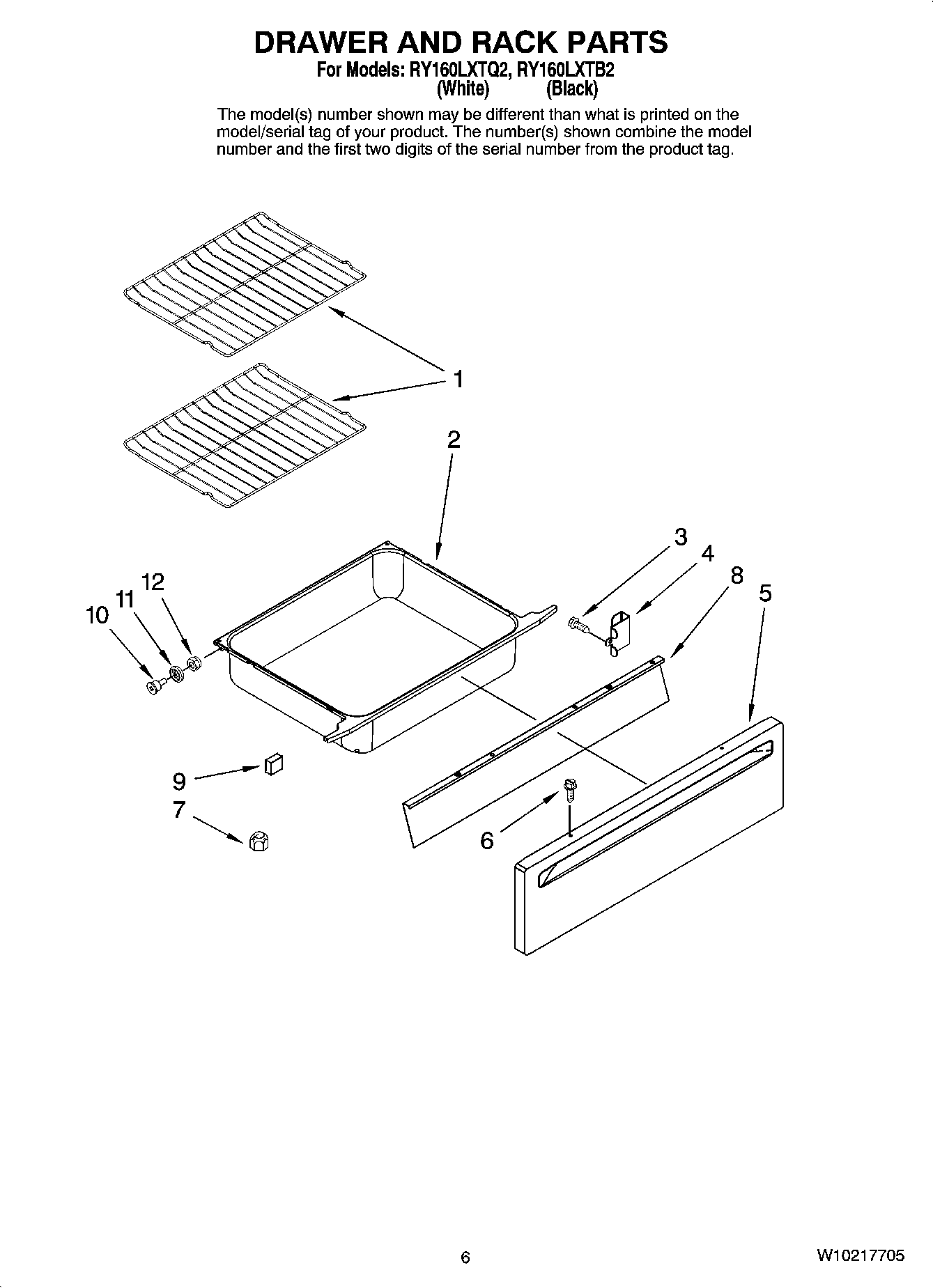

RY160LXTQ2 05 – DRAWER AND RACK PARTS

RY160LXTQ2 05 – DRAWER AND RACK PARTS

Written by

in

RY160LXTQ2 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	Rack, Oven (2)
2	Drawer, Storage
3	Screw, Panel
4	Bracket, Drawer
5	Panel, Drawer (Black)
5	PANEL, DRAWER
6	SCREW (BLACK)
6	SCREW (WHITE)
7	Nut, Lock
8	Lining, Drawer
9	Spacer, Rubber
10	Roller, Drawer
11	Shaft, Roller
12	Nut
