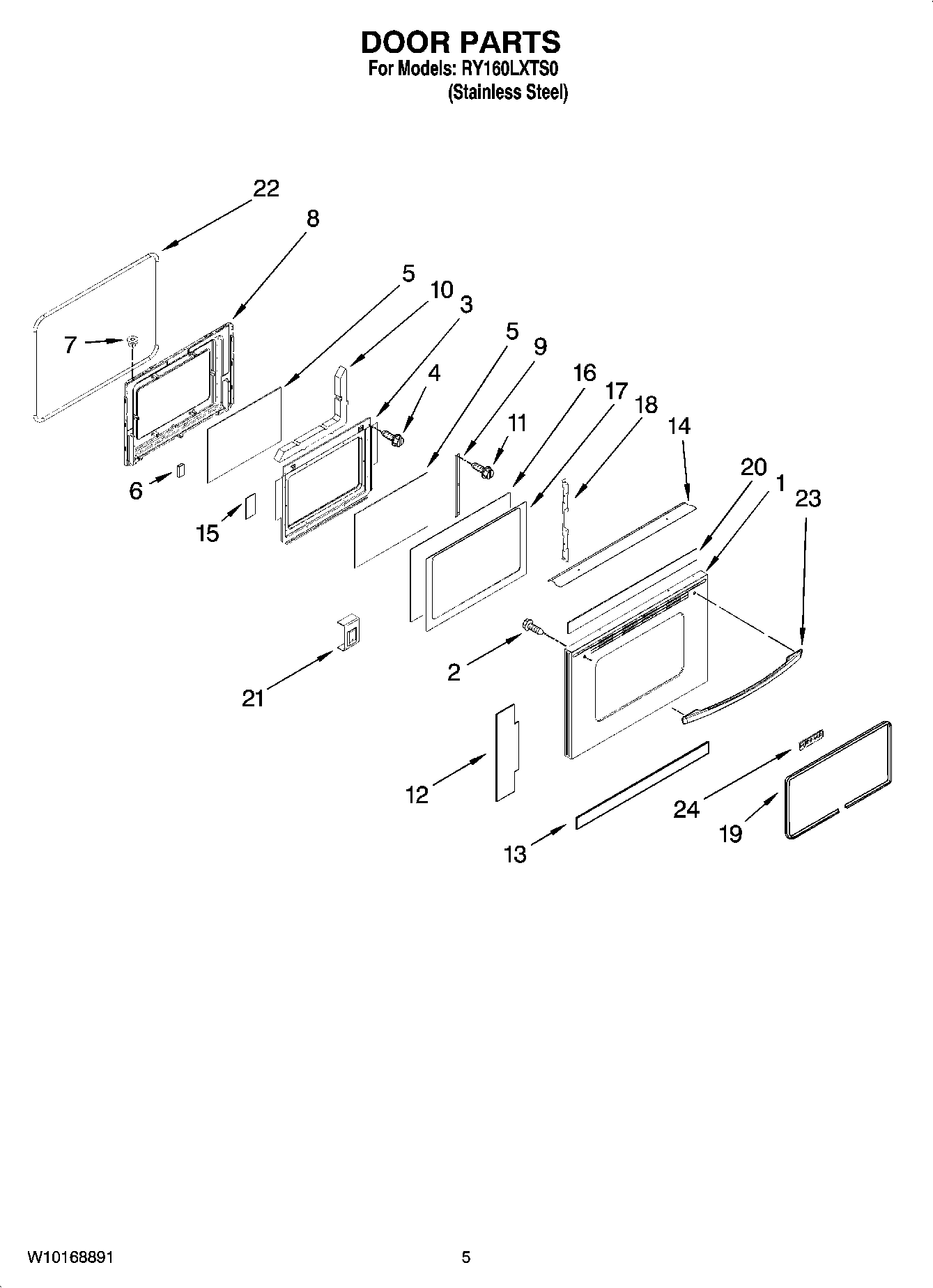

RY160LXTS0 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (S.Steel)
2	WP74006515 Whirlpool Washer Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Liner, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	74011048 Whirlpool Oven Insulation
13	WP74010043 Whirlpool Insulation
14	Shield, Door
15	Tape, White
16	Glass, Coated
17	Glass, Inner Clear
18	Retainer, Glass
19	WP74009029 Whirlpool Door Gasket
20	Tape, Protective
21	Clip, Glass (2)
22	Seal, Door
23	Handle, Door (Black)
24	BADGE
