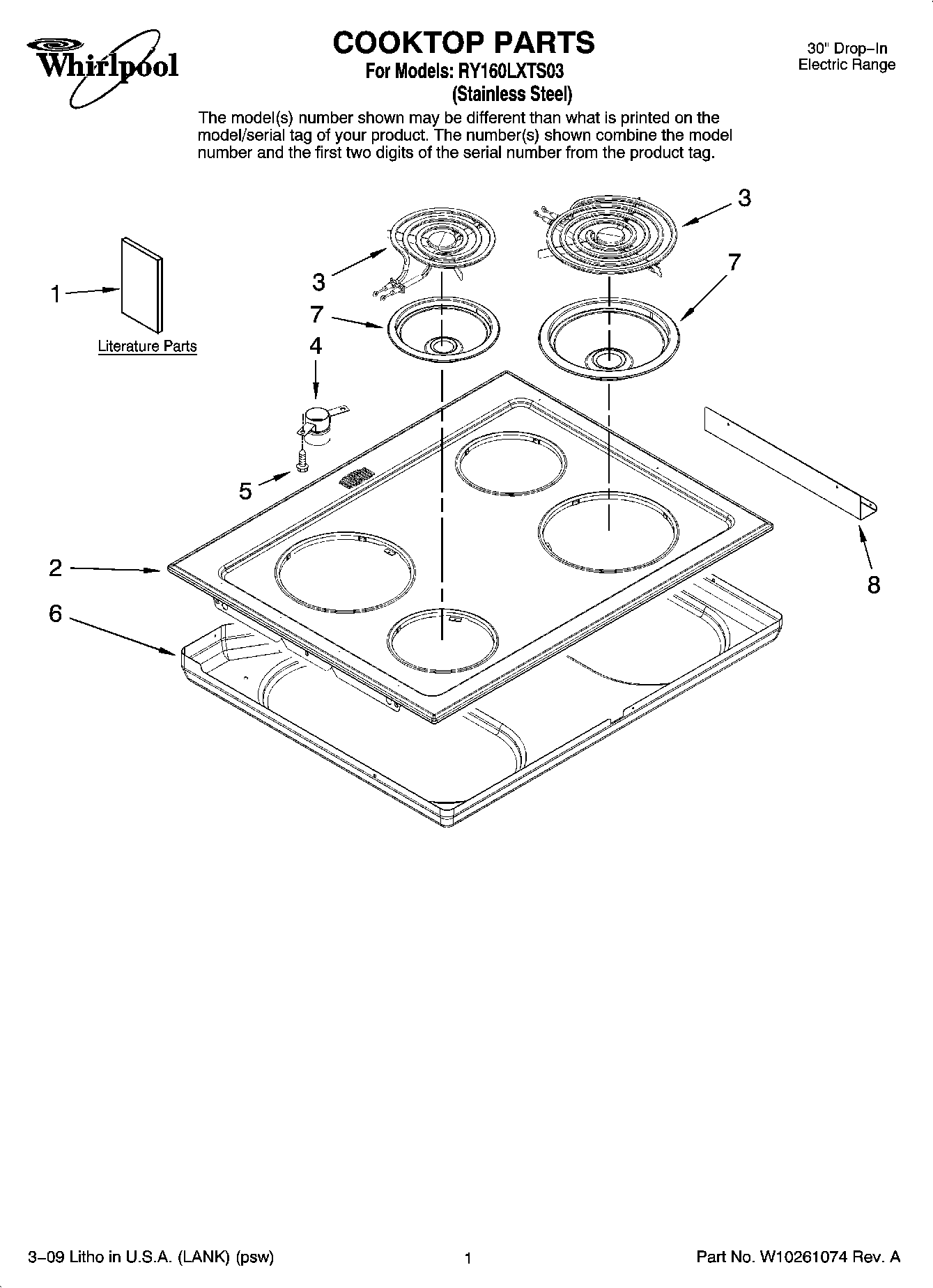

RY160LXTS03 01 – COOKTOP PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
2Cooktop (Black)
3WP9761346 Whirlpool Stove Surface Burner Element
3WPW10345407 Whirlpool Surface Element
4Tube, Vent Upper
5WP7101P498-60 Whirlpool Screw
6Bottom, Burner Box
7Bowl, Drip (Chr 6“)
7Bowl, Drip (Chr 8“)
8Bracket, Burner Box
