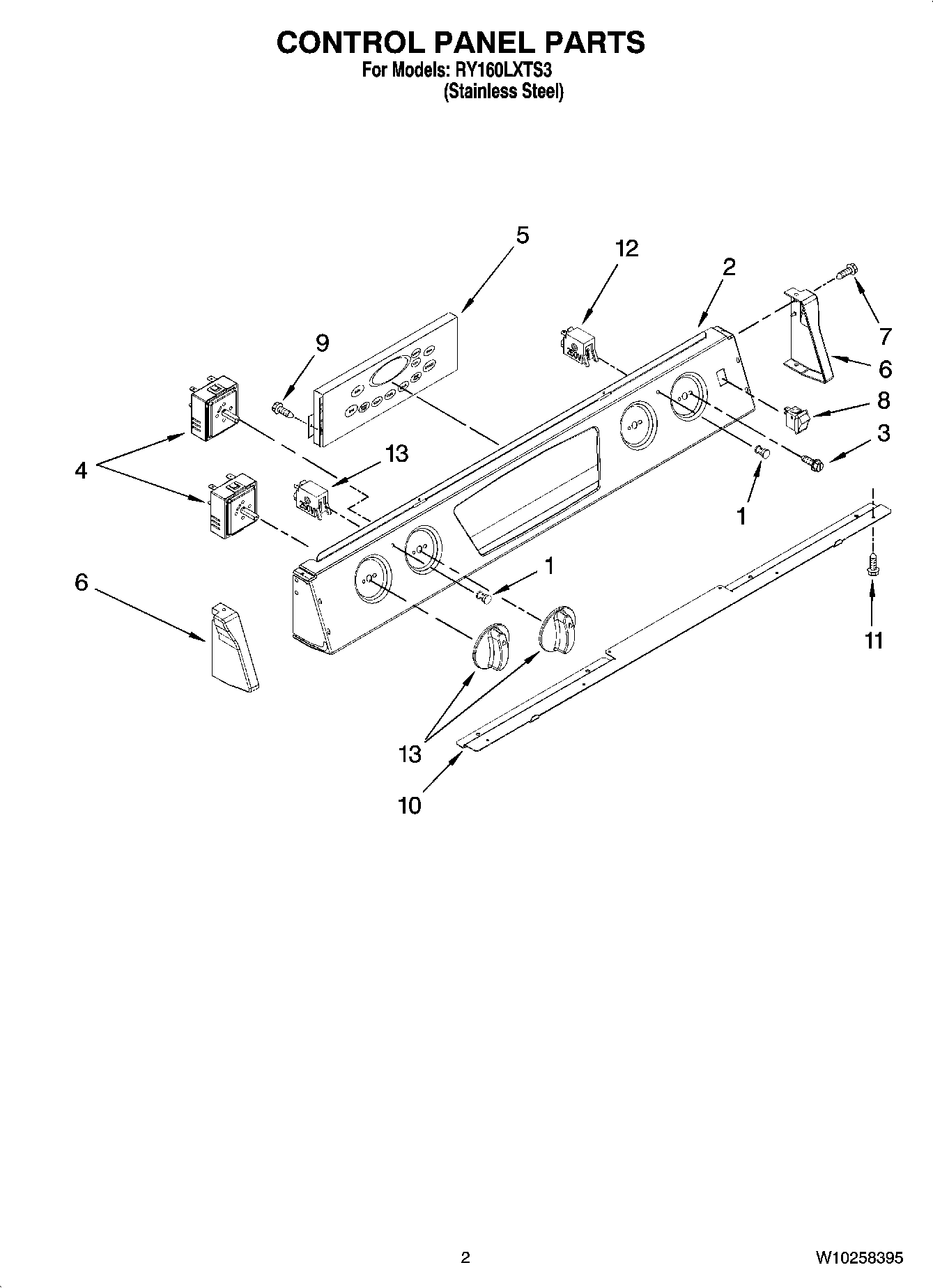

RY160LXTS3 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Lens
2	Panel, Control
3	WPL 7101P30960
4	Switch, Infinite 8“ (RF/LR)(2)
4	Switch, Infinite 6“ (LF, RR)
5	W10769823 Whirlpool Oven Electronic Control Board + Core
6	END CAP (RIGHT)
6	END CAP (LEFT)
7	SCREW (BLACK)
8	Switch, Rocker
9	Screw
10	Support, Control Panel
11	SCREW
12	Light, Indicator
13	Knob (4)
