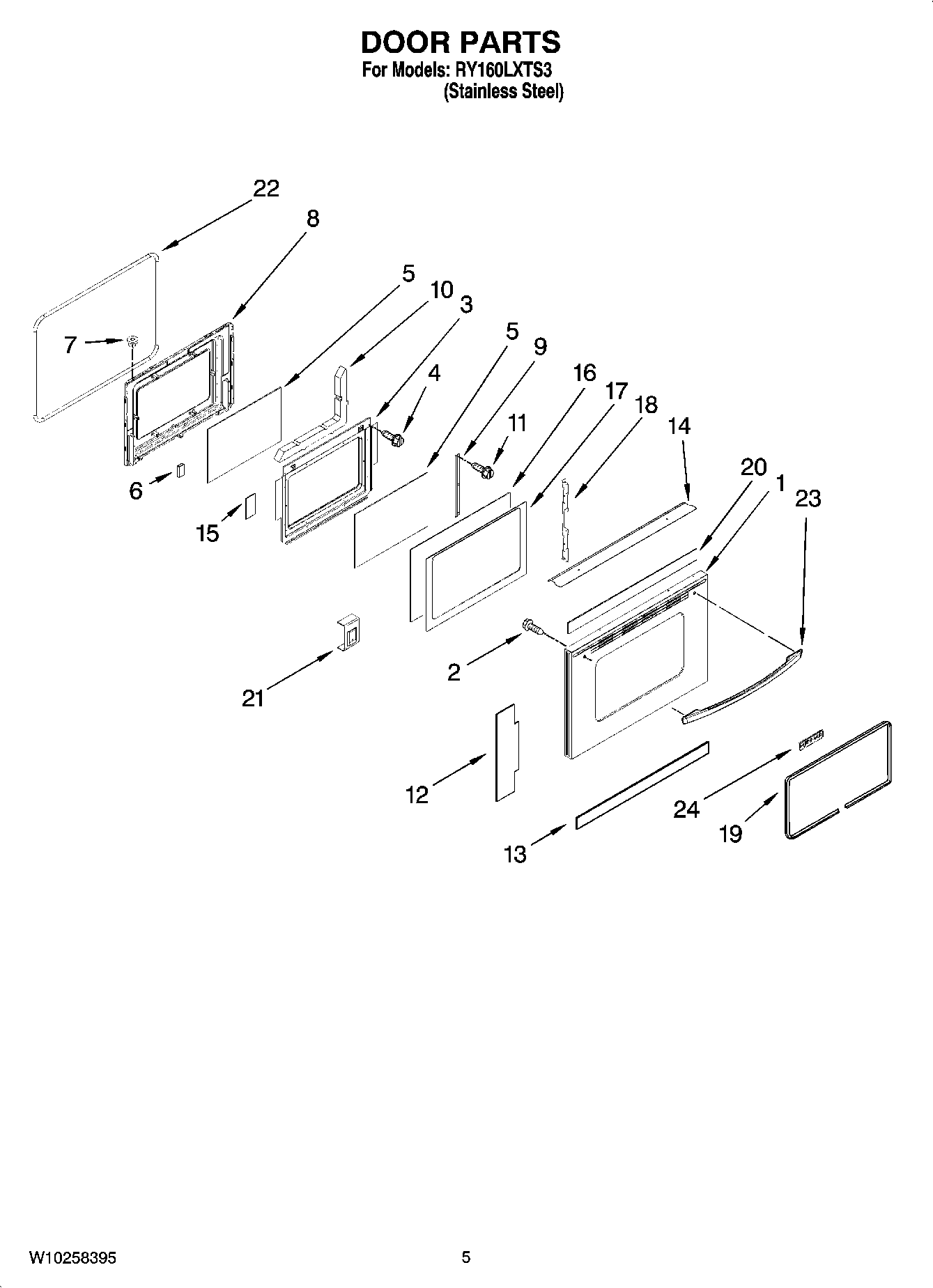

RY160LXTS3 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (S.Steel)
2	SCREW
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	Insulation, Foil
13	Insulation, Door
14	Shield, Door
15	Tape, White
16	Glass, Coated
17	GLASS. OUTER DOOR (S.STEEL MDL ONLY)
18	Retainer, Glass
19	Gasket, Window
20	Tape, Protective
21	Clip, Glass (2)
22	Seal, Door
23	Handle, Door
24	Nameplate, Logo
