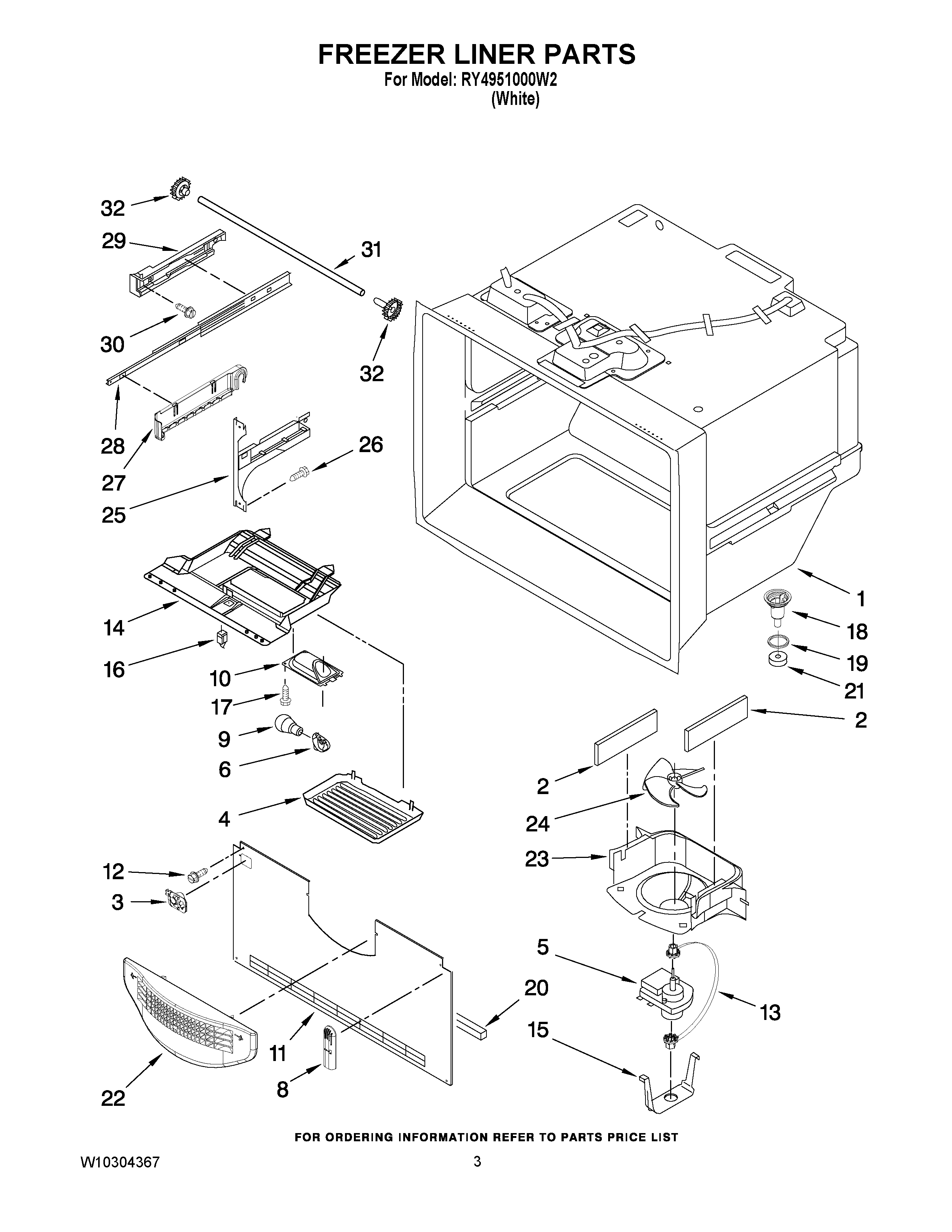

RY4951000W2 02 – FREEZER LINER PARTS

RY4951000W2 02 – FREEZER LINER PARTS

Written by

in

RY4951000W2 02 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY W10235313
1LINER (NOT A SERVICEABLE PART)
3MAY 12932103
4MAY 12804901
5MAY 10449516
6MAY W10134764
8MAY 12815301
9MAY A0282808
10MAY 12476401V
11MAY 12226114
12SCREW (10)
13MAY W10121318
14MODULE, FZ CONTROL
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12991603V
18MAY D7753903
19MAY M0500703
20Gasket, Bottom
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10119295
25MAY W10119064
26Screw (8)
27CRADLE, BASKET (LEFT)
27CRADLE, BASKET (RIGHT)
28Slide, Drawer (2)
29MAY W10284691
29MAY W10284690
30Screw (6)
31SHAFT
3212002497 Whirlpool Refrigerator Drawer Gear Kit
