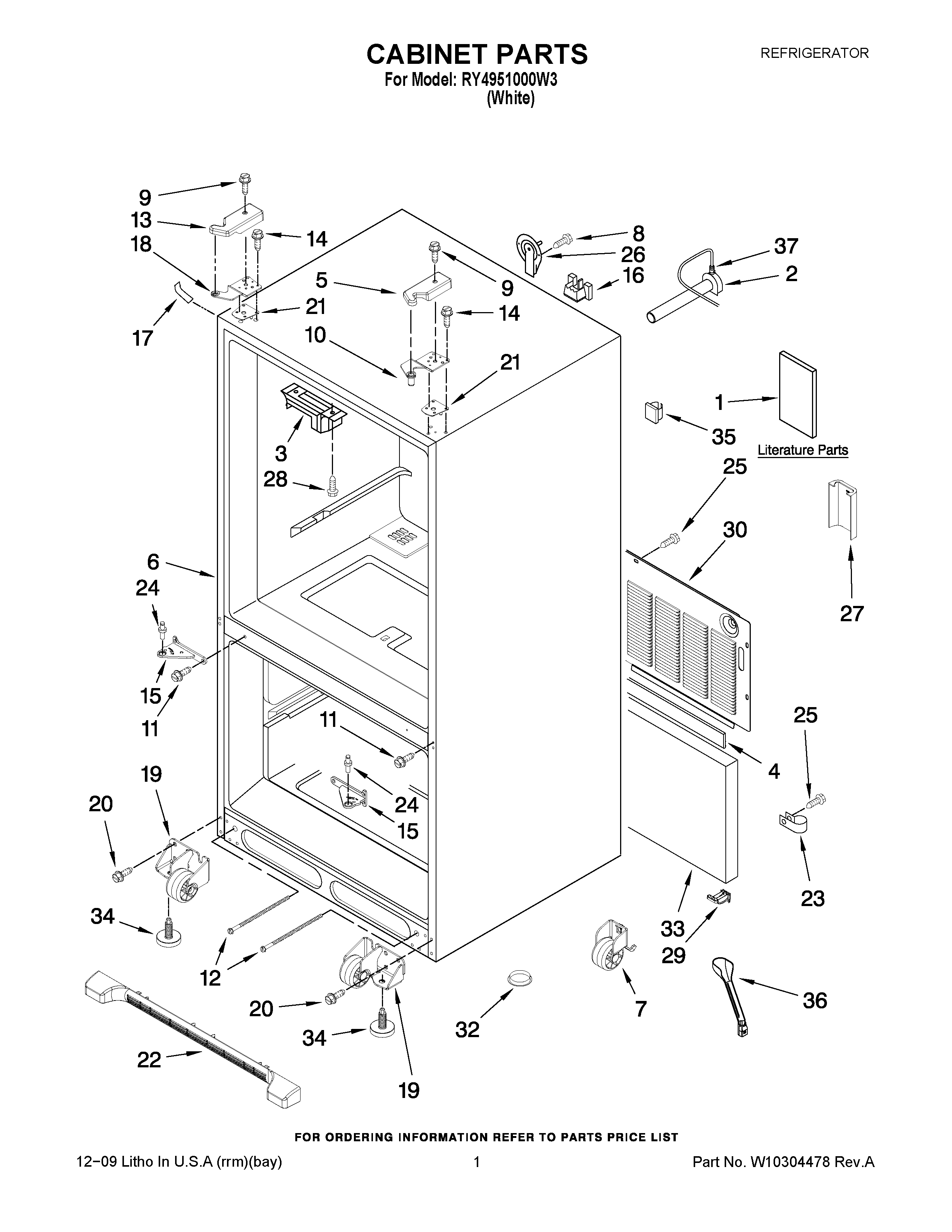

RY4951000W3 01 – CABINET PARTS

Products

Position	Product
2	MAY 10463203SP
3	Block, Pivot
4	MAY B5759655
5	Cover, Right Hinge (White)
6	LINER (NOT A SERVICEABLE PART)
7	ROLLER ASSY.(REAR)
8	MAY 12990504
9	MAY 12992602
10	Hinge, Top Right
11	SCREW (6)
12	MAY 10093321
13	COVER, LEFT HINGE (WHITE)
14	SCREW (6)
15	Hinge, Center (White)
16	MAY 12777701
17	Cover, Corner (2) (White)
18	Hinge, Top Left
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12579702
22	MAY W10244559
23	W10833902 Whirlpool Refrigerator Clamp
24	MAY 10351006
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW (2)
29	MAY 12831101
30	MAY W10212204
32	A3076901 Whirlpool Refrigerator Plug
33	Insulation, Sound
34	Brake, Foot
35	WPM0104106 Whirlpool Refrigerator Clip
36	MAY W10210988
37	CLIP
