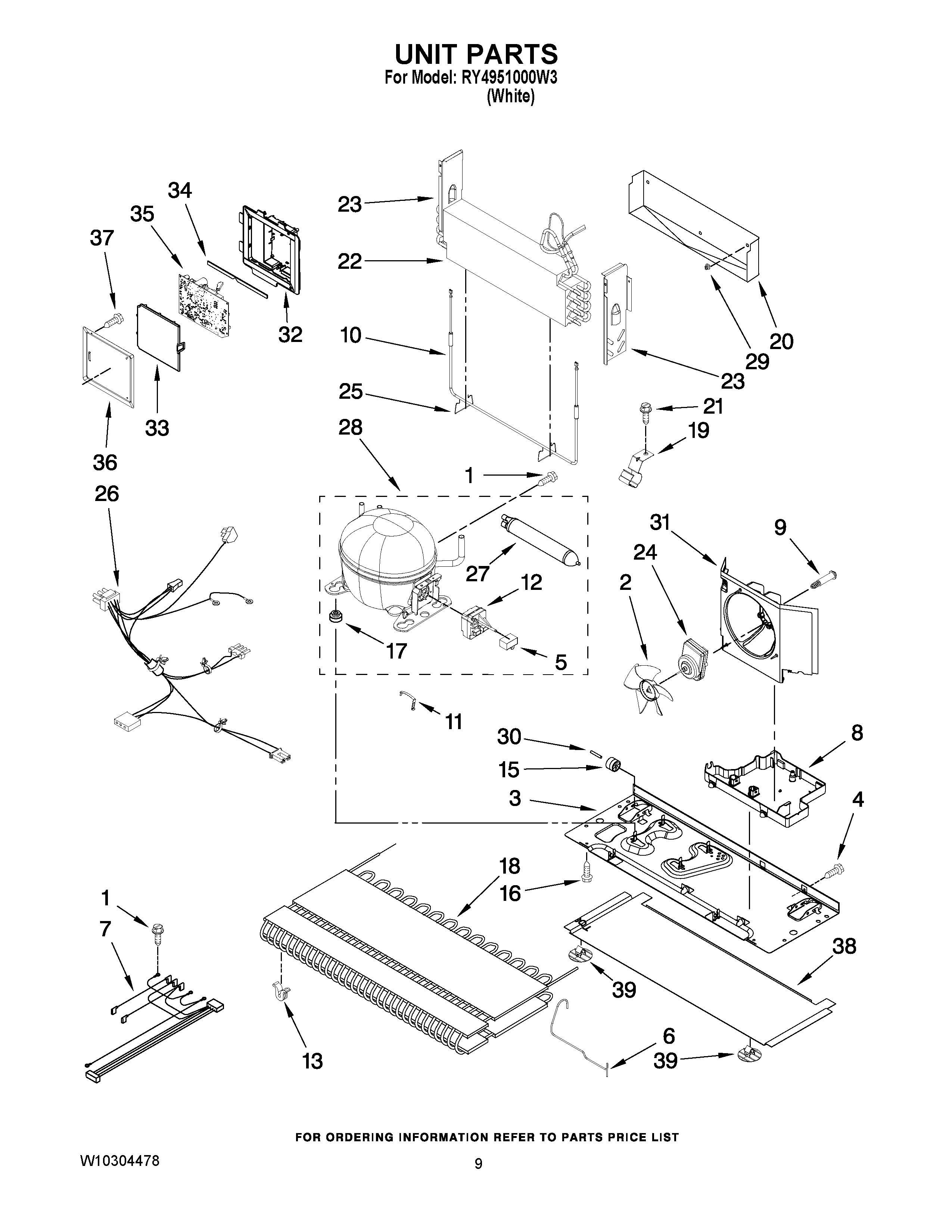

RY4951000W3 05 – UNIT PARTS

RY4951000W3 05 – UNIT PARTS

Written by

in

RY4951000W3 05 – UNIT PARTS

Products

PositionProduct
NIValve, Access (5/8“)
NIValve, Access (3/4“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
NIMAY 876764
NILINER (NOT A SERVICEABLE PART)
1MAY 12992301
2MAY 12825803
3MAY W10210985
4SCREW (10)
5CAPACITOR
6MAY W10286438
7HARNESS, EVAP. HEATER
8MAY W10296785
9MAY 12991001N
10MAY 12729132
11STRAP, BALE
12START DEVICE
13GROMMET, COND (4)
15Roller (2)
16MAY 12992101
17Grommet (4)
18MAY W10135027
19MAY 10547003
20MAY 12225403WD
21MAY 12990701
22MAY 12726403
23Dam (Right Side)
23DAM (LEFT SIDE)
24MAY W10246191
25W11673433 Whirlpool Clip
26MAY W10234313
27Drier
28MAY W10223234
29MAY 10623002
30Axle, Roller (2)
31MAY W10189187
32BOX, HV CONTROL
33LID, HV BOX
34GASKET-HV BOX
35BOARD, CONTROL (HV, APOLLO)
36MAY 12961602
37SCREW
38EXTENSION-BASEPAN
39MAY W10206339
