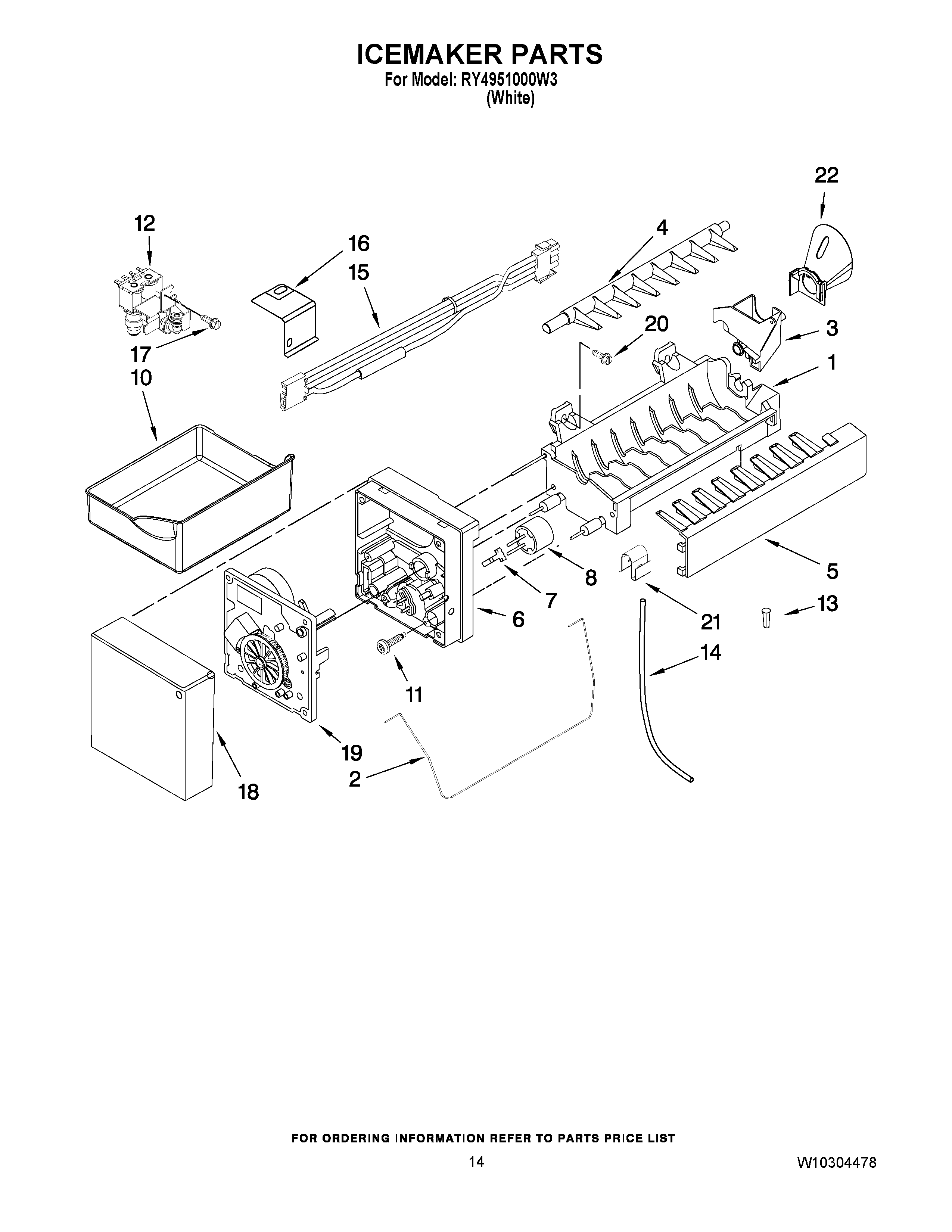

RY4951000W3 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	Mold & Heater Assembly (Also Order 542638 Grease)
2	ARM-SHUT OFF
3	Cup, Fill
4	MAY 627843
5	ICE STRIPPER
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement)
10	MAY W10171529
11	Screw (2)
12	MAY 12544125
13	MAY A3223101SP
14	TUBING, PLASTIC
15	MAY 12975112
16	Bracket, Ice Maker
17	MAY 12991604
18	Cover
19	MAY W10122522
20	Screw (3)
21	Clip
22	MAY 12918001
100	ICEMAKER ASSEMBLY
