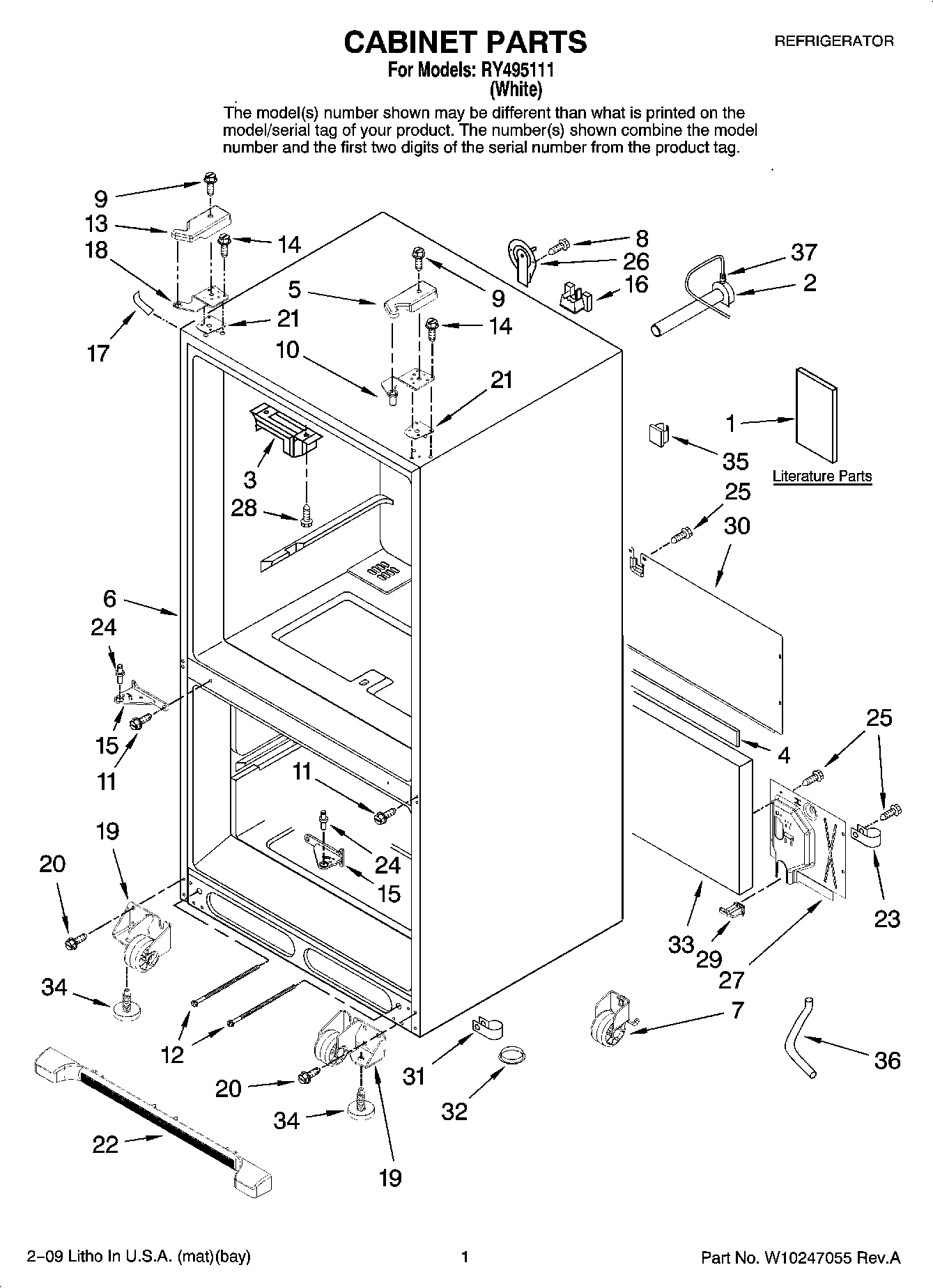

RY495111 01 – CABINET PARTS

Products

Position	Product
2	MAY W10137519
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	Cover, Right Hinge (White)
7	Roller Assy.(Rear)
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	Hinge, Top Right
11	WP67006380 Whirlpool Screw
12	MAY 67006697
13	MAY 67007156
14	WP489349 Whirlpool Refrigerator Screw
15	Hinge, Center (White)
16	MAY 12777701
17	Cover, Corner (2) (White)
18	Hinge, Top Left
19	ROLLER ASSY.(FRONT) (RIGHT)
19	ROLLER ASSY.(FRONT) (LEFT)
20	MAY 67006564
21	MAY 12579702
22	MAY W10131133
23	W10833902 Whirlpool Refrigerator Clamp
24	WP67006642 Whirlpool Refrigerator Pin
25	Screw (10)
26	COVER, WATER LINE
27	MAY 67004735
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	MAY 67002230
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	A3076901 Whirlpool Refrigerator Plug
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Brake, Foot
35	WPM0104106 Whirlpool Refrigerator Clip
36	MAY 67001066
37	Clip
