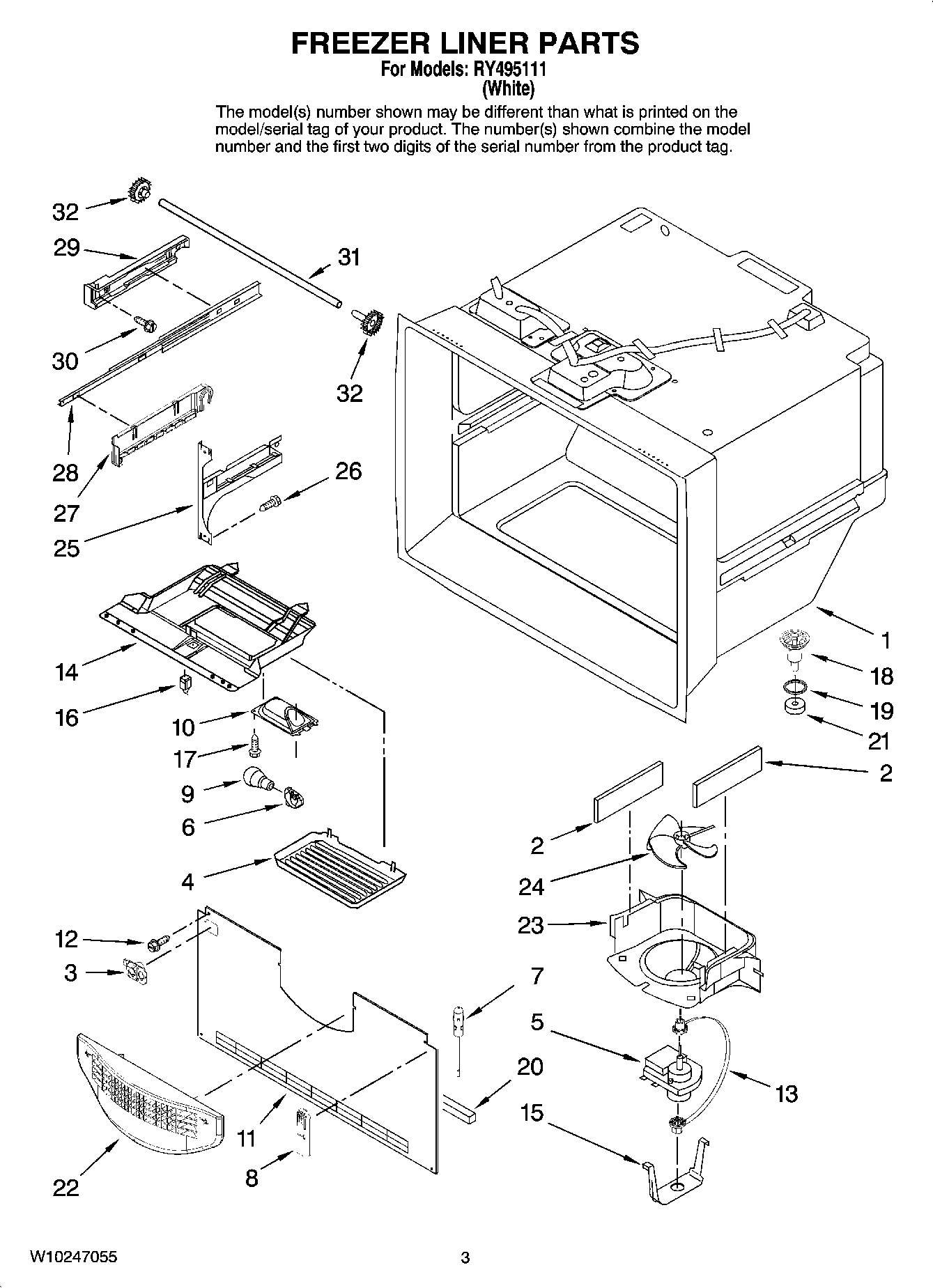

RY495111 02 – FREEZER LINER PARTS

RY495111 02 – FREEZER LINER PARTS

Written by

in

RY495111 02 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY 13065802
2W10856123 Whirlpool Refrigerator Gasket
3MAY 67005874
4MAY 67003905
5MAY 67005023
6MAY 12570705
712002355 Whirlpool Refrigerator Thermistor Kit
8WP67003924 Whirlpool Refrigerator Cover
9WP67002552 Whirlpool Refrigerator Light Bulb
10MAY 67001035
11MAY 12226114
12Screw (10)
13MAY W10121318
1467003906 Whirlpool Refrigerator Control Module
15Clip, Evap. Motor
16MAY 67005653
17MAY 67006530
18MAY D7753903
19MAY M0500703
20Gasket, Bottom
21Gasket
22MAY W10175909
23SHROUD, EVAP FAN
24Blade, Fan (Evaporator)
25MAY W10119295
25MAY W10119064
26Screw (8)
27W10251557 Whirlpool Refrigerator Bracket
27MAY 67004728
28MAY W10180420
29W10284690 Whirlpool Refrigerator Bracket
29MAY 67004972
30Screw (6)
31W11028221 Whirlpool Refrigerator Shaft
3212002497 Whirlpool Refrigerator Drawer Gear Kit
