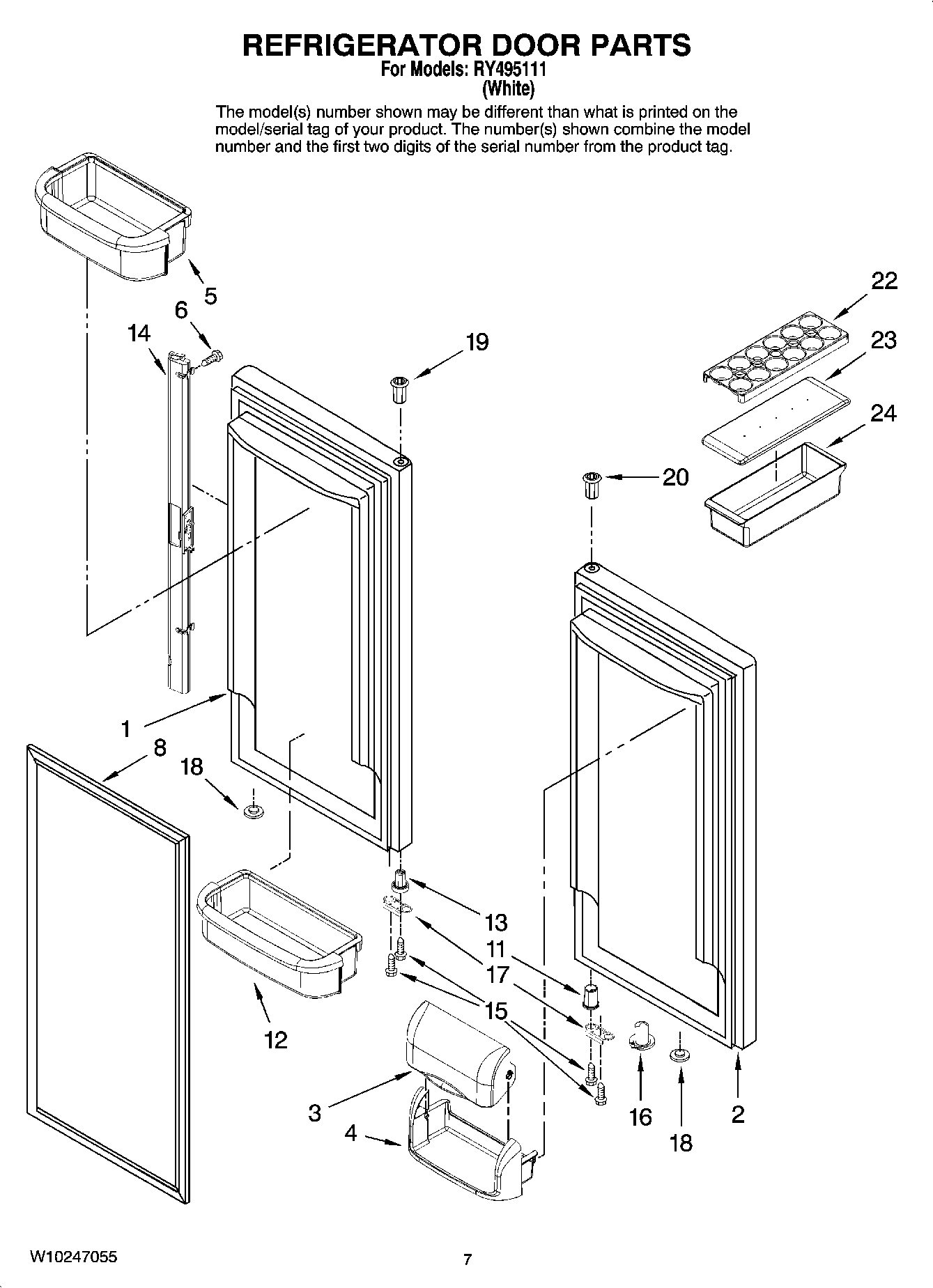

RY495111 04 – REFRIGERATOR DOOR PARTS

RY495111 04 – REFRIGERATOR DOOR PARTS

Written by

in

RY495111 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12732428WQ
2MAY 12732422WQ
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10324005 Whirlpool Refrigerator Cantilever Bin
6MAY 67006786
8Gasket, Door (2) (White)
1112028601W Whirlpool Refrigerator Hinge Bushing
12WPW10289494 Whirlpool Refrigerator Cantilever Bin
1367002722 Whirlpool Refrigerator White Door Bushing
14MAY 12722811W
15WP98165 Whirlpool Screw
16WP67003638 Whirlpool Closing Cam
1712968202W Whirlpool Refrigerator Door Stop
18MAY M0311604
19BUSHING, DOOR UPPER LEFT (WHITE)
20WP67004977 Whirlpool Refrigerator Door Hinge Bushing
22MAY 10436506
23MAY 10436404
24MAY 10423131
