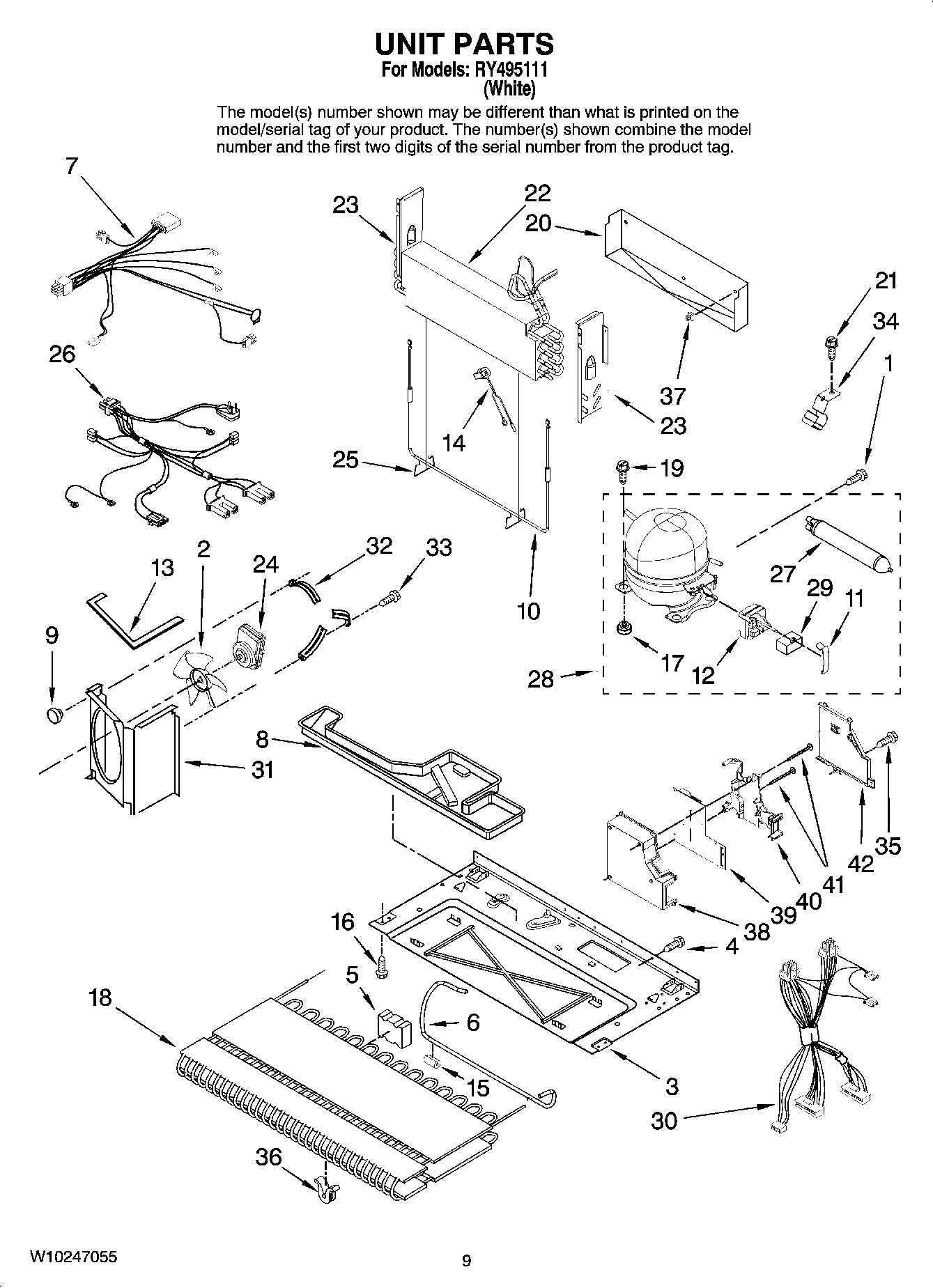

RY495111 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	MAY 67002235
6	MAY 12866903
7	MAY W10169652
8	MAY 67007176
9	GROMMET, BRACKET
10	MAY 12729120
11	MAY 67007052
12	MAY 67006660
12	Relay, Combo (Service)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat, Def.
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	67003493 Whirlpool Refrigerator Compressor Grommet
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67006432
20	MAY 67002490
21	SCREW
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001083
23	MAY 67001084
24	MAY W10211284
25	W11673433 Whirlpool Clip
26	MAY W10169567
27	Drier
28	MAY 12049772
29	MAY 67007162
30	MAY 12972903SP
31	MAY 67006661
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
35	MAY 67006615
36	GROMMET, COND (4)
37	MAY 10623002
38	MAY 12889402SP
39	MAY W10168780
40	MAY 12889502SP
41	MAY 67006550
42	MAY 67005421
