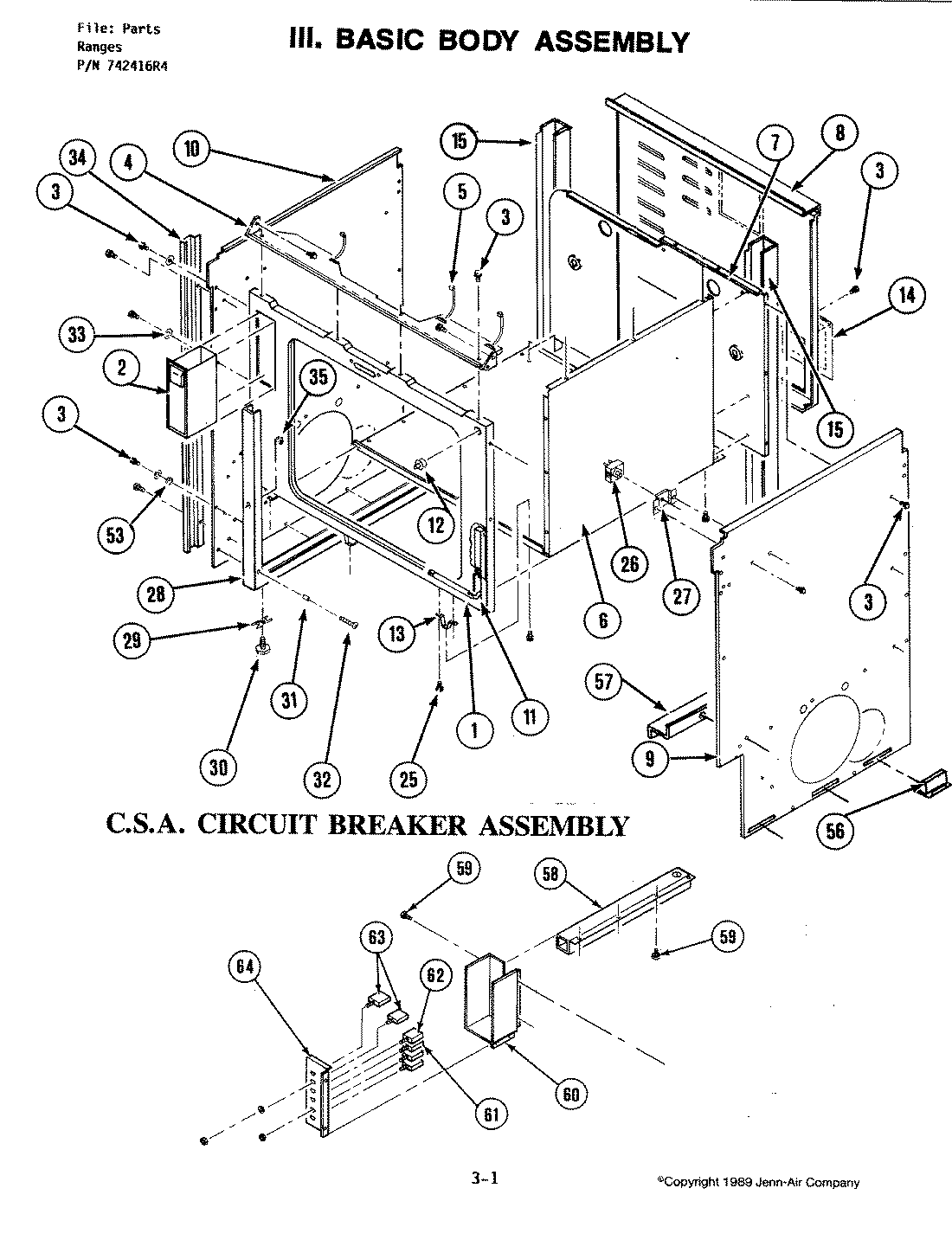

S105-C 01 – BASIC BODY ASSEMBLY (S105-C)
Written by
in
S105-C 01 – BASIC BODY ASSEMBLY (S105-C)
Products
Position
Product
1
MAY 702329
2
MAY Y712001
4
MAY 712002
5
MAY 701678
6
MAY Y702319
7
MAY Y702306
8
MAY 702307
9
MAY 702300
10
MAY Y702301
11
MAY Y703487
11
MAY Y703419
11
MAY 702112
12
MAY 701666
13
MAY 702658
14
MAY 702333
15
MAY 702302
16
MAY 702556
17
MAY 702557
18
MAY 702898
19
MAY Y702284
20
MAY Y702711
20
MAY 715445
21
MAY 707161
22
MAY 701526
26
MAY 704355
26
MAY 701698
27
MAY 702729
27
MAY 704337
28
MAY 712000
29
MAY 700903
30
MAY Y708696
31
MAY 702745
32
MAY 715790
33
MAY 702462
34
MAY 703486
34
MAY 702337
35
MAY 708763
36
MAY 702697
37
MAY 702318
38
WP12990527 Whirlpool Microwave Screw
39
MAY Y701623
40
MAY Y702750
41
MAY Y707113
42
MAY 702746
43
MAY Y702526
44
MAY 701670
45
MAY 701671
46
MAY Y702299
48
MAY Y702350
49
MAY Y702360
50
MAY Y702359
51
MAY Y702548
52
MAY 702380
53
MAY 712005
54
MAY Y702607
54
MAY 702336
55
MAY Y702332
56
MAY Y702476
57
MAY 712006
57
MAY 702879
57
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
57
MAY 702751
58
MAY 702521
60
MAY 702523
61
MAY Y715443
62
MAY 701774
63
MAY Y702613
63
MAY 702612
64
MAY 702524
64
WP90767 Whirlpool Screw
←
