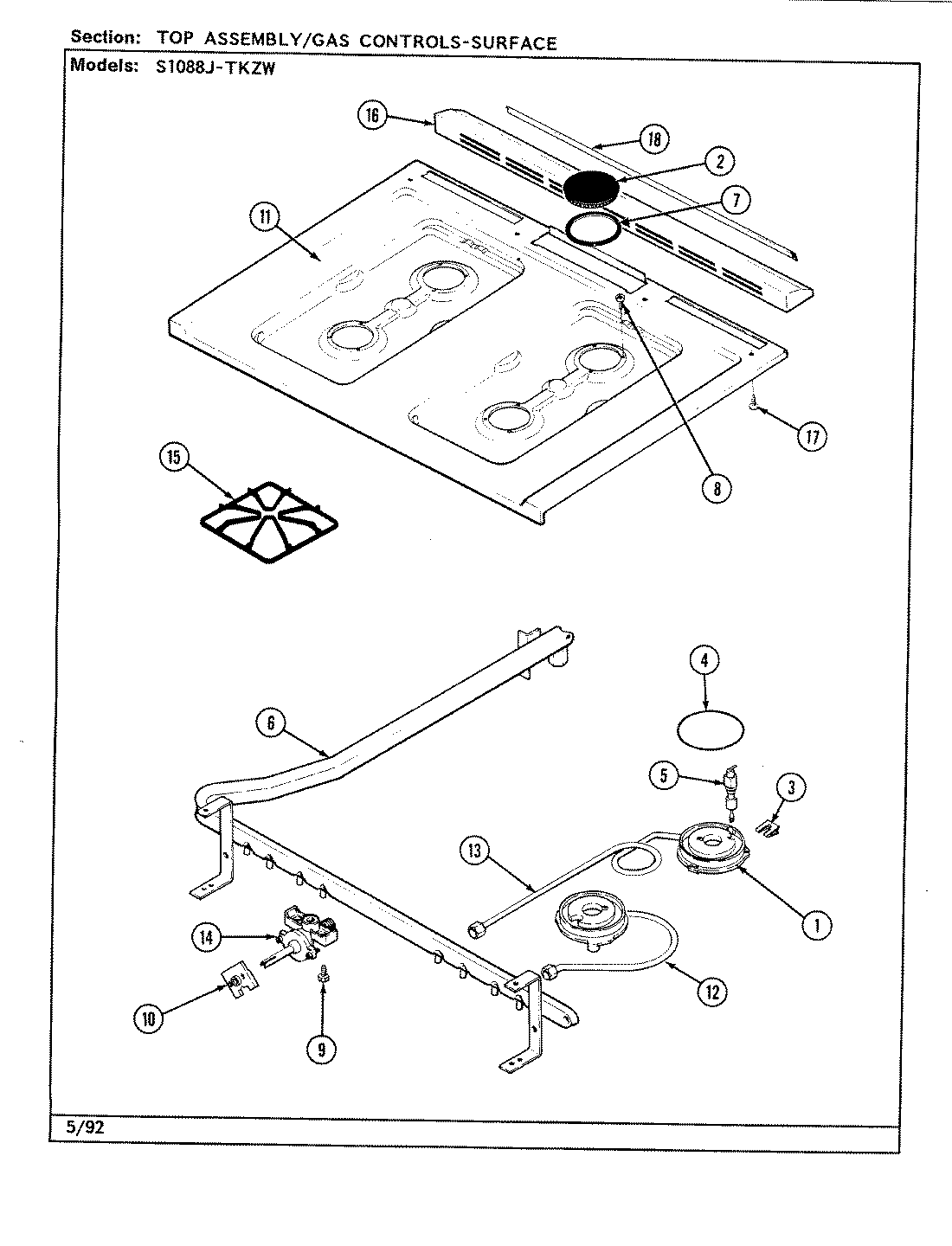

S1088J-TKZW 07 – TOP ASSY./CONTROL SYSTEM (SURFACE)

S1088J-TKZW 07 – TOP ASSY./CONTROL SYSTEM (SURFACE)

Written by

in

S1088J-TKZW 07 – TOP ASSY./CONTROL SYSTEM (SURFACE)

Products

PositionProduct
1MAY 7509P034-60
1MAY 7505P187-60
1MAY 5415A016-60
1MAY 5415A015-60
1MAY 5110A825-60
1MAY 5110A824-60
2MAY 7504P005-60
3MAY 7112P072-60
4MAY 7201P037-60
5MAY 7432P053-60
6MAY 7513P117-60
6MAY 7513P092-60
7MAY 2014F001-90
8MAY 7101P256-60
9MAY 7101P043-60
10MAY 7403P286-60
10WP7403P190-60 Whirlpool Switch
10MAY 7403P259-60
10MAY 7403P235-60
11MAY 2001F103-30
12MAY 7506P104-60
13MAY 7506P105-60
14MAY 7502P131-60
14MAY 7502P230-60
14MAY 7502P146-60
14MAY 7214P003-60
15MAY 5401A433-60
15MAY 2003W023-00
16MAY 7724P055-60
16MAY 7724P026-60
17WP59002061 Whirlpool Microwave Screw
18MAY 7201P040-60
