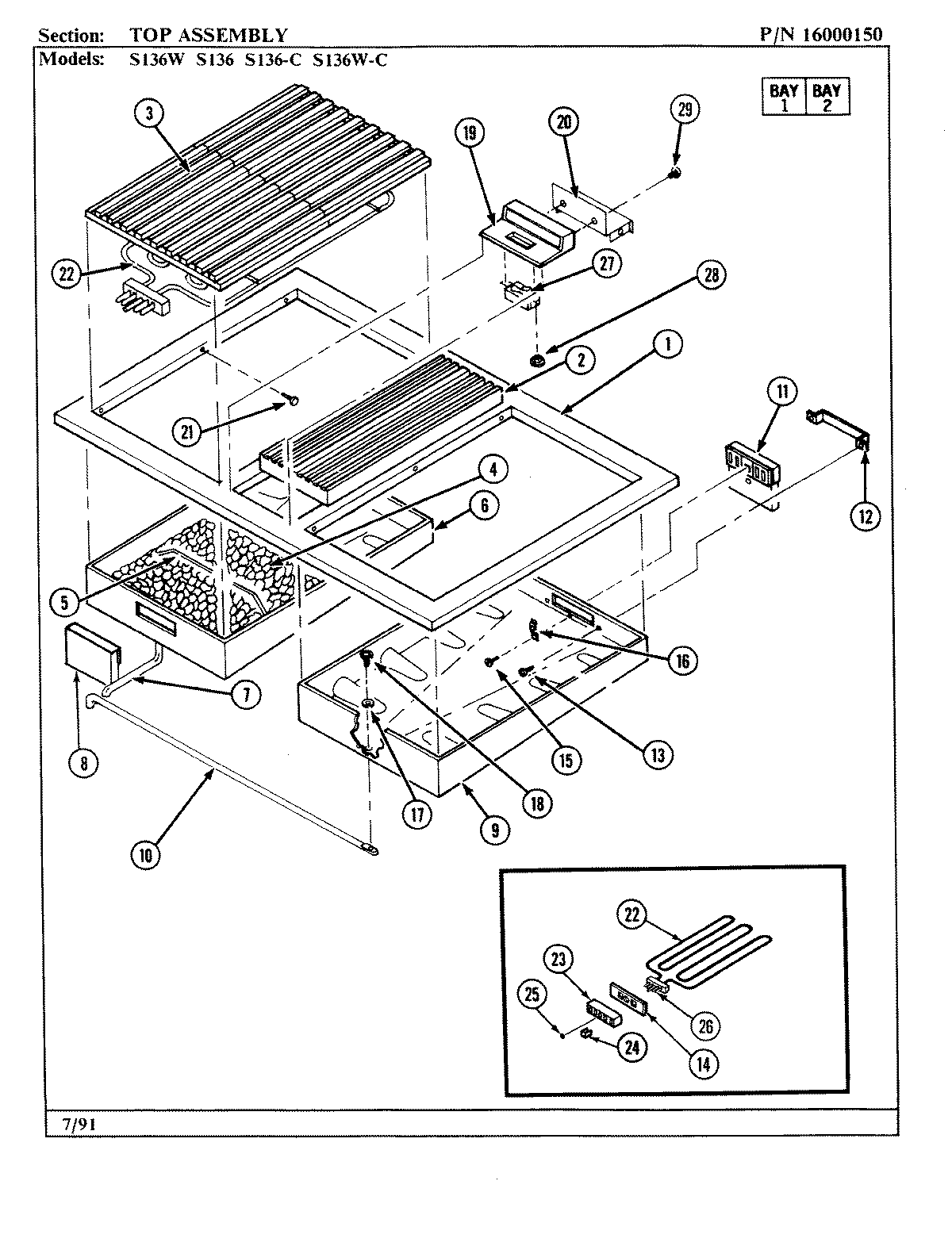

S136W 09 – TOP ASSEMBLY

S136W 09 – TOP ASSEMBLY

Written by

in

S136W 09 – TOP ASSEMBLY

Products

PositionProduct
1MAY 701853
2MAY Y04100631
2MAY 71001451
2MAY 704479
3MAY 703905
4MAY 708929
5700819 Whirlpool Oven Element Support
6MAY Y712200
6MAY Y712203
6MAY 712228
6MAY 701955
6MAY Y712197
7MAY Y702463
9MAY Y712202
9MAY Y712199
9MAY Y701956
9WP5708M007-60 Whirlpool Wire Harness
9MAY Y712229
9MAY Y712227
10MAY Y702327
11WPY702434 Whirlpool Receptacle
12MAY Y702698
13WP12990527 Whirlpool Microwave Screw
14MAY Y700449
15WP489128 Whirlpool Refrigerator Screw
16MAY Y702699
17MAY 702747
18MAY 702748
19MAY Y04100548
19MAY Y704477
19MAY 71001452
20MAY Y704233
21MAY Y707347
22MAY 04100006
23WPY708730 Whirlpool Terminal Block
24MAY Y700450
25Y708862 Whirlpool Speed Nut
26MAY Y704166
27MAY 704478
28MAY Y04100035
28MAY Y705023
29MAY Y708733
