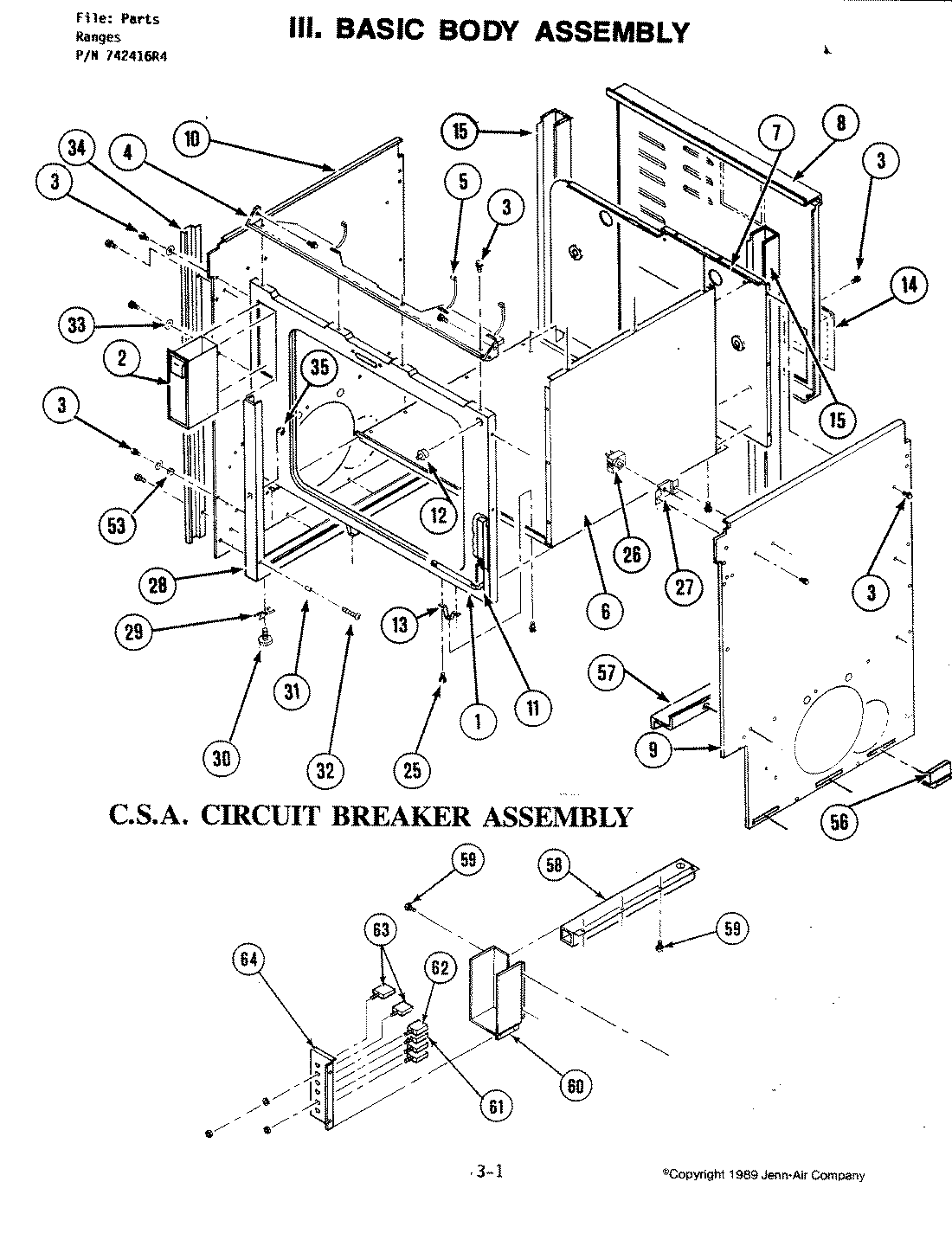

S160-C 01 – BASIC BODY ASSEMBLY (S160-C)
Written by
in
S160-C 01 – BASIC BODY ASSEMBLY (S160-C)
Products
Position
Product
1
MAY Y703449
1
MAY 715870
1
MAY 702329
2
MAY Y712001
4
MAY 712002
5
MAY 701678
6
MAY Y702319
7
MAY Y702306
7
MAY 703619
8
MAY 702307
9
MAY 702300
10
MAY Y702301
11
MAY Y703419
11
MAY Y703487
12
MAY 701666
14
MAY 702333
15
MAY 702302
16
MAY 702556
17
MAY 702557
18
MAY 702898
19
MAY Y702284
21
MAY 707161
22
MAY 701526
24
MAY Y712004
26
MAY 704335
26
MAY 701698
26
MAY 704355
27
MAY 702729
27
MAY 704337
28
MAY 712000
30
MAY Y708696
31
MAY 702745
32
MAY 715790
33
MAY 702462
34
MAY 702337
35
MAY 708763
36
MAY 702697
37
MAY 704154
37
MAY 702318
38
WP12990527 Whirlpool Microwave Screw
40
MAY Y702750
42
MAY 702746
43
MAY Y702526
44
MAY 701670
45
MAY 701671
46
MAY Y702299
48
MAY Y702350
49
MAY Y702359
50
MAY Y702360
51
MAY Y702548
52
MAY 702807
53
MAY 712005
54
MAY 702336
54
MAY Y702607
55
MAY Y703357
56
MAY Y702476
57
MAY 703831
57
MAY 703832
57
MAY 703838
57
MAY 702751
57
MAY 702743
58
MAY 703492
59
WP90767 Whirlpool Screw
60
MAY 702523
61
MAY Y715443
62
MAY 701774
63
MAY Y702613
63
MAY 703834
64
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
64
MAY 702524
65
MAY 702806
66
MAY Y703732
67
MAY 703264
68
MAY 701706
←
