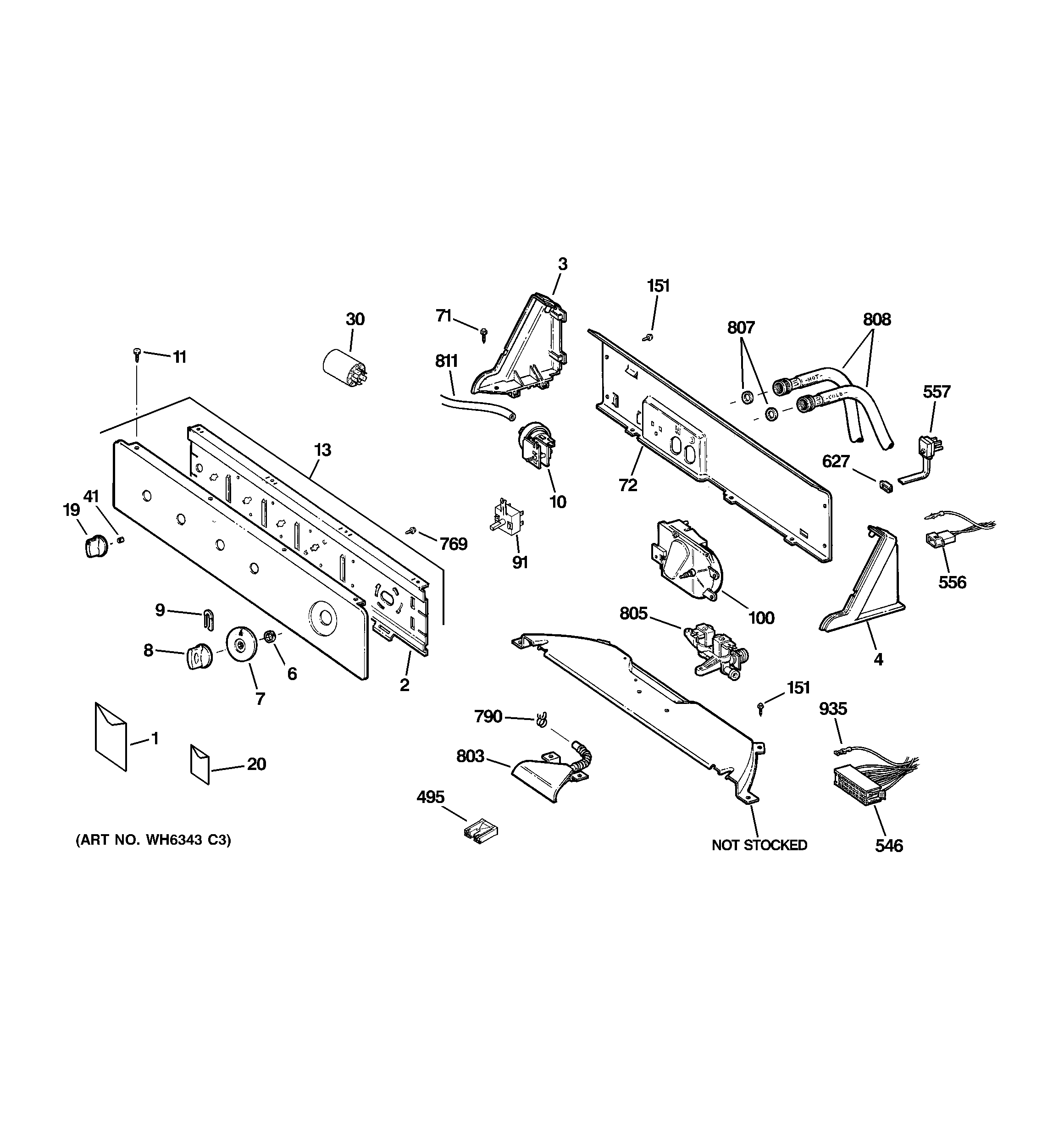

S2100E6WW CONTROLS & BACKSPLASH

S2100E6WW CONTROLS & BACKSPLASH

Written by

in

S2100E6WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-16503
1GEN 31-15441
1PM MANUAL U&C P49-90248
2GEN WH46X10081
3GEN WH42X2397
4GEN WH42X2398
6WH02X10093 GE Washer Compression Ring
7WH11X10033 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10603
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
20GEN WH49X10041
30WH12X10408 GE Power Line Filter
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10118
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X10295
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
495WD21X10355 GE Dishwasher Water Valve Housing Special
546GEN WH12X10205
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
