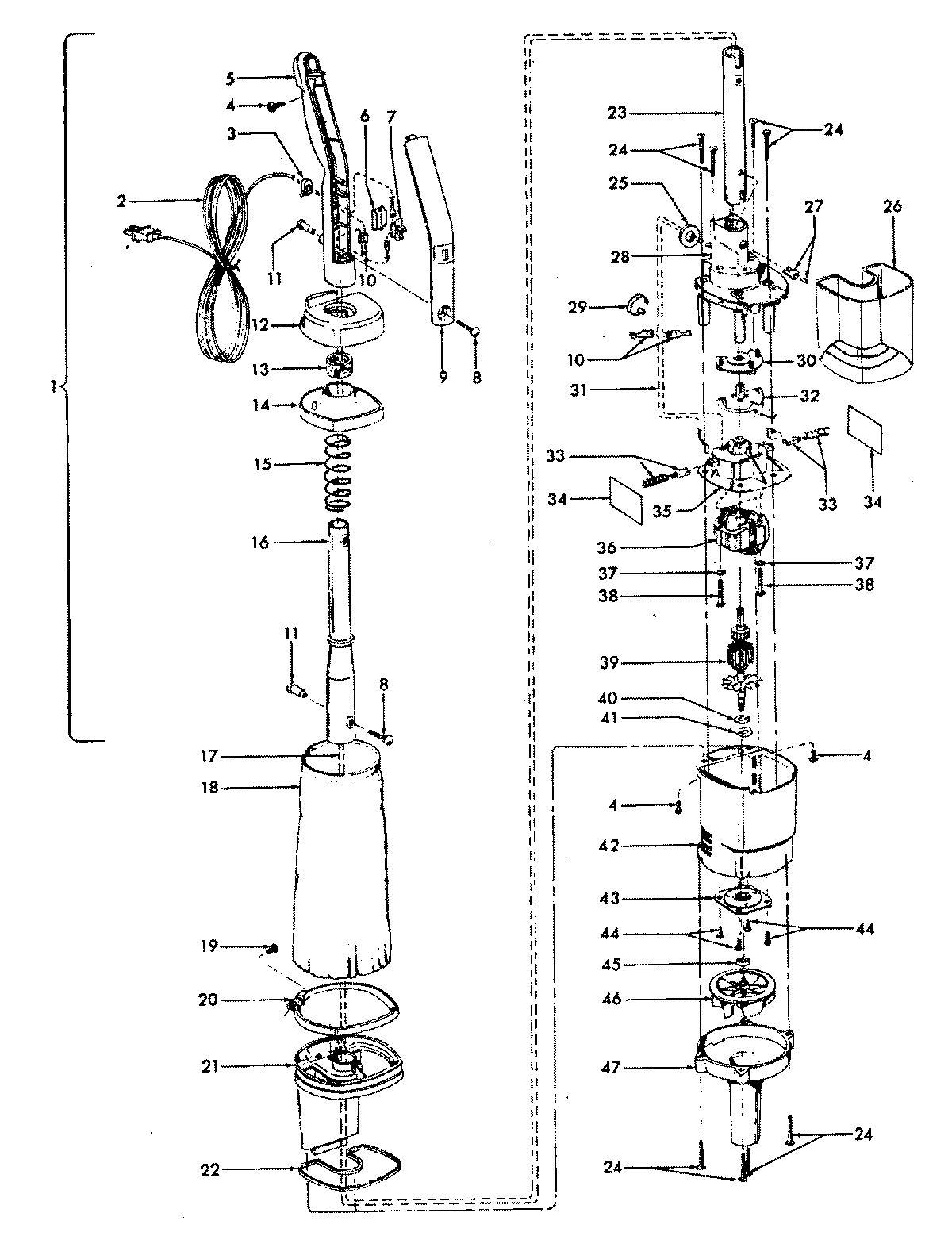

S2149— 01 – MOTOR ASSEMBLY, BAG & MOTORHOUSING
Written by
in
S2149— 01 – MOTOR ASSEMBLY, BAG & MOTORHOUSING
Products
Position
Product
1
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2
MAY 46363154
3
MAY 27482301
4
MAY 21447003
5
MAY 39454065
6
MAY 37258082
7
MAY 28177027
8
MAY 21631302
9
MAY 37226059
10
MAY 012227–
11
MAY 32277021
12
MAY 37225016
13
MAY 38781012
14
MAY 37225010
15
MAY 38315014
16
MAY 32458006
17
MAY 46312003
18
MAY 43662032
18
MAY 43662034
20
MAY 36171046
21
MAY 42223175
21
MAY 42223176
21
MAY 42223178
22
MAY 34123036
23
MAY 32355014
24
MAY 21434287
25
MAY 21329104
26
MAY 38775044
27
MAY 21264022
28
MAY 37196103
29
MAY 27479307
30
MAY 38562023
31
MAY 46143065
32
MAY 38452090
33
MAY 47318022
34
MAY 34152010
35
MAY 42196005
36
MAY 45312101
37
MAY 21338030
38
MAY 21479438
39
MAY 44731073
40
MAY 21378012
41
MAY 21378013
42
MAY 37193024
42
MAY 37193025
42
MAY 37193022
43
MAY 43265006
44
MAY 21447218
45
MAY 31146008
46
MAY 38755018
47
MAY 37196117
47
MAY 37196118
47
MAY 37196150
48
MAY 56512127
48
MAY 43414180
48
MAY 58353011
48
MAY 58212007
←
