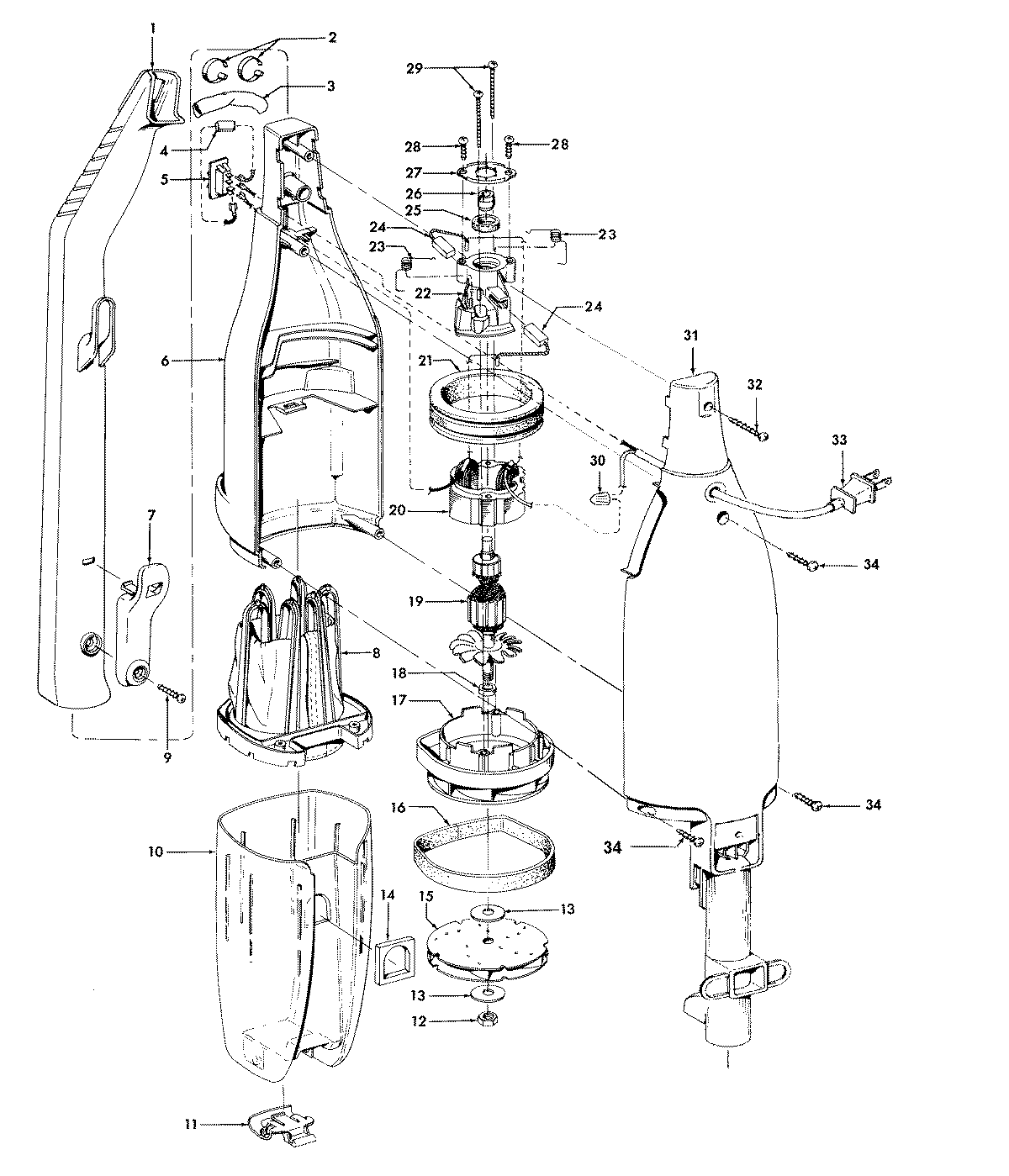

S2515 01 – MOTOR ASSEMBLY, BAG & MOTORHOUSING
Written by
in
S2515 01 – MOTOR ASSEMBLY, BAG & MOTORHOUSING
Products
Position
Product
1
MAY 39454061
2
MAY 27479307
3
MAY 66655405
4
MAY 47831008
5
MAY 28164280
6
MAY 37222008
7
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8
MAY 43615087
8
MAY 43615073
10
MAY 43645046
10
MAY 43645047
11
MAY 36153004
12
MAY 21642021
13
MAY 21312818
14
MAY 38783022
15
MAY 43566019
16
MAY 34123048
17
MAY 42193024
18
MAY 31148011
19
MAY 44731085
20
MAY 45312047
21
MAY 31195005
22
MAY 37193026
23
MAY 38353014
24
MAY 47313010
25
MAY 21329108
26
MAY 24118214
27
MAY 36134006
28
MAY 214793DA
29
MAY 21479443
30
MAY 27618508
31
MAY 37222013
32
MAY 21447236
33
MAY 46363110
34
MAY 21447072
35
MAY 58242008
35
MAY 38765021
35
MAY 58364018
35
MAY 43414180
35
MAY 56512176
←
