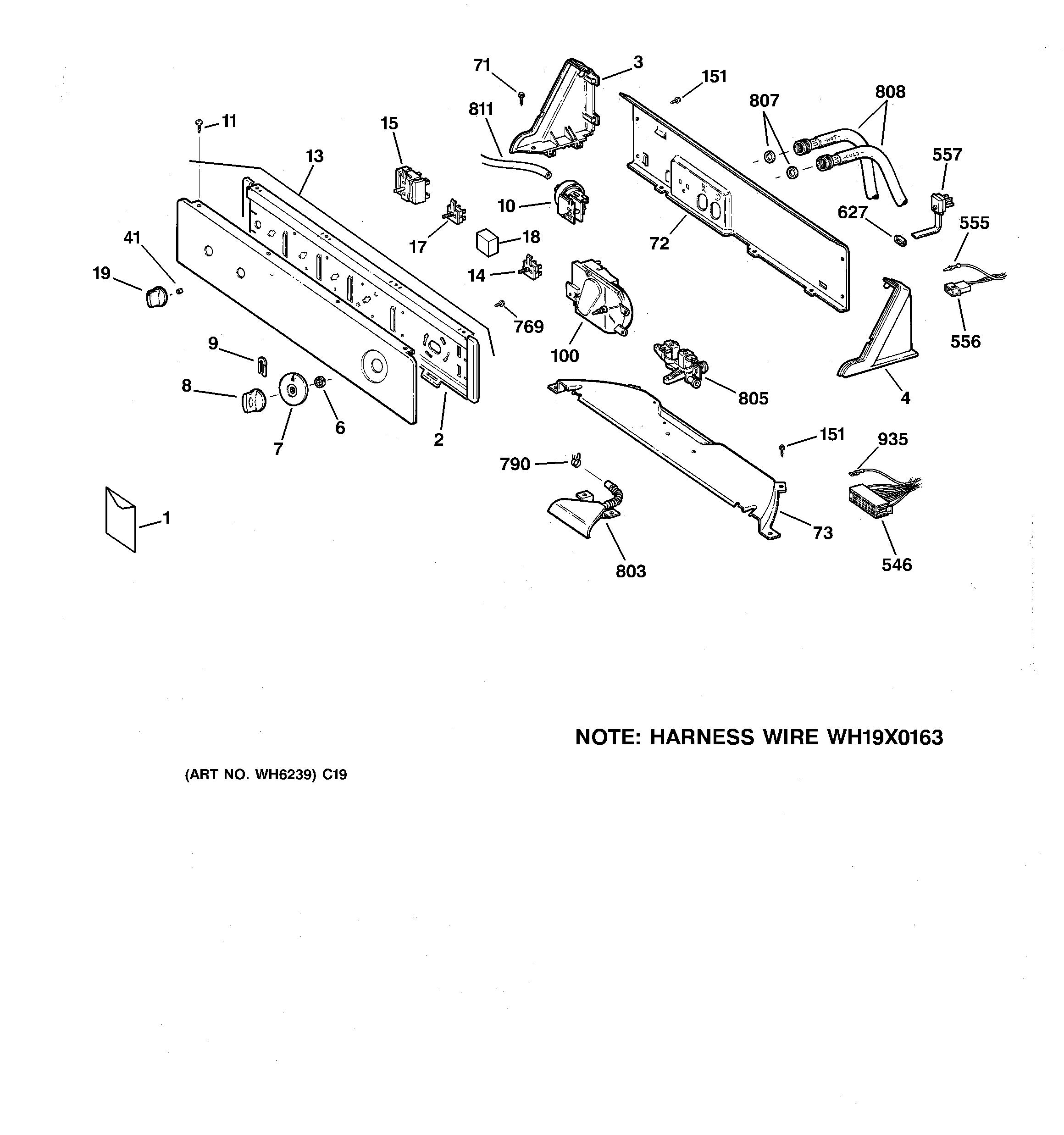

S3200Y2WW CONTROLS & BACKSPLASH

Products

Position	Product
1	GEN 31-15429
1	GEN 49-90003
1	INSTRUCTION INSTALL
2	GEN WH46X10031
3	GEN WH42X2397
4	GEN WH42X2398
6	GEN WH02X0650
7	WH11X10033 GE Washer Control Timer Dial
8	WH01X10310 GE Washer Control Knob
9	WH1X2117 GE Timer Knob Spring Clip
10	WH12X10076 GE Washer Water Pressure Switch
11	SCREW 8-18 AB FLT 9/16 S
13	GEN WH42X10145
14	GEN WH12X1007
15	GEN WH12X10053
17	GEN WH12X1019
18	GEN WH12X10090
19	WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
41	GEN WH01X10106
71	WH2X1205 GE Screw 8-18
72	GEN WH46X10035
73	GEN WH46X10047
100	GEN WH12X1021
494	WD1X1459 GE Dishwasher Insulation Housing
546	GEN WH12X0870
555	GEN WB17X5053
556	GEN WH12X0497
557	GEN WH19X0311
627	GEN WH12X10025
769	WB1X500D GE Oven Screw Package
790	WH1X2036 GE UNIX Clamp
803	HOSE & WATER INLET
805	WATER VALVE
807	WH2X42D GE Washer Pack of 12
808	WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811	WH41X365 GE Washer Water Level Pressure Switch HOSE
935	GEN WD01X1434
