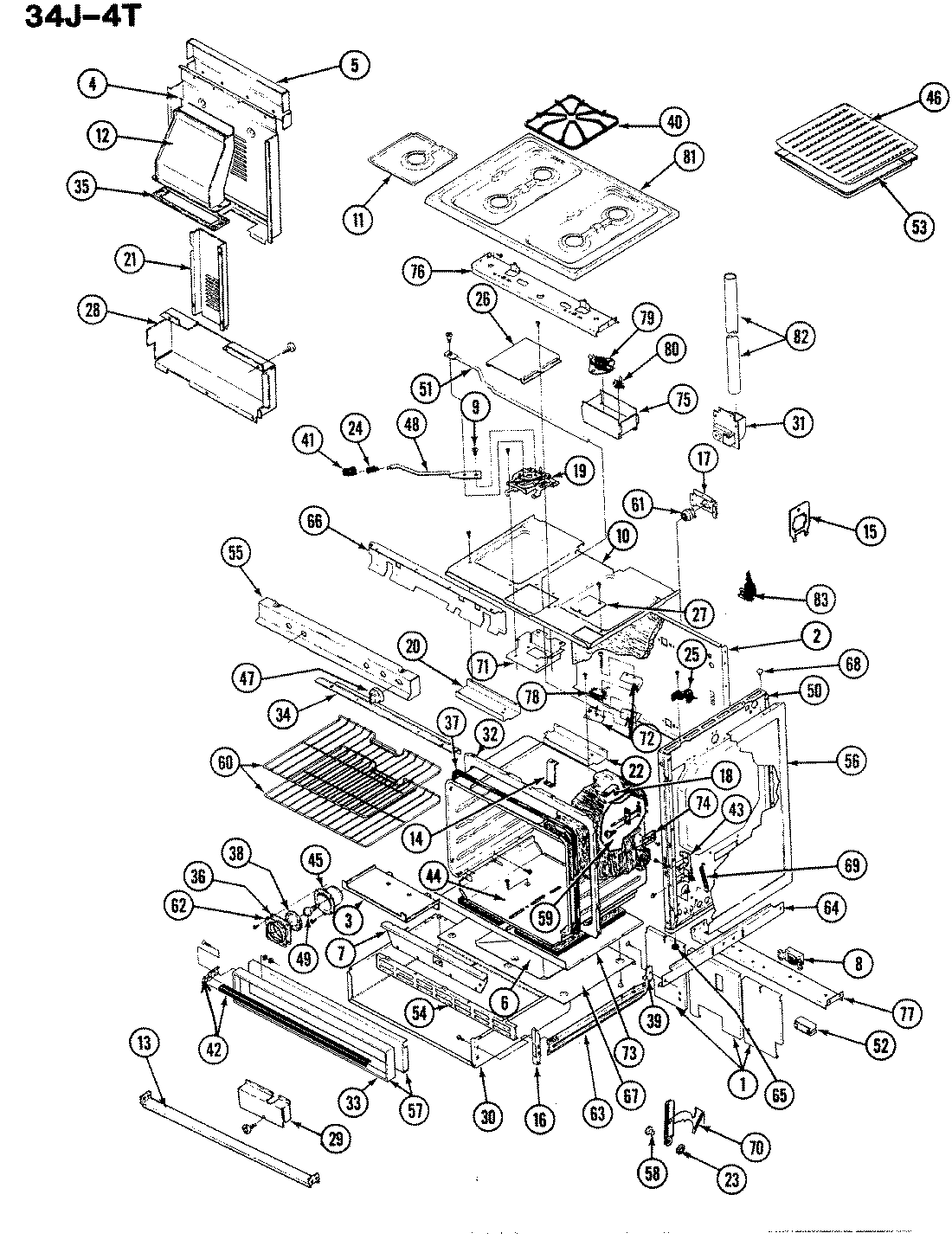

S34JK-4TKXW 04 – TOP ASSEMBLY/BODY

Products

Position	Product
1	MAY 4002F066-45
2	MAY 4002F144-80
2	MAY 4002F094-80
3	MAY 7101P273-60
3	MAY 3601W130-45
4	MAY 3601F112-51
5	MAY 3601F107-51
6	MAY 3601F116-45
7	MAY 3601F106-51
7	MAY 7101P058-60
7	SCREW
7	MAY 3601W125-19
7	MAY 3601W125-15
8	MAY 7401P015-60
8	MAY 7412P005-60
8	MAY 7401P011-60
9	MAY 7116P003-60
10	MAY 4011F200-80
10	MAY 4011F178-80
10	MAY 2205F020-15
10	MAY 4011F157-80
10	MAY W10124403
10	MAY 2205F020-21
11	MAY 7725P016-60
12	MAY 4006W026-15
13	MAY 3802F050-45
13	MAY 3802F076-51
14	MAY 3801F093-45
14	WP3387230 Whirlpool Screw
15	MAY 3801F022-45
16	MAY 3801F115-51
17	MAY 3801F024-51
18	MAY 3801F218-51
18	MAY 3801F198-51
18	MAY 7101P289-60
18	MAY 3801F047-34
18	MAY 3801F049-34
18	MAY 7101P061-60
19	MAY 8002P021-60
20	MAY 3818F025-45
21	MAY 3818F032-80
22	MAY 3805F002-34
22	MAY 3818F027-45
23	MAY 7112P019-60
24	MAY 7112P003-60
25	MAY 7112P029-60
25	MAY 7112P030-60
26	MAY 4005F137-80
27	MAY 4005F139-51
28	MAY 4005F396-80
28	MAY 4005F174-80
29	MAY 4005F258-51
30	MAY 3405F008-80
31	MAY 7427P002-60
33	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
34	MAY 4012F013-80
34	WP98008545 Whirlpool Screw
35	MAY 7201P014-60
35	MAY 7201P013-60
36	MAY 7201P015-60
37	MAY 7103P077-60
37	WP74003976 Whirlpool Screw
37	MAY 7101P064-60
37	MAY 7201P036-60
38	MAY 7902P057-60
39	MAY 8016P005-60
39	MAY 7101P013-60
40	MAY 2003W023-00
40	MAY 7518P008-60
41	MAY 7701P068-60
42	MAY 7701P047-60
43	WP4159193 Whirlpool Screw
43	MAY 3418A029-34
43	MAY 3418A030-34
44	MAY 4001F060-45
44	MAY 4001F036-45
45	MAY 4001F020-19
45	MAY 4001F020-23
46	MAY Y3413F01619
46	MAY 3413F002-23
47	MAY 7733P053-60
47	MAY 7733P059-60
47	MAY 7733P038-60
48	MAY 7101P018-60
