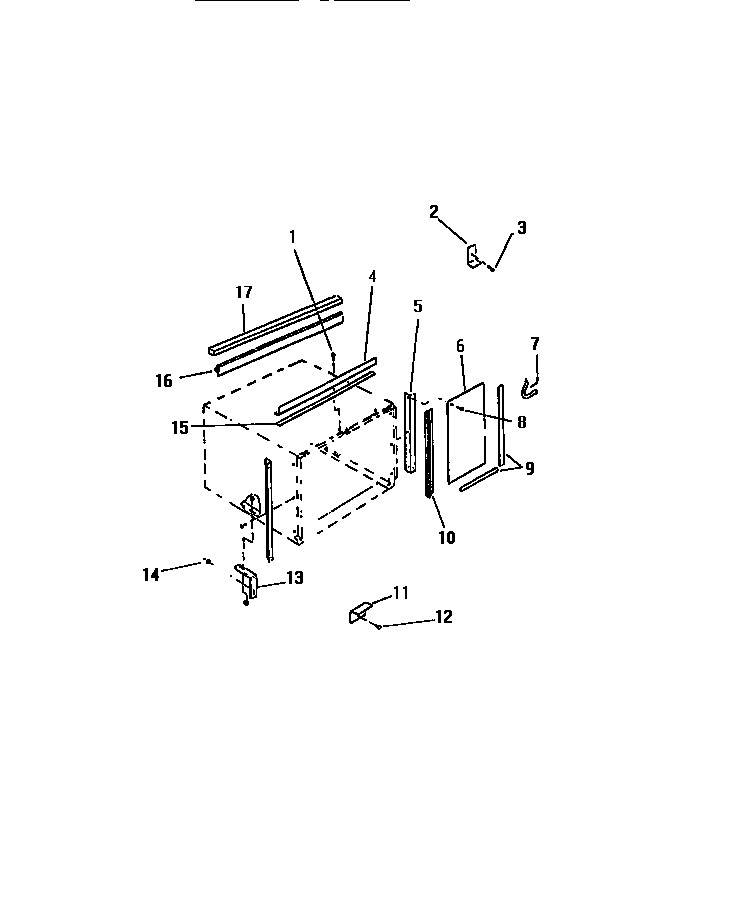

S418B2SA 05 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
1	WCI C500637
2	BRACKET-BASE
3	WCI G100773
4	TOP FRAME
5	MEMBR-SIDE FRAME (2)
6	WINDOW PANEL
7	WCI G117313
8	154419403 Frigidaire Dishwasher Screw
9	SEAL-SIDES & BTM
10	WCI G149182-05
11	BRKT-SILL SUPT (2)
12	WCI G100324
13	BRKT-TRACK SUPT (2)
14	NUT-MOTOR MTG
15	SEAL-TOP FRAME
16	WCI G149181-03
17	WCI G145337-10
