S4200B1WW CONTROLS & BACKSPLASH

S4200B1WW CONTROLS & BACKSPLASH

Written by

in

S4200B1WW CONTROLS & BACKSPLASH

Products

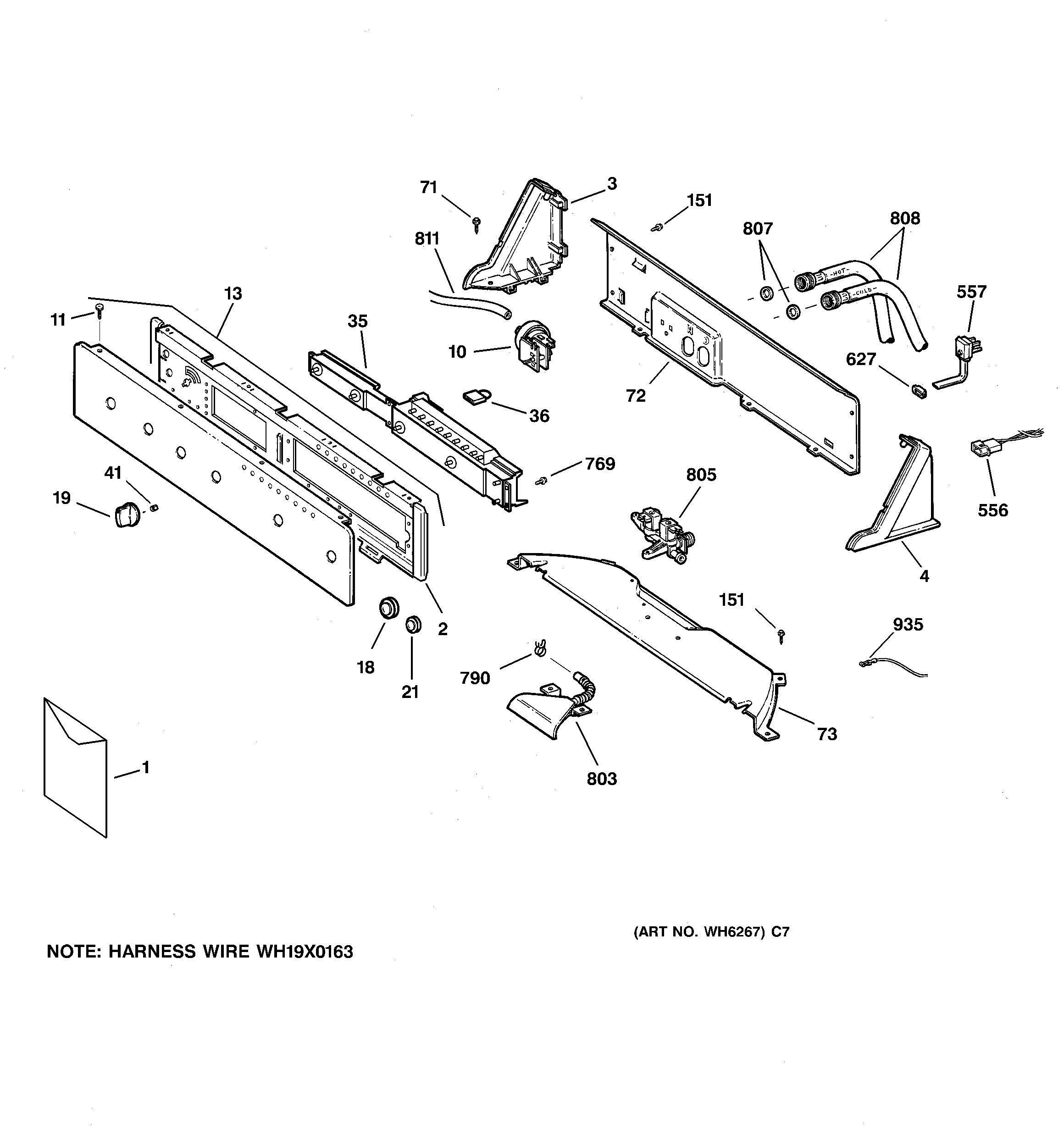

PositionProduct
1GEN 49-90087
1GEN 31-15484
1GEN 31-15441
2GEN WH46X10048
3GEN WH42X2397
4GEN WH42X2398
10WH12X10093 GE Press Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10325
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
21WH01X10088 GE Start/stop Switch Button
35GEN WH12X10195
36GEN WH12X10110
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10035
73GEN WH46X10080
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
556GEN WH12X0497
557GEN WH19X10021
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
