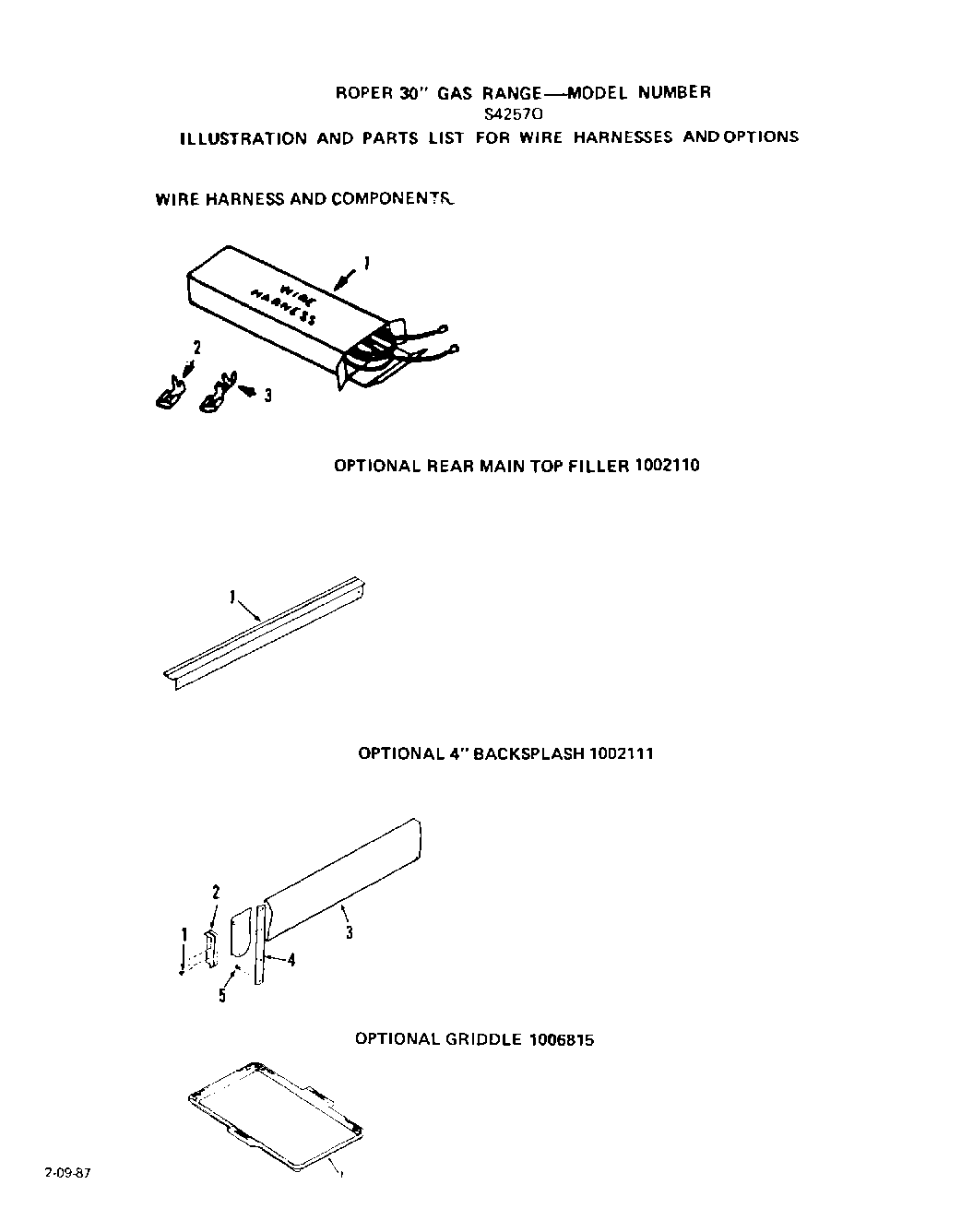

S4257^0 02 – MAIN TOP

Products

Position	Product
	Screw 10-16×7/16“
	xParts Not Shown On Illustration
	xParts Not Shown On Illustration
	xSheet Instruction
	xInstructions Installation
1	Set-On Griddle
1	Filler-Main Top Rear
1	Wire Harness (Module)
1	Screw 6-32×3/8“
1	Wire Harness (Oven Light)
1	Wire Harness (Switch-Gas Valve)
2	End Cap
2	Flag Terminal
3	Backsplash
3	Faston Terminal (3/16“)
3	Faston Terminal (1/4“)
4	Backplash Support
