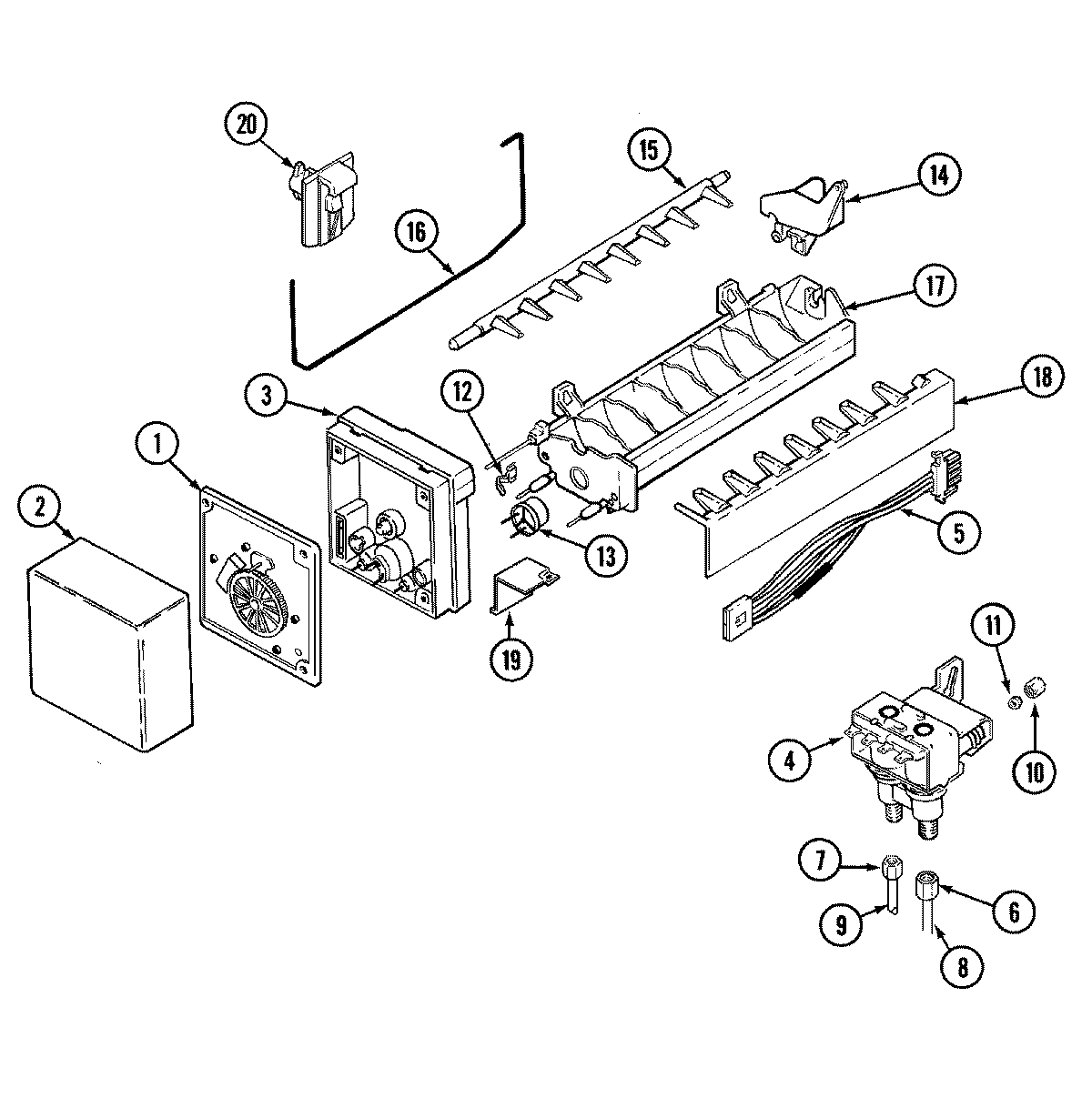

| 1 | WP489478 Whirlpool Refrigerator Screw |
| 1 | MAY 61001014 |
| 2 | MAY 61005374 |
| 3 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 3 | SCREW |
| 4 | MAY 61002819 |
| 4 | MAY 61003618 |
| 5 | MAY 61004436 |
| 6 | MAY 69583-2 |
| 7 | WP627018 Whirlpool Refrigerator Nut |
| 8 | SEE NOTE GROUND WIRE, GREEN |
| 9 | MAY 67579-26 |
| 10 | WP245183 Whirlpool Nut |
| 11 | WP487627 Whirlpool Refrigerator Sleeve |
| 12 | WP2315522 Whirlpool Refrigerator Clip |
| 13 | MAY 95093-1 |
| 13 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 14 | WP628356 Whirlpool Refrigerator Fill Cup |
| 15 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 16 | MAY 61004136 |
| 17 | MAY Y06100047 |
| 18 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 19 | BRACKET, MODULE & HEATER |
| 19 | MAY 95108-1 |
| 20 | WP61005028 Whirlpool Refrigerator Support |
