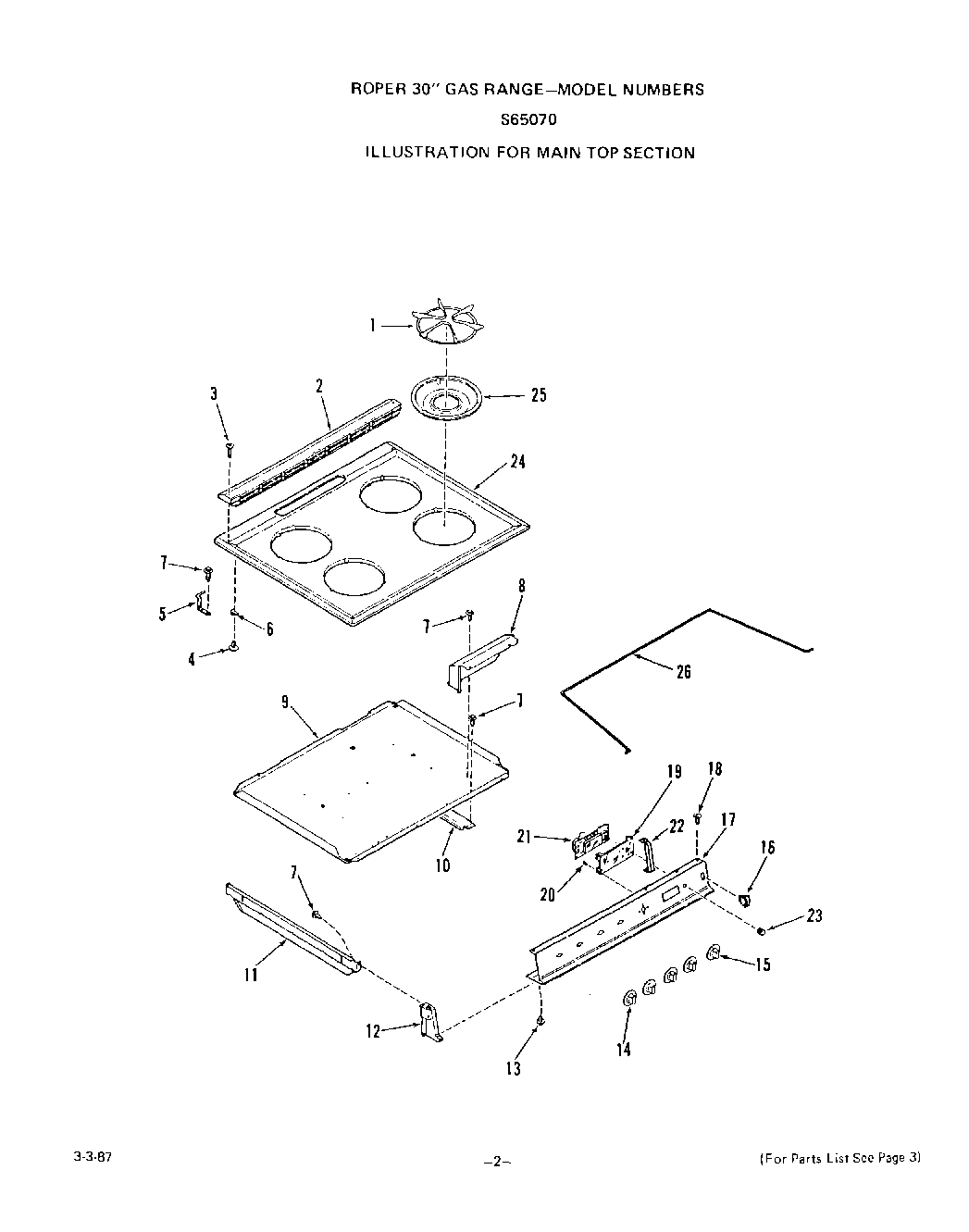

S6507^0 03 – BODY

Products

Position	Product
1	Top Grate (4 Req)
2	Cover-Vent
3	Screw 6-32
4	Screw 10-32×5/16“
5	Hinge-Main Top (Right)
5	Hinge-Main Top (Left)
5	Hinge-Main Top
6	Bracket-Hinge
7	Screw 10-16×7/16“
8	Cover-Wire
9	Burner Box Bottom
10	Stiffener-Burner Box Bottom
11	Extension-Burner Box Side
12	End Cap-Manifold Panel
12	End Cap-Manifold Panel (Right)
12	End Cap-Manifold Panel (Left)
13	Screw-10-32×1/2“
14	Knob-Gas Valve (4 Req)
15	Knob-Thermostat
16	Switch-Oven Light
17	Manifold Panel
19	Clock Lens
20	Screw 6-32×5/16“
21	Clock
22	Bracket-Clock
23	Knob-Clock
24	Main Top
25	Aeration Pan (4 Req)
26	Rod-Main Top Support
