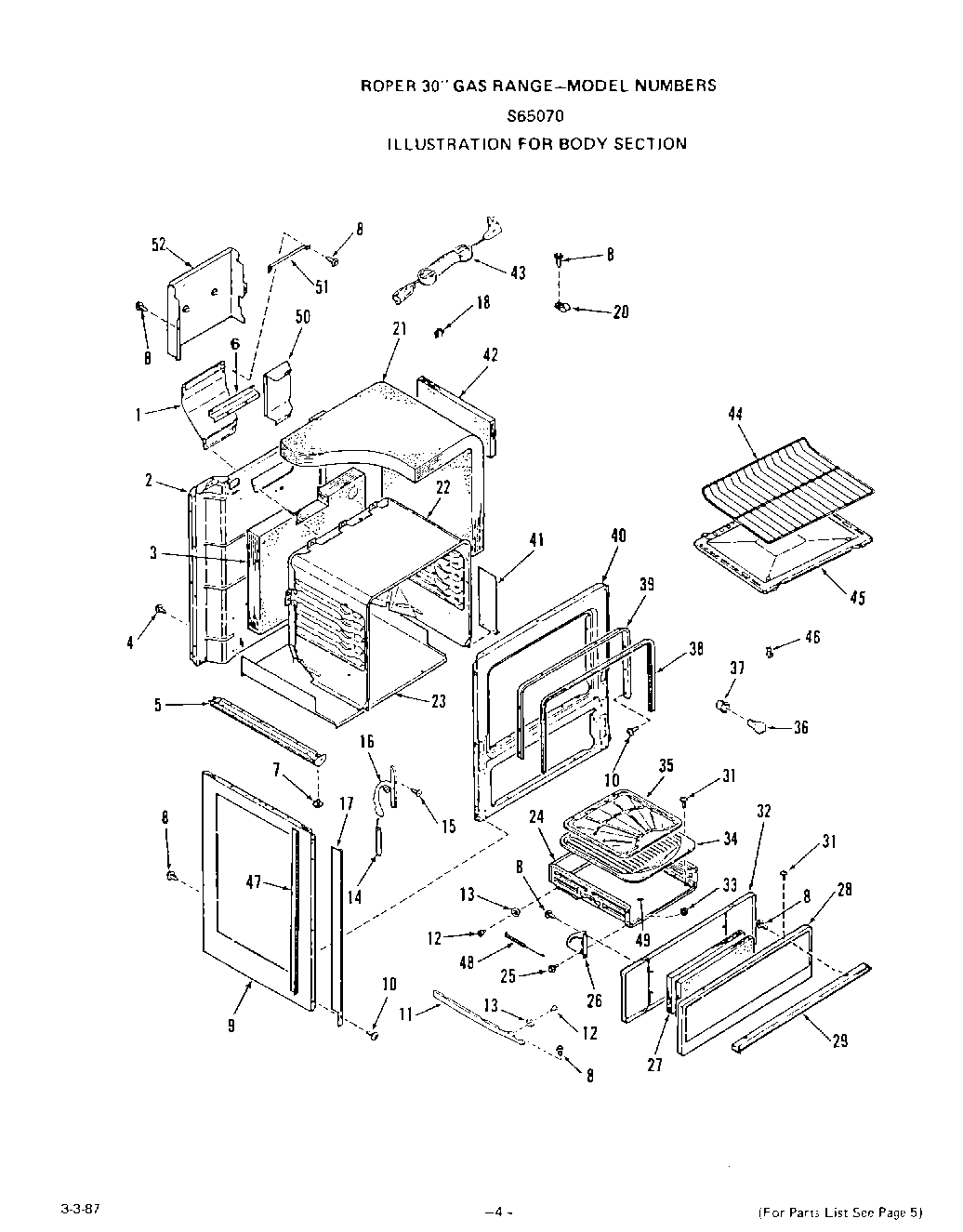

S6507^0 04 – BURNER

Products

Position	Product
1	Flue Deflector
2	Support, Frame
3	Insulation-Oven Back
4	WP112432 Whirlpool Nut Assembly
5	Base w/Levelers (Lt. or Rt.)
6	Flue Deflector Support
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	Body Side-Lt. or Rt.
10	Screw 10ABx1/2“
11	Broiler Drawer Guide (Inc`s. 12, 13)
11	WP691371 Whirlpool Belt
11	Right
12	Shoulder Rivet
13	Roller
14	Spring-Oven Door (Lt. or Rt.)
15	Screw
16	Hinge-Oven Door (Left)
16	Hinge-Oven Door (Right)
16	Hinge-Oven Door
17	Trim-Side
17	Trim-Side (Right)
17	Trim-Side (Left)
18	Disconnect
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
26	Hinge-Broiler Drawer
28	Front Panel-Broiler Door
29	Handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14451A Models)
33	Keps Nut 10-24
34	Pan-Broiler (14451A M
35	WPL 331588
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	Front Frame
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327084
46	Thermostat Bulb Clip (2 Required)
47	Extension Side Trim
48	WPL 327481
49	WPL 331554
50	WPL 333657
51	WPL 331815
52	Shield-Flue Deflector
