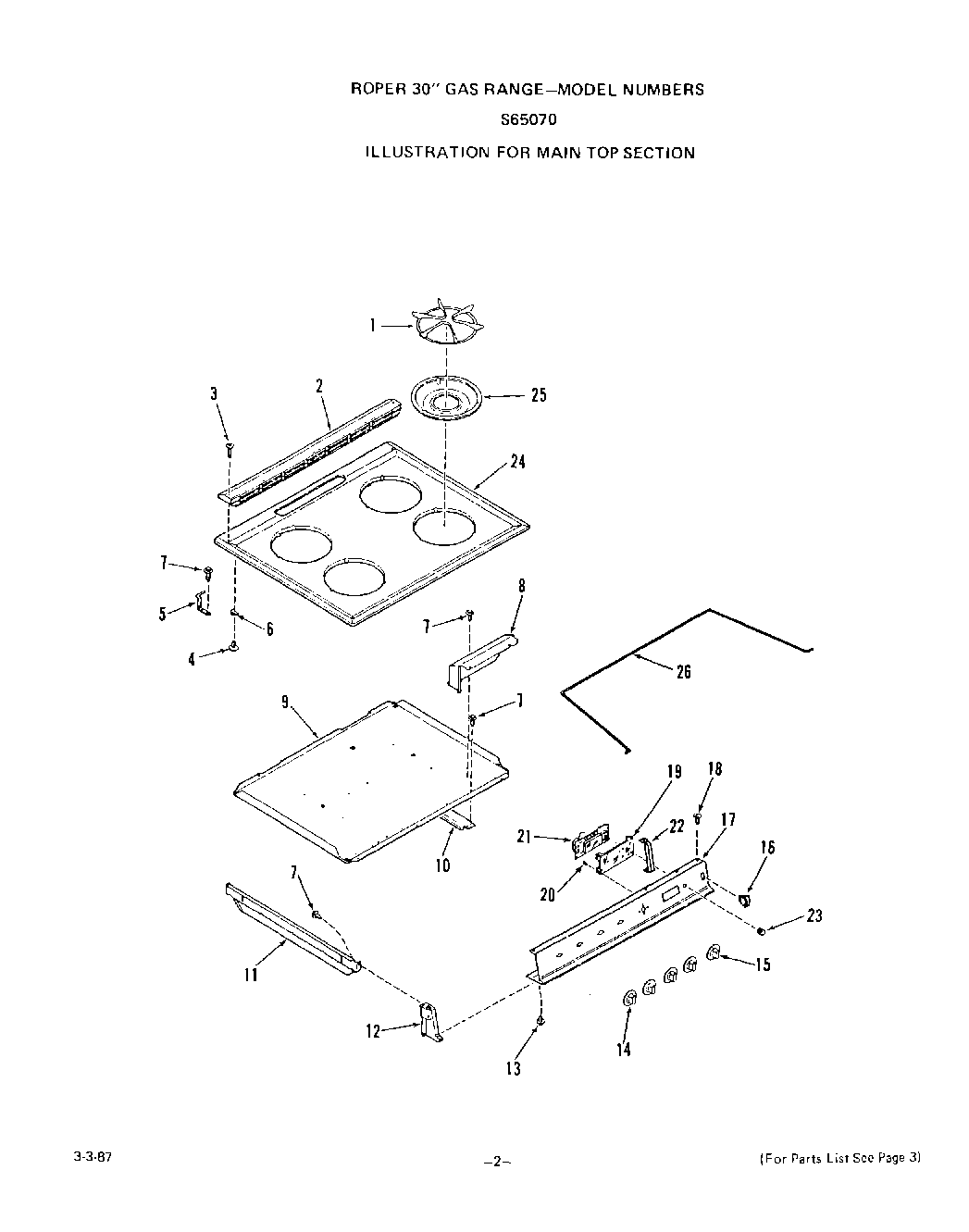

| 1 | Top Grate (4 Req) |
| 2 | Cover-Vent |
| 3 | Screw 6-32 |
| 4 | Screw 10-32x5/16`` |
| 5 | Hinge-Main Top (Right) |
| 5 | Hinge-Main Top (Left) |
| 5 | Hinge-Main Top |
| 6 | Bracket-Hinge |
| 7 | Screw 10-16x7/16`` |
| 8 | Cover-Wire |
| 9 | Burner Box Bottom |
| 10 | Stiffener-Burner Box Bottom |
| 11 | Extension-Burner Box Side |
| 12 | End Cap-Manifold Panel (Right) |
| 12 | End Cap-Manifold Panel (Left) |
| 12 | End Cap-Manifold Panel |
| 13 | Screw-10-32x1/2`` |
| 14 | Knob-Gas Valve (4 Req) |
| 15 | Knob-Thermostat |
| 16 | Switch-Oven Light |
| 17 | Manifold Panel |
| 19 | Clock Lens |
| 20 | Screw 6-32x5/16`` |
| 21 | Clock |
| 22 | Bracket-Clock |
| 23 | Knob-Clock |
| 24 | Main Top |
| 25 | Aeration Pan (4 Req) |
| 26 | Rod-Main Top Support |
