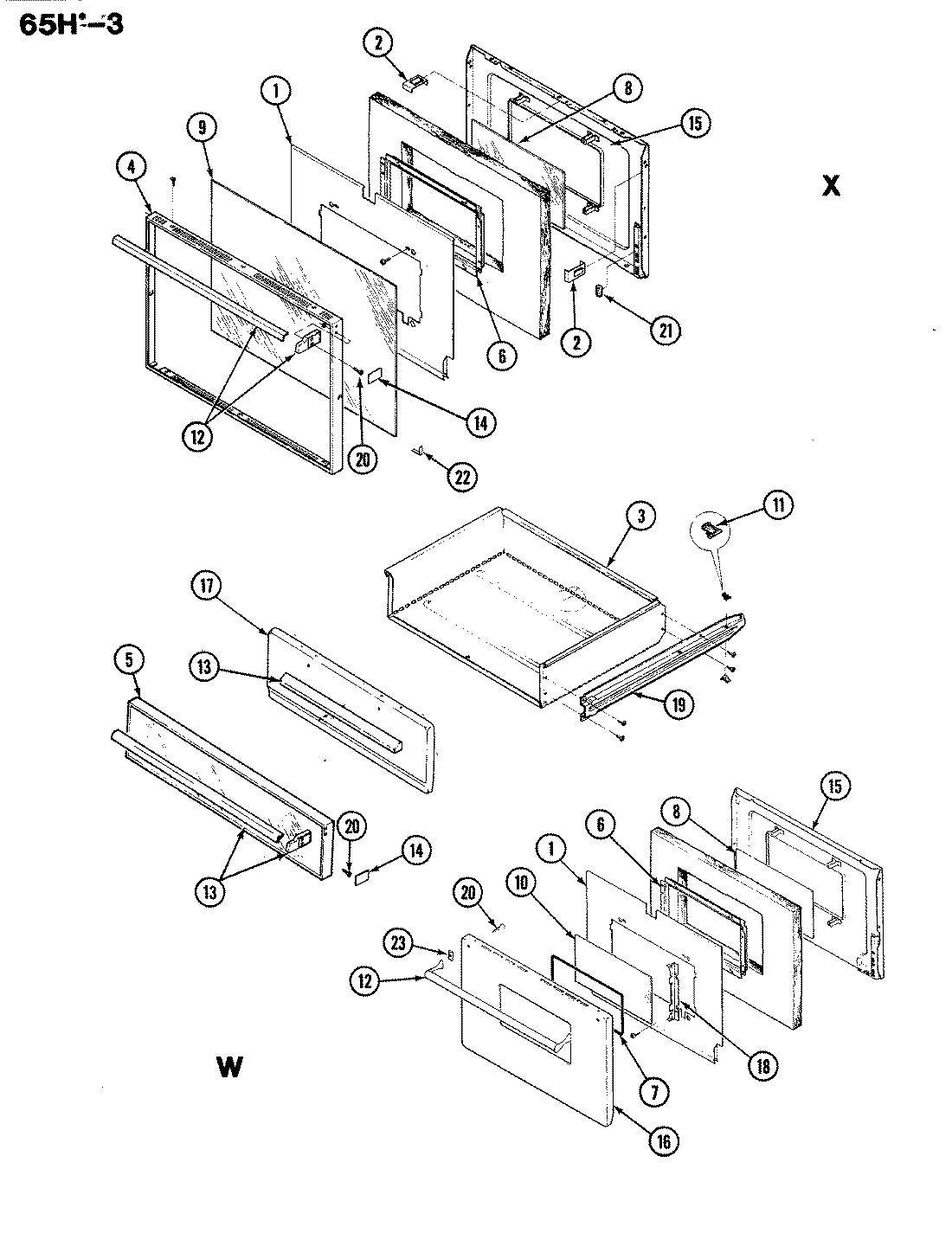

S65HA-3LX 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 3601F094-51
2	CLIP, DOOR
3	MAY 3405F008-80
4	MAY 7706P243-60
6	MAY 3603F013-80
8	MAY 7902P035-60
9	MAY 7902P274-60
11	MAY 8016P004-60
11	MAY 8016P005-60
13	MAY 7701P047-60
14	MAY 7728P012-60
15	MAY 2402W091-16
17	MAY 5425A021-70K
19	MAY 3406F020-80
19	MAY 3406F025-51
20	MAY 7101P123-60
21	MAY 7208P011-60
22	MAY 8010P045-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
