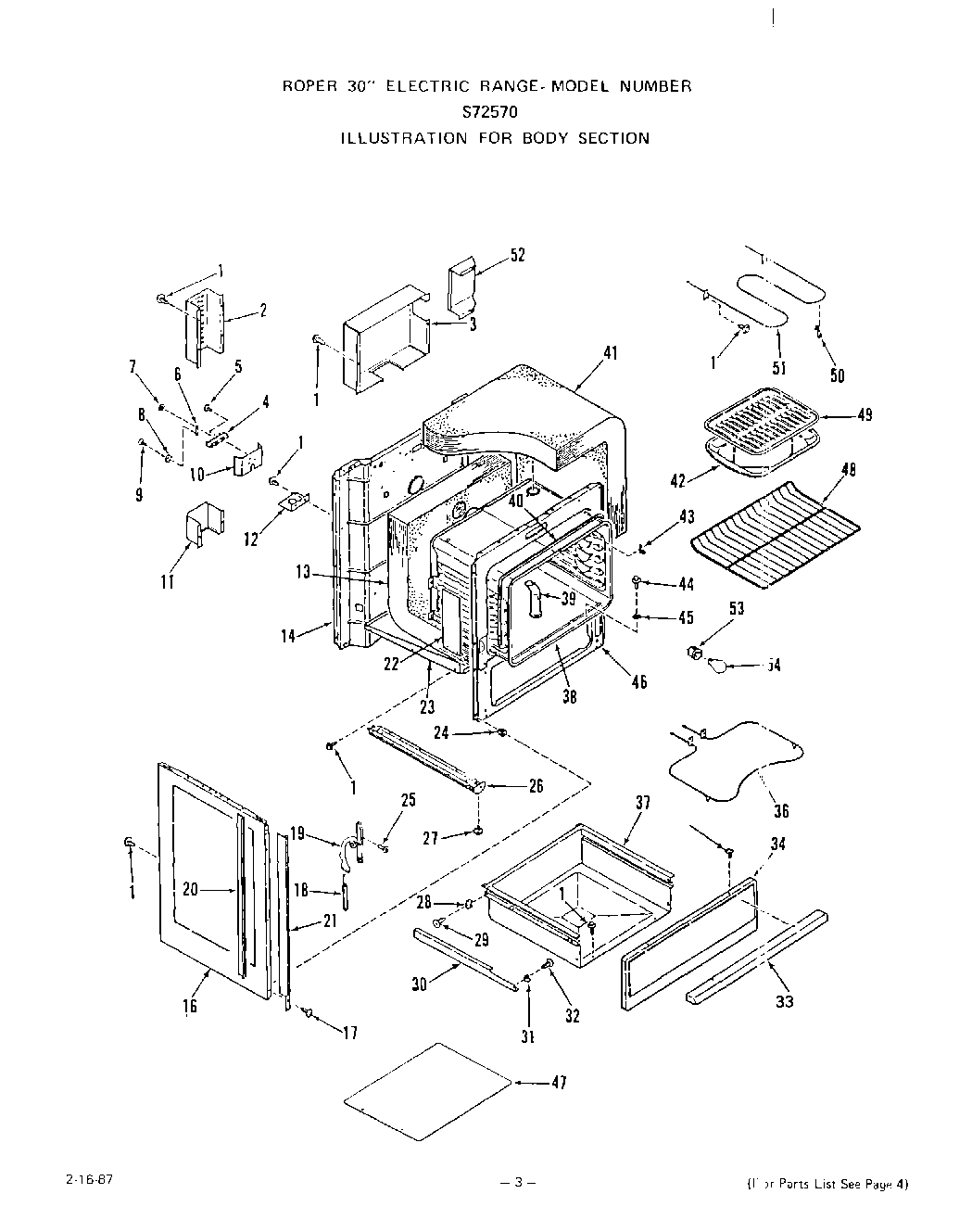

S7257X0 03 – LIT/OPTIONAL 4“ BACKSPLASH

Products

Position	Product
1	Screw 10-16x7/16``
2	Shield-Upper Wire
3	WPL 333128
4	Junction Block
5	Screw 10-32x1``
6	Ground Strap
7	Hex Nut 10-32
8	Washer
9	Screw 10-32x7/16``
10	Insulation-Service Cord
11	Wire Shield-Lower
12	Range Service Mounting Plate
13	Insulation-Oven Back & Bottom (1 Piece)
14	Main Back
16	Body Side-Lt. or Rt.
17	Screw 8ABx5/8``
18	Spring-Oven Door (Lt. or Rt.)
19	Right
19	Left
19	Oven Door Hinge
20	Extension Side Trim
21	Trim-Side (Right)
21	Trim-Side (Left)
21	Side Trim
23	WPL 328984
24	BURNER RECEPTACLE KIT
25	Screw
26	24062A, 24262A Models
27	Leg Leveler (4 Req)
28	Rear Slide Block - Lt. or Rt.
29	Screw 8 - 32 x 3/8``
30	Support-Storage Drawer (Lt. or Rt.)
31	Front Slide Block-(Lt. or Rt.)
32	Screw 10-32x17/32``
33	Handle
34	Front Panel-Storage Drawer
35	WPL 295850
36	Bake Element
36	208 Volt
36	240 Volt
37	Storage Drawer
38	Oven Body
39	Vent Tube
40	Seal-Oven Door
41	Insulation-Oven Top & Sides (1 Piece)
42	WPL 331592
43	Clip-Thermotat Bulb (2 Req)
44	Screw 10ABx1/2``
45	WPL 21067
46	Front Frame
47	WPL 331867
48	WPL 326068
49	WPL 326297
50	Support-Broiler Element
51	WPL 334369
51	WPL 334368
51	Broil Element
52	Wire Shield
53	Holder-Oven Light Bulb
54	Oven Lamp Bulb
