S8757^0 02 – OVEN BODY

Products

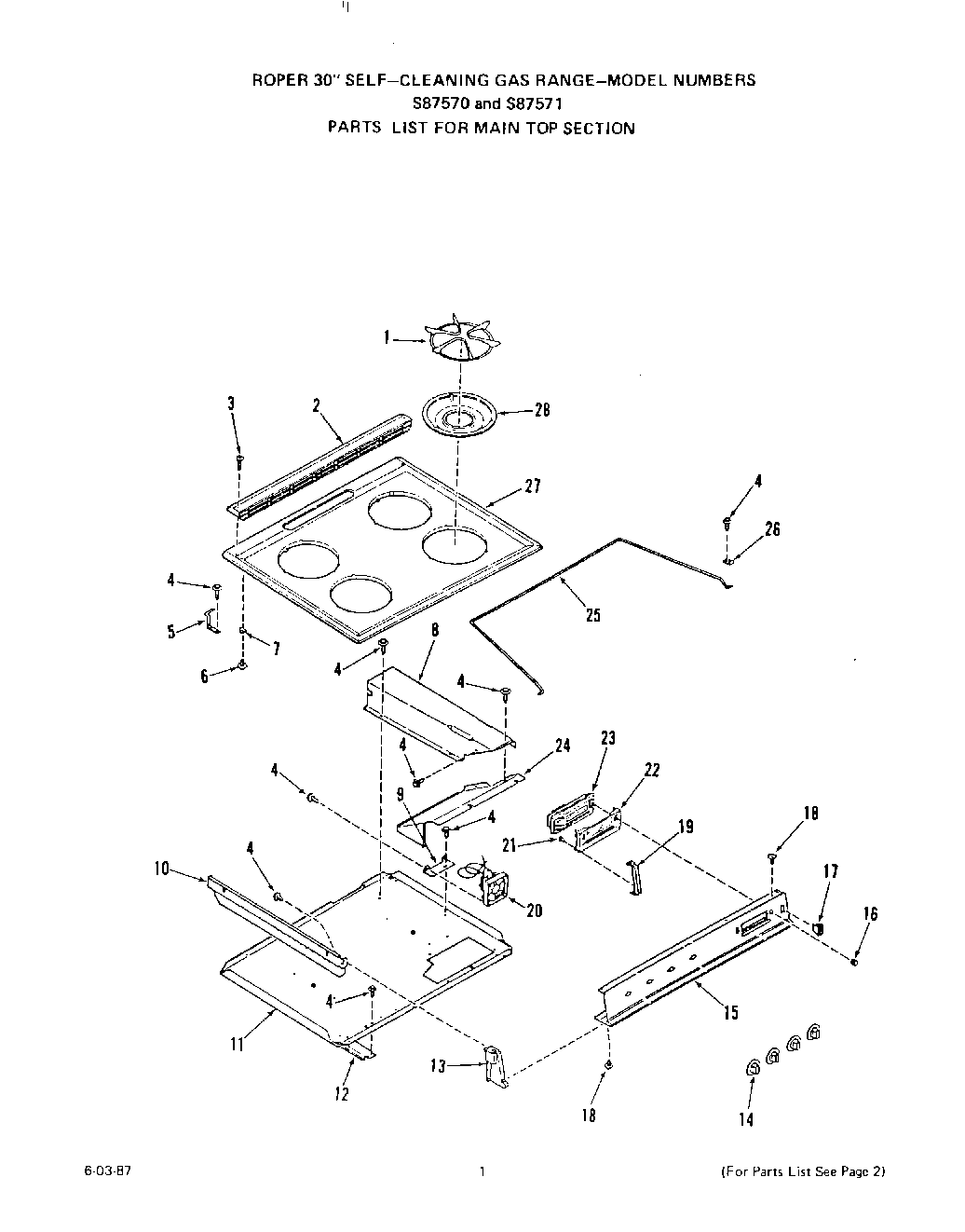

Position	Product
1	Top Grate (4 Req)
2	Cover-Vent
3	Screw 6-32×1/2“
4	Screw 10-16×7/16“
5	Main Top Hinge
5	Hinge-Main Top (Right)
5	Hinge-Main Top (Left)
6	Screw 10-32×5/16“
7	Bracket-Hinge
8	Fan Duct
9	Fan Bracket
10	Extension-Burner Box Side
11	279827 Whirlpool Dryer Drive Motor
12	Burner Box Bottom Stiffener
12	Stiffener-Burner Box Bottom
12	Right
13	End Cap
13	End Cap-Manifold Panel (Right)
13	End Cap-Manifold Panel (Left)
14	Gas Valve Knobs
15	Manifold Panel
16	Knob-Clock
17	Switch-Oven Light
18	Screw-10-32×1/2“
19	Bracket-Clock
20	Fan
21	Screw 6-32×5/16“
22	D97570
22	Clock Lens Asm.
22	Clock Lens Asm
23	D97570
23	D97571
23	Clock/Oven Control
24	Wire Cover
25	Rod-Main Top Support
26	Clamp
27	Main Top
27	Main Top (Almond)
27	Main Top
27	Main Top (White)
28	Aeration Pan (4 Req)
