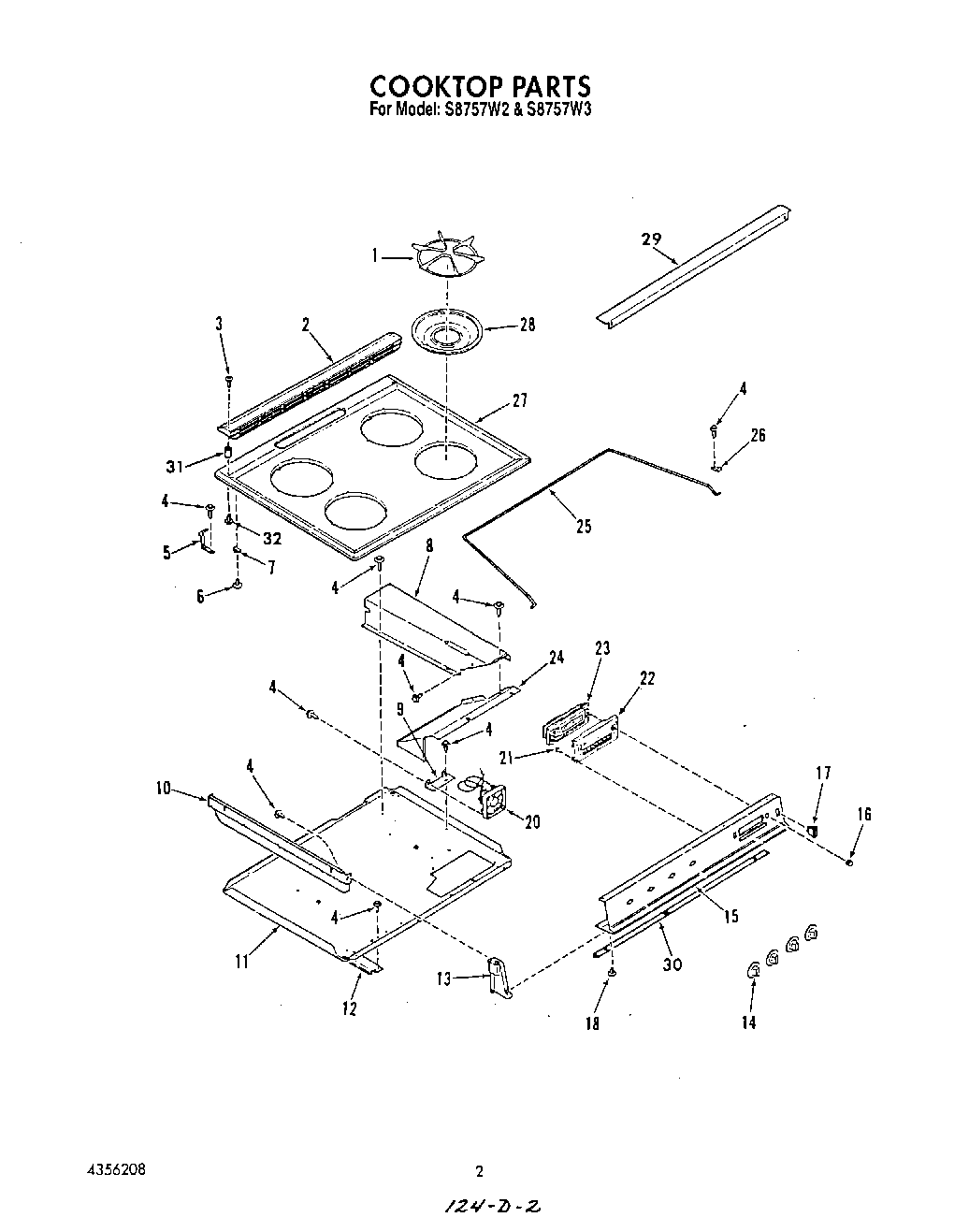

S8757^2 02 – COOKTOP , LITERATUREadmin2025-04-26T11:20:01+00:00S8757^2 02 – COOKTOP , LITERATURE
Products
| Position | Product |
|---|
| 1 | Grate, Burner (4) |
| 2 | Vent Cover |
| 3 | Screw No.6-32x1/2 |
| 4 | W10850756 Whirlpool Screw |
| 5 | Hinge, Cooktop (Left) |
| 5 | Hinge, Cooktop (Right) |
| 6 | Screw, No.10-32 x 5/16 |
| 7 | Bracket, Hinge |
| 8 | Fan Duct |
| 9 | Bracket, Fan |
| 10 | Extension, Side |
| 11 | Bottom, Burner Box |
| 12 | Support, Bottom (Right) |
| 12 | Support, Bottom (Left) |
| 13 | End Cap (Right) |
| 13 | End Cap (Left) |
| 14 | Knob, Gas Valve (4) |
| 15 | Manifold Panel |
| 16 | Knob, Clock |
| 17 | WP4314961 Whirlpool Lite Switch |
| 18 | Screw No.10-32x1/2 |
| 20 | Fan |
| 21 | Screw |
| 22 | Clock Lens Asm. |
| 23 | Clock/Oven Control |
| 23 | Control, Clock, Oven (Model S8757-2) |
| 24 | Wire Cover |
| 25 | Support-Cooktop |
| 26 | Clamp |
| 27 | Cooktop (Chrome) |
| 27 | Cooktop (White) |
| 27 | Cooktop (Almond) |
| 28 | Aeration Pan |
| 29 | Filler Trim |
| 30 | Barrier |
| 31 | Spacer, Vent Cover |
| 32 | Screw 6-32x5/16 |
| 32 | Model S8757-3 |
| 32 | Model S8757-3 |
| 32 | Model S8757-2 |
| 32 | Model S8757-2 |
