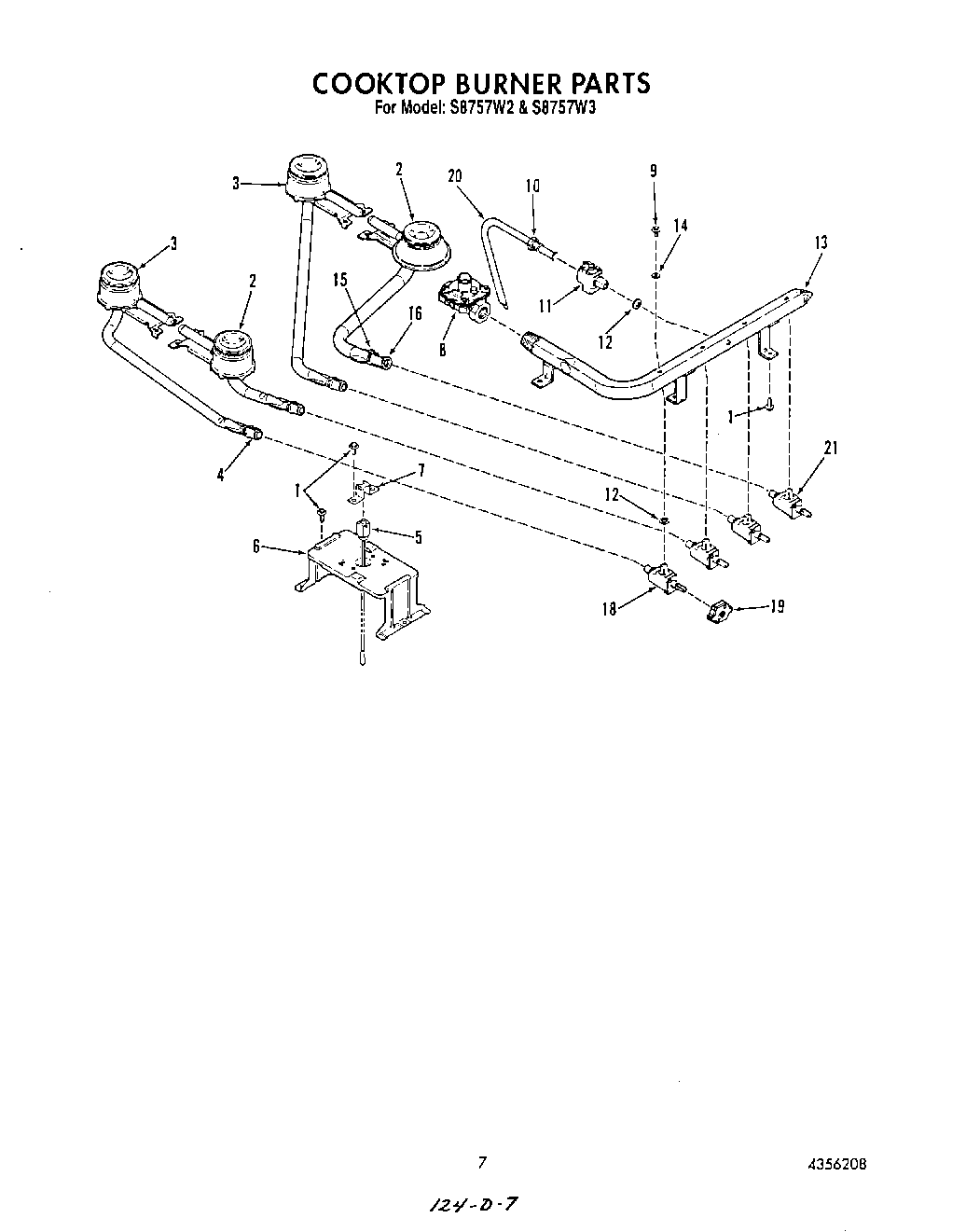

S8757^3 05 – COOKTOP BURNERadmin2025-04-26T11:20:30+00:00S8757^3 05 – COOKTOP BURNER ProductsPositionProduct1SCREW2Top Front Burner (Right)2Top Front Burner (Left)3Top Rear Burner (Right)3Top Rear Burner (Left)4Air Shutter (3)5Spark Igniter (Right)5Spark Igniter (Left)6Burner Support Rt/Lt7Bracket-Ignitor (Lt or Rt)8Regulator-Pressure9Screw, Mounting-1 Each-illus. 10 & 2010Nut, Inverted 3/811Valve, Shut Off12Seal, Valve-1 ea. Illus. 10 & 2013Manifold Pipe14Seal (for No.26)15Screw-Adjustment, (Air Shutter)16Air Shutter18Gas Valve-Lt Front Lt/Rt Rear19WP4330739 Whirlpool Igniter Switch20Tubing 3/8 (Shut-Off Valve to Control Valve)21Gas Valve, Rt Front
