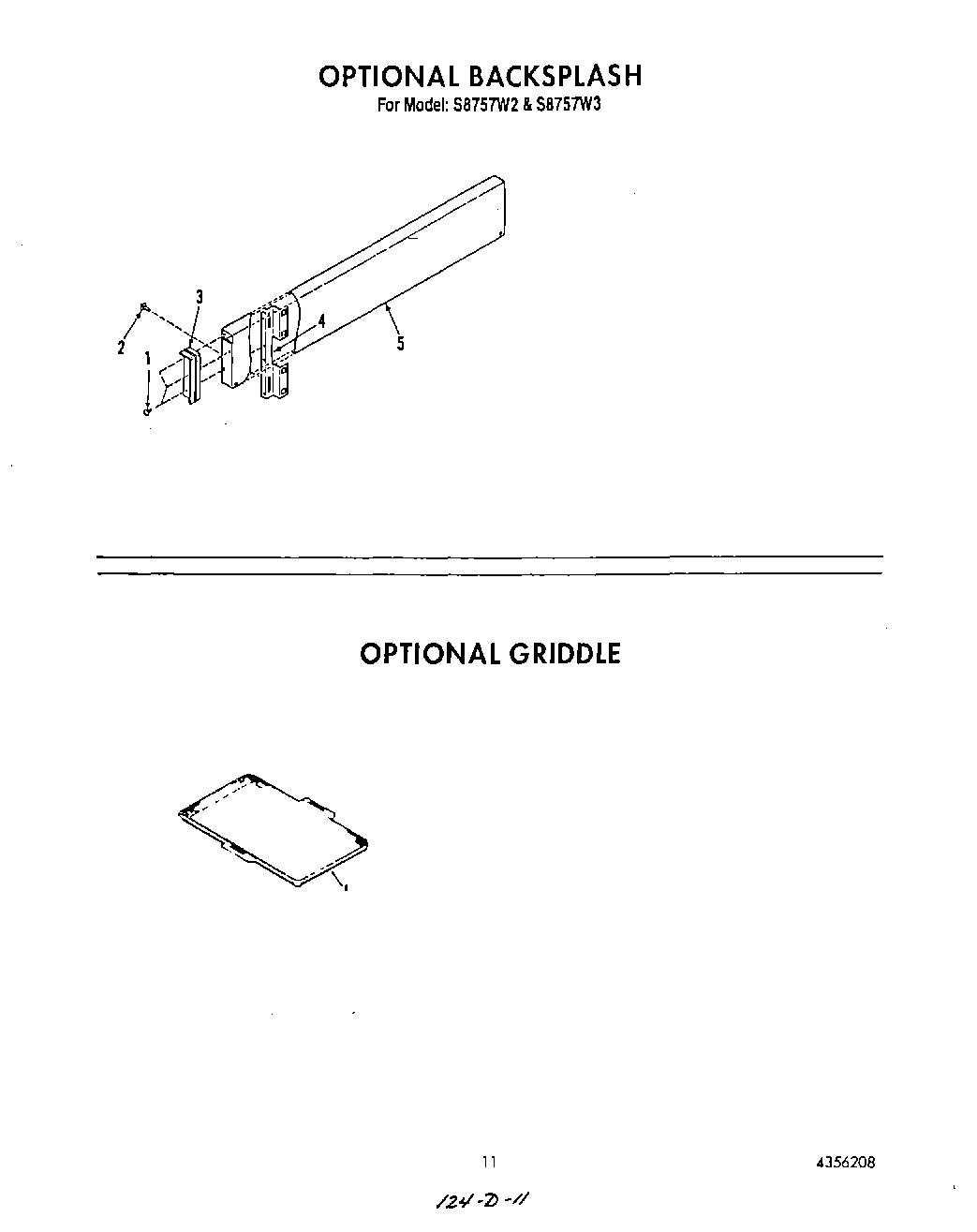

S8757^3 08 – OPTIONAL BACKSPLASH , OPTIONAL GRID

Products

PositionProduct
xParts Not Shown On Illustration
xInstallation Instructions
1Wire Harness- Clock/Oven Control
1Wire Harness (Motor Thermostat, (Mdl. S8757-2))
1Set-On Griddle
1Wire Harness (3/16“)
1Wire Harness (Flag Terminal Faston Terminal)
1Sensor
1Screw
1WP285432 Whirlpool Terminal
2SCREW
3Cap, End
4Support
5Backsplash
