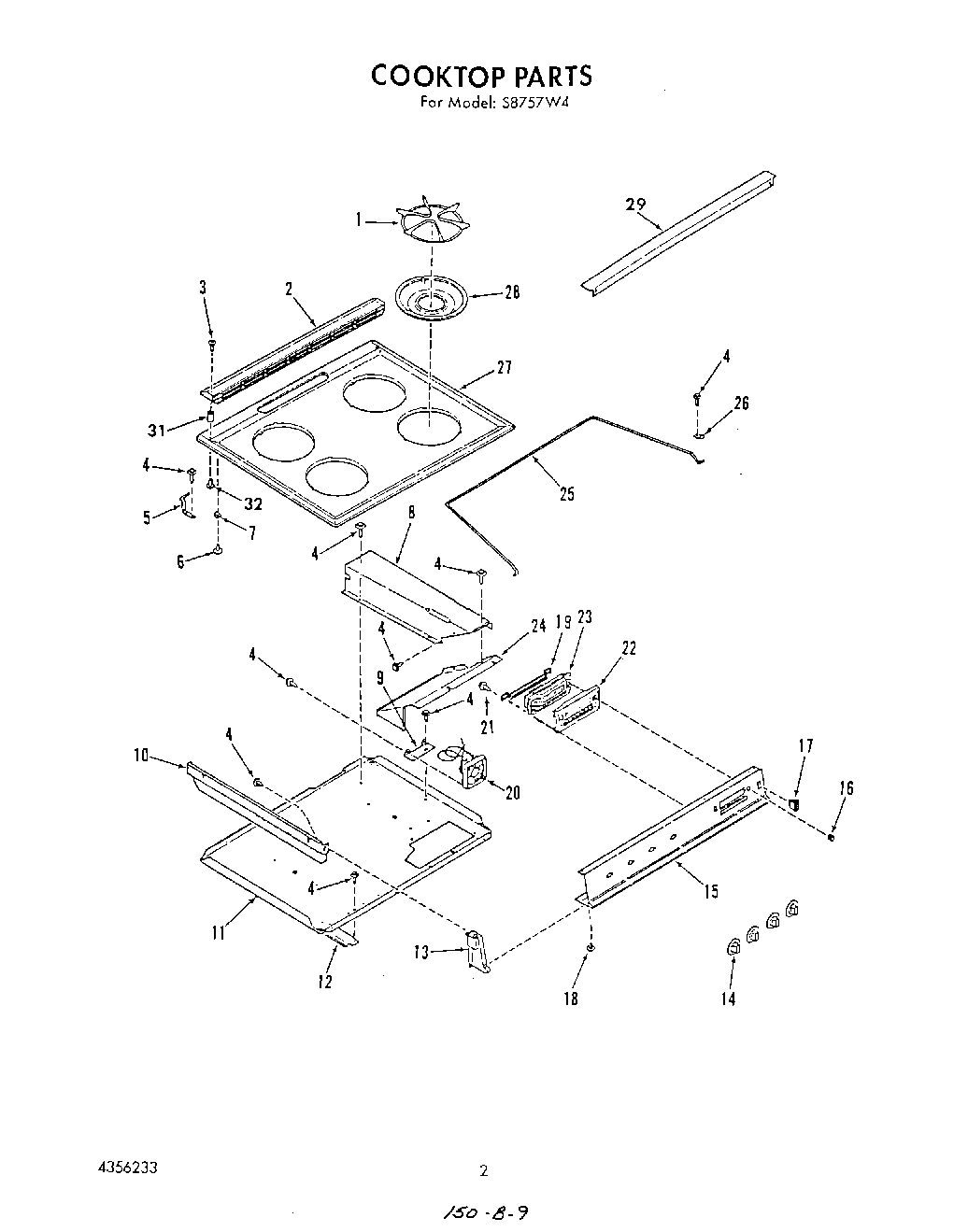

S8757^4 02 – COOKTOP

S8757^4 02 – COOKTOP

Written by

in

S8757^4 02 – COOKTOP

Products

PositionProduct
1Grate, Burner (4)
2Vent Cover
3Screw No.6-32×1/2
4W10850756 Whirlpool Screw
5Hinge, Cooktop (Left)
5Hinge, Cooktop (Right)
6Screw, No.10-32 x 5/16
7Bracket, Hinge
8Fan Duct
9Bracket, Fan
10Extension, Side
11Bottom, Burner Box
12Support, Bottom (Left)
12Support, Bottom (Right)
13End Cap (Right)
13End Cap (Left)
14Knob, Gas Valve (4)
15Manifold Panel
16Knob, Clock
17WP4314961 Whirlpool Lite Switch
18Screw No.10-32×1/2
19Brace, Clock Stiffener
20Blower, Fan
21Screw
22Clock Lens Asm.
23Clock/Oven Control
24Wire Cover
25Support-Cooktop
26Clamp
27Cooktop (White)
27Cooktop (Almond)
27Cooktop (Chrome)
28Aeration Pan
29Filler Trim
31Spacer, Vent Cover
32Model S8757-3
32Screw 6-32×5/16
32Model S8757-3
32Repair Parts List
